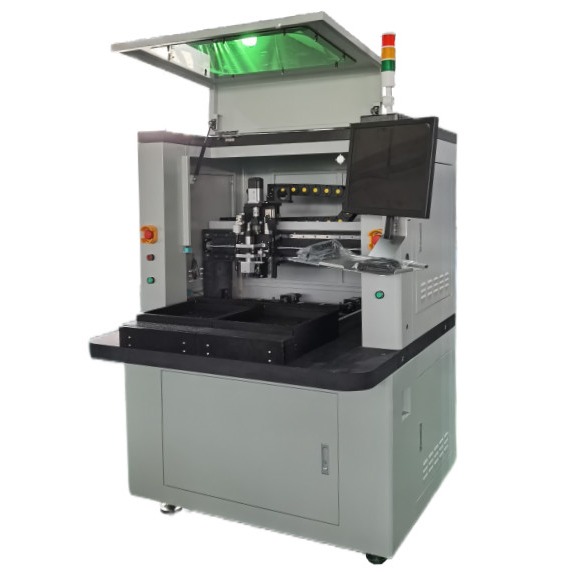

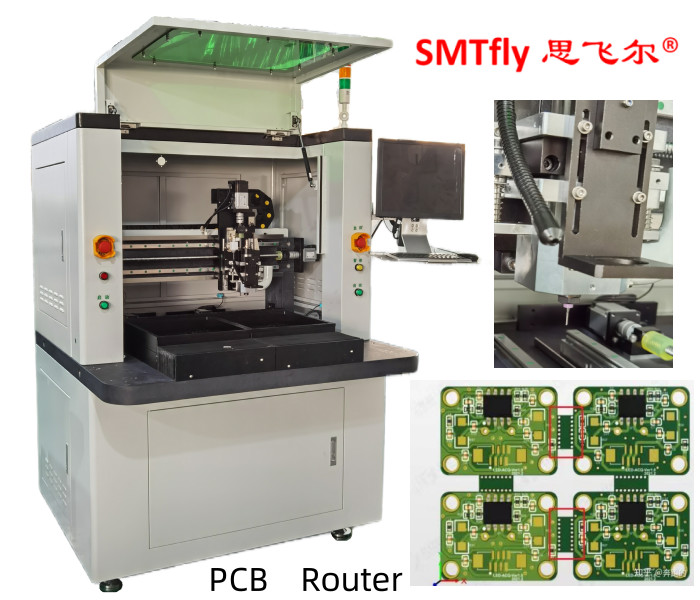

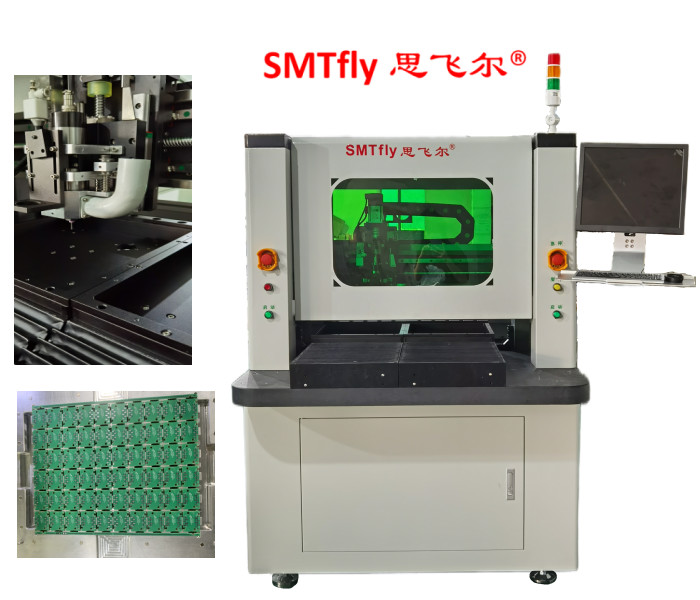

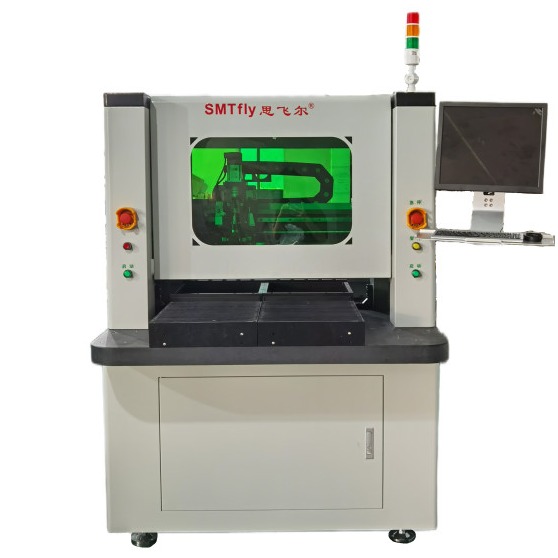

PCB Depaneler PCB Routing Machine for Milling Joints FR4/CEM/MCPCB Boards
PCB Depaneler Specification
| Model | CW-F01-S |
| Standard working area | 350*350mm |
| Power | 220V, 4.2KW |
| Manipulator Repeatability | ±0.02mm |
| Resolution | ±0.01mm |
| Board Positioning | Dual workstation with nest fixture or pin fixture |
| Panel Location | Located by tooling holes or edges of PCB |
| Loading | Manual |
| Unloading | Manual |
| Panel Size | 450*350mm |
| Panel Thickness | 0.5-3.5mm |
| Spindle motor | 0.5kW Morning Star Spindle |
| Tool Change | Manual |
| Dust filtration system | 3KW Vacuum Cleaner |
| Vision system | High resolution CCD video camera |
| Programming | Vision assisted point to point manual teaching |
| Editing Function | Dry run vision assisted / test run mode |
| Machine weight | 500kgs |
| Machine dimension | 113*140*108cm |
PCB Depaneler Description
This is a new range of Router Machine. It is a stand alone router machine specially designed to route (depanelize) printed circuit board assemblies (PCBA) into individual assemblies. The system boasts being the worlds fastest router with a cycle rate of 1.5 seconds per tab.
It can accommodate larger PCBs in its two table configuration with maximum panel size of 450mm x 350mm.
A new Graphical User Interface (GUI) software provides user friendly "visual" programming for rapid and accurate online programming.
Gerber files could be imported into the software for easier programs.
Our Advantage :
1. Pcb depanelizer original manufacturers, price concessions
2. Promise day technical support services
3. Limit the handling of complaints, half an hour back to customers
4. Depanel Experts, the provision of professional PCB sub-programme
5. Reliable machine maker,we get Experts--15,each one got over 6 years experience,equipment quality will be satisfying.
More information welcome to contact us:
Email: sales@dgwill.com
Wechat/Skype:+86 18166146357
24 Hours Service,Welcome to Inquiry!!
