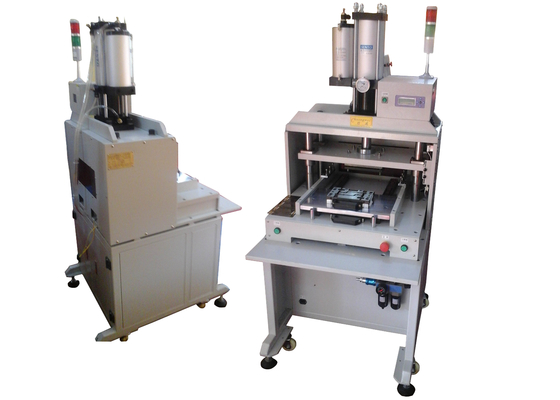

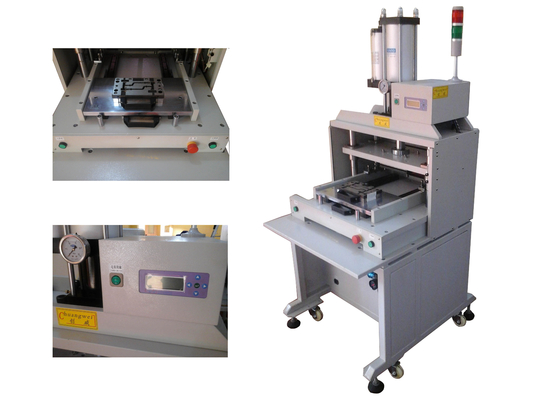

Automatic Pcb Punching Machine Separation Fpc with Punching Die
Specification :
| Model | CWPE |
| Machine size | 73*81*170 cm |
| power supply | 110 / 220 V |
| Depression (pa ) | 0.45-0.70 |
| Machine Weight | 530 / 700 kg |
| Cutting precision | ±0.05mm |
| Output | 8T |
| Working pressure | 0.45-0.7Mpa |
| Cycle time | 7.5s/cycle |
| PCB/FPC thickness | 0.08-3.5MM |
| PCB/FPC material | FPC, FR1, FR4, CEM-1, CEM-3, MCPCB |
3. Features:
1) Depaneling PCB/FPC by means of punching dies, to avoid micro-cracks caused by manual.
2) Die toolings is changeable
3) Easy set up of punching dies
4) Loading and unloading PCBs is convenient
5) Easy operation, has safe protection system
6) Air cylinder driven
Installation and Adjustment:
1) Working steps:
A. Connect gas source
B. Press ,connect power
2) Working steps:
A. Put PCB/FPC/MCPCB to fixed position of lower mold
B. Press twins start button by 2 hands at a time
3) Take down finished products, put PCB/FPC/MCPCB to start next repeated project

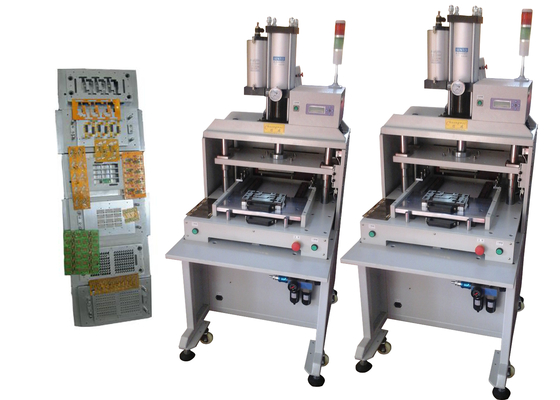

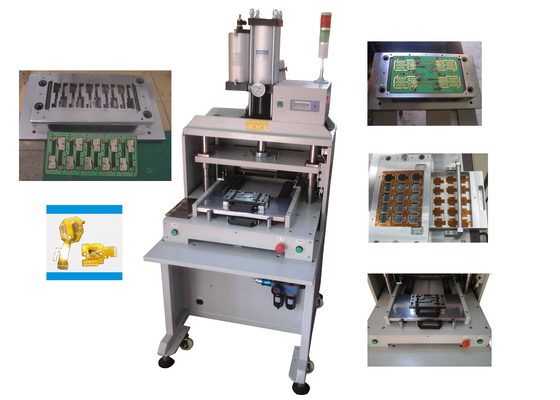

Punching die :
