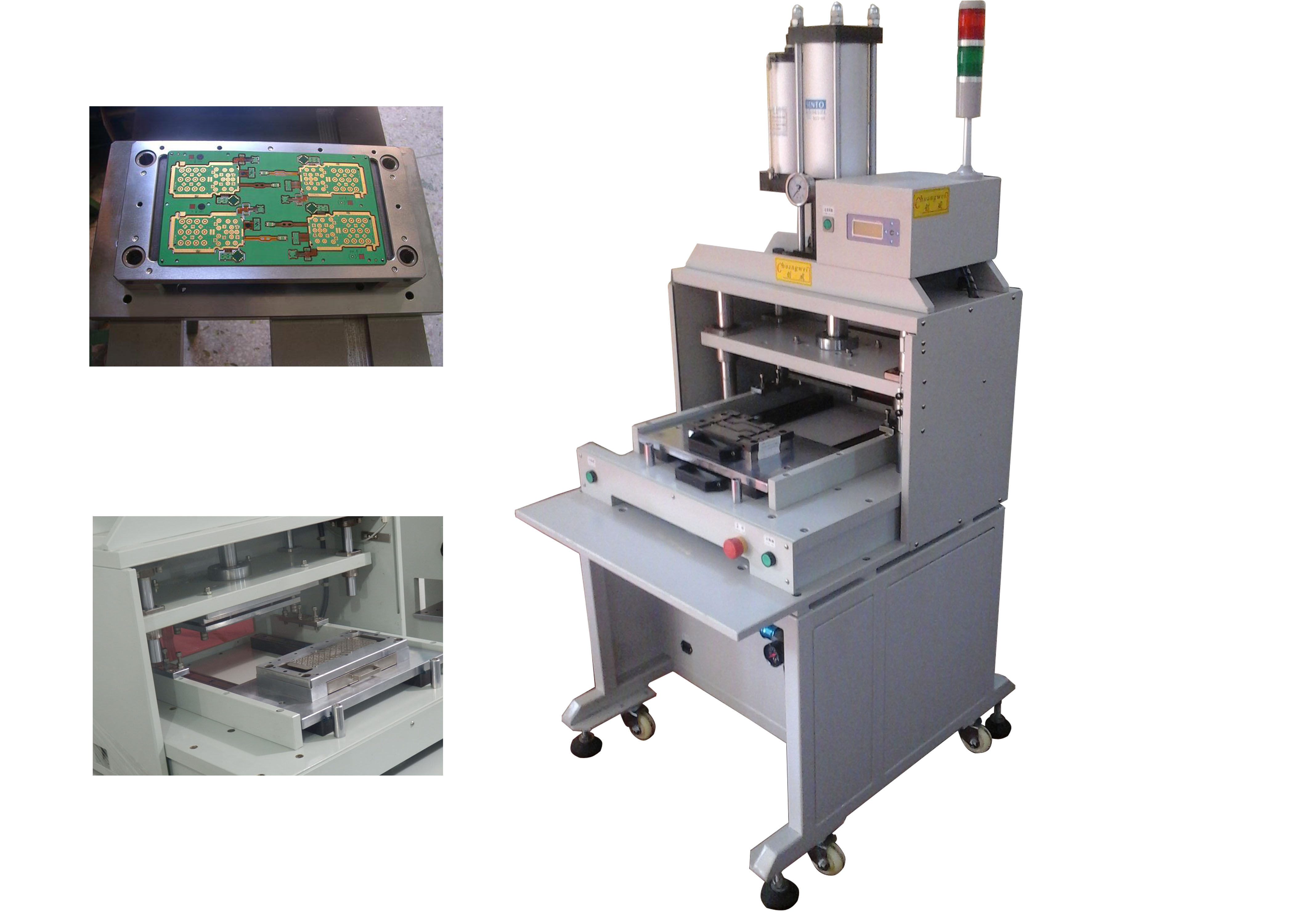

Moveable PCB Punch FPC Punching Machine depaneling Customer Structural precision
1. Depaneling PCB/FPC by means of punching dies, to avoid micro-cracks caused by manual.
2. Cast iron framework for rigidity. Punching dies are changeable.
3. Easy set up of punching dies.
4. Moveable lower die for easy loading and unloading PCB punch die/FPC die/PCB punch mold/FPC mold.
5. Perfect cutting effect
Specification:
|
Model |
SMTfly-PE |
|
Delivery (Day) |
1-7 days after order confirmed |
|
Ability (Set) |
500sets/year |
|
PCB Area (mm) |
330*220(could be customized) |
|
Power Supply (v) |
as customers' requested |
|
Depression (Pa) |
0.45~0.7 |
|
Size (mm) |
730*810*1700 |
|
Contribute (Tone) |
3~30(could be customized) |
|
Weight (Kg) |
530/700 |
|
Application |
PCB & FPC(point connection) |
Detailed Product Description:
1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)
2 .Other spare parts for punching molding
3. Mold make of SKH-11 Steel, Blade is SKH-9(From Japan),Rigorous Job!!!!
Technical characteristics:
1. Structural precision, the load evenly, to eliminate internal stress
2. Safe, easy to operate
3. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board) and other spare parts for punching molding industry
Feature:
FPC /PCB punching (SMTfly-PE)
1.Depaneling PCB/FPC by means of punching dies, to avoid micro-cracks caused by manual.
2.Cast iron framework for rigidity. Punching dies are changeable.
3.Easy set up of punching dies.
4.Moveable lower die for easy loading and unloading PCB punch die/FPC die/PCB punch mold/FPC mold.
Our Advantage :
1.Pcb depanelizer original manufacturers, price concessions
2.Promise day technical support services
3.Limit the handling of complaints, half an hour back to customers
4.Depanel Experts, the provision of professional PCB sub-programme
5.Reliable machine maker,we get Experts--15,each one got over 6 years experience,equipment quality will be satisfying.
