PCB V Cut Machine PCBA Assembly DE Panel Experts Pneumatically Driven
All-purpose V-CUT PCB Separator

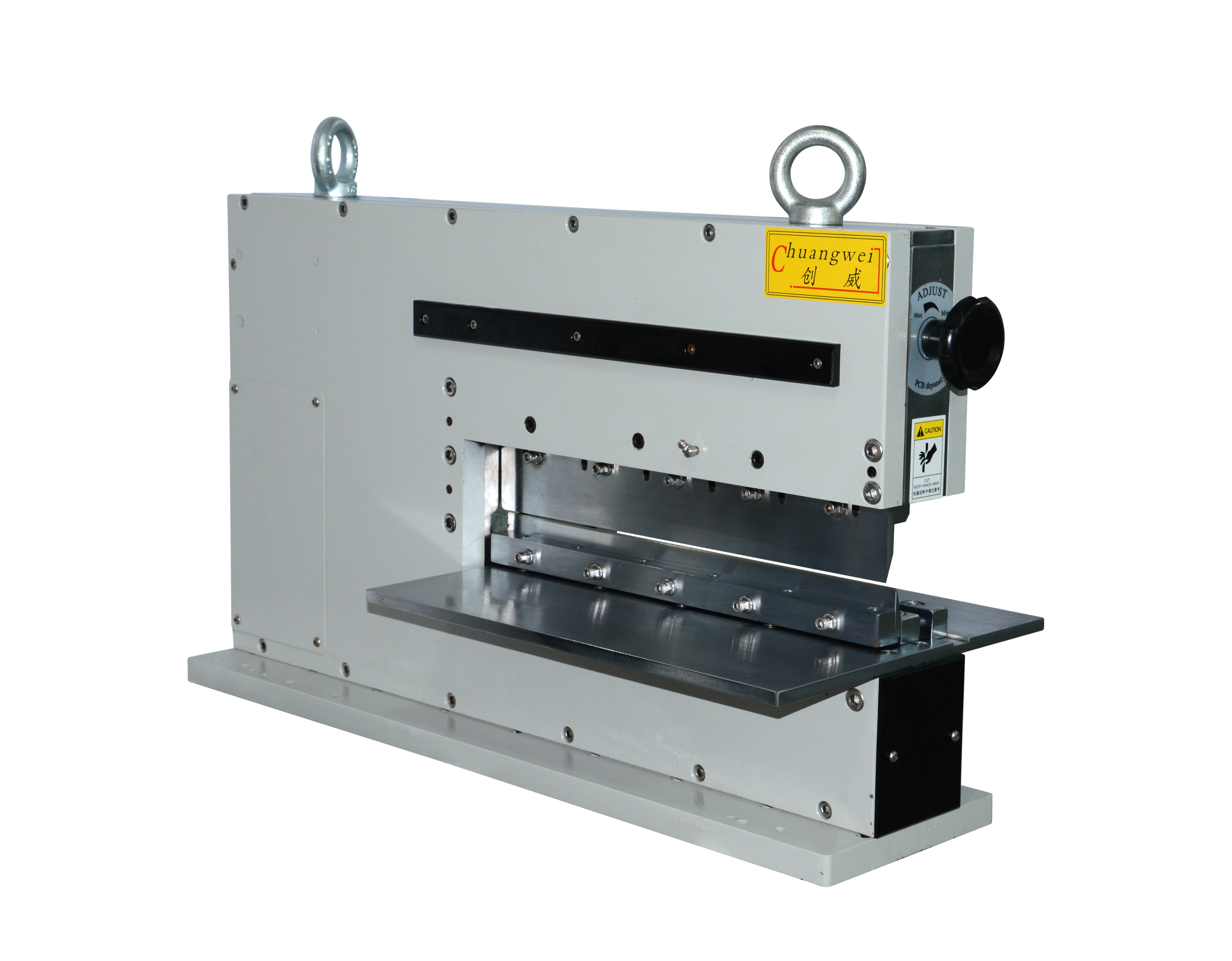

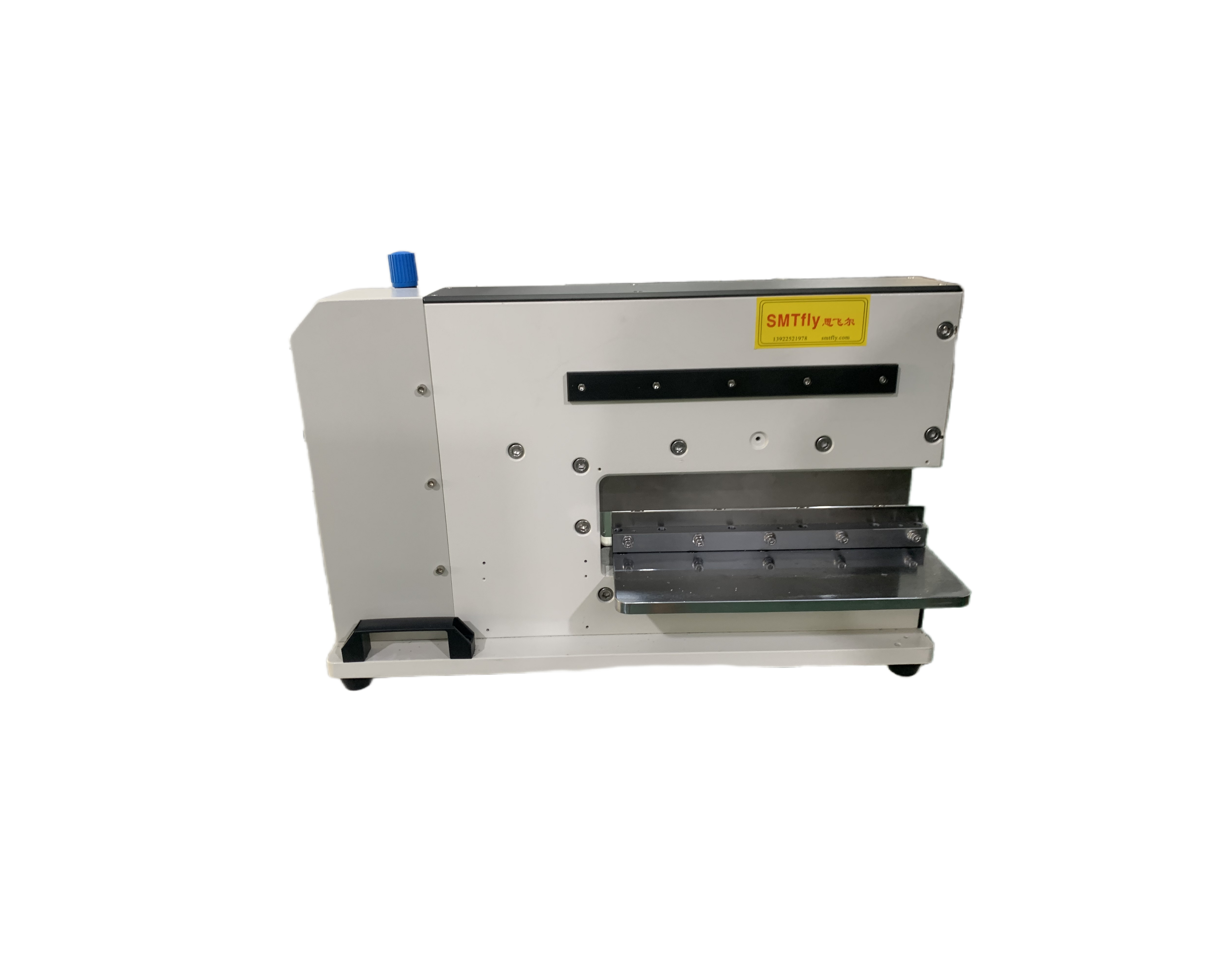

Straight Knife PCB separator machine- Pneumatically driven and electric control
The machine is pneumatically driven and has electric control. The straight knife-type separator machines were designed to separate pre-scored panel boards carefully, without bending or tension stress. Evensensitive Components like ceramic capacitors will not be damaged by the separate process. Due to the special design of the knives also boards with high components placed close to the edges can be separated safely. Based on a proven method of separating, wedge-shaped knives are used to cut the panels within the groove. This enables boards of less than 1 mm thickness to be separated safely and without creating stress.
CWVC-2 pcb depaneling machine Features:
1, No vibration during the process to prevent damage to precise PCB
2, The Gap for insertion of the board can easily be adjusted by means of the adjusting knob on the top side of the machine, low friction design is applied.
3, Lower knife height adjustable, the front and rear portion can be adjusted separately. No thin plates are required after re-sharpening the knife.
4, Operation and maintenance can be done also by unskilled personnel
Pcb cutting length: 330
Size:700x210x400
Cutting thickness(mm)0.3x3.5
Weight:165kg
PCB Depaneling Machine Advantage:
1. PCb cutting original manufacturers, with competitive price;
2. Day technical support services;
3. Limit the handling of complaints, to half an hour back to customers;
4. DE panel Experts, the provision of professional PCB sub-programmer.
