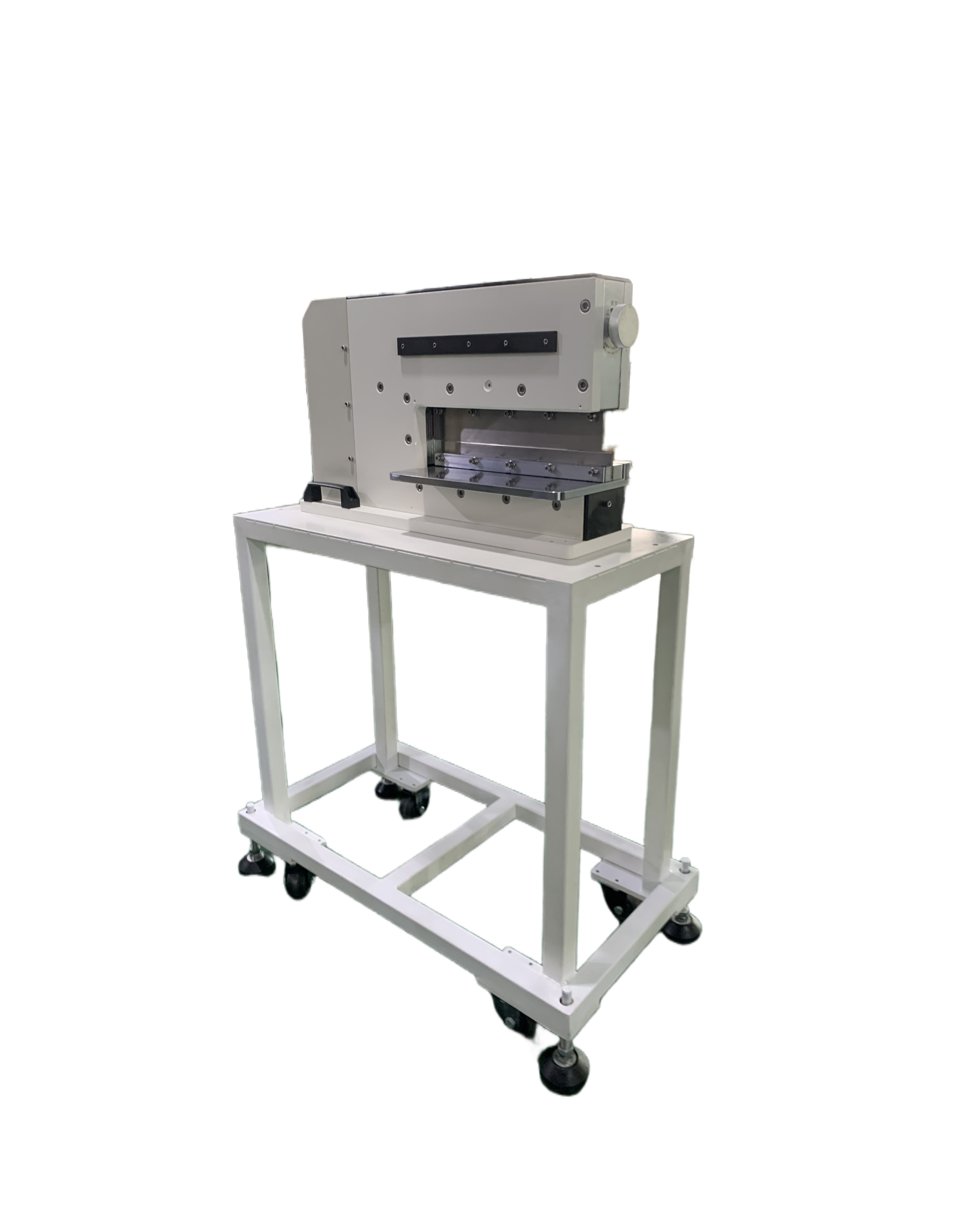

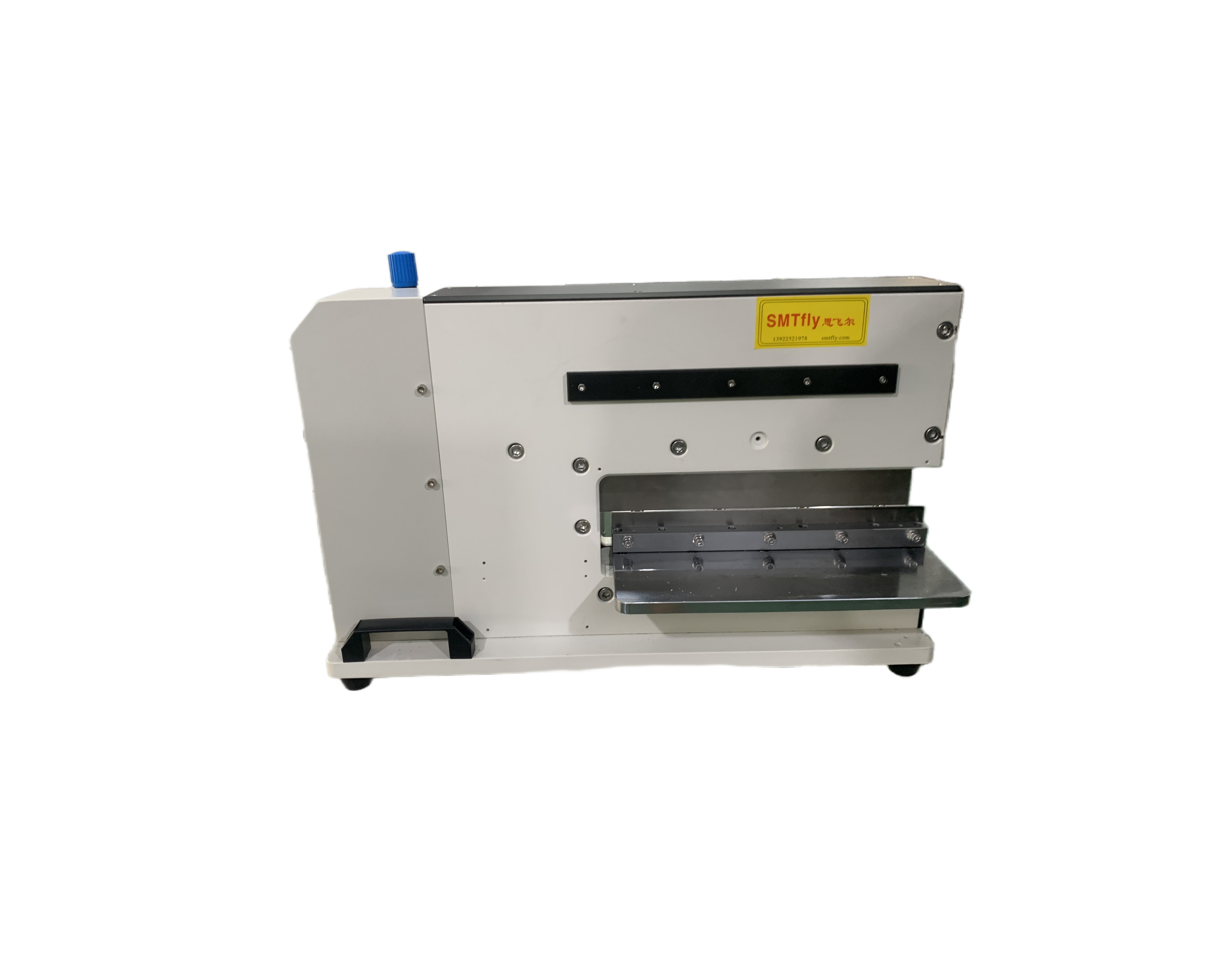

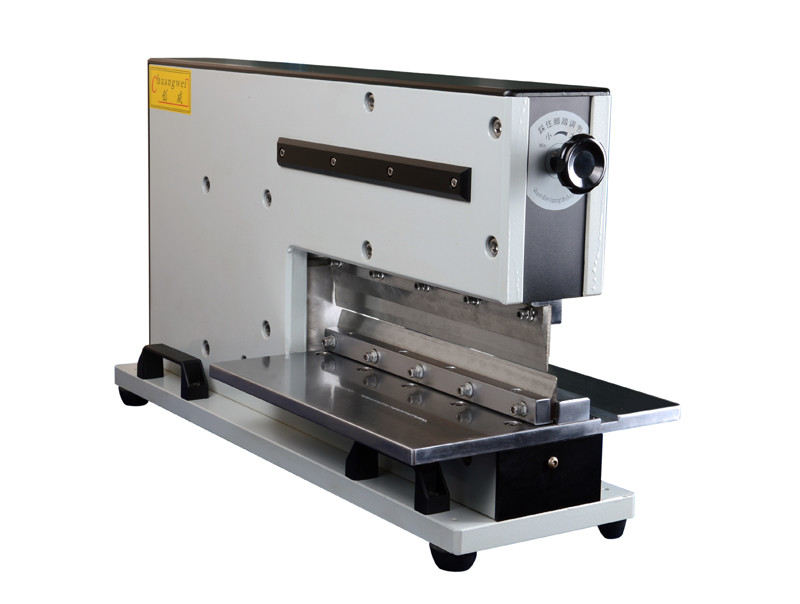

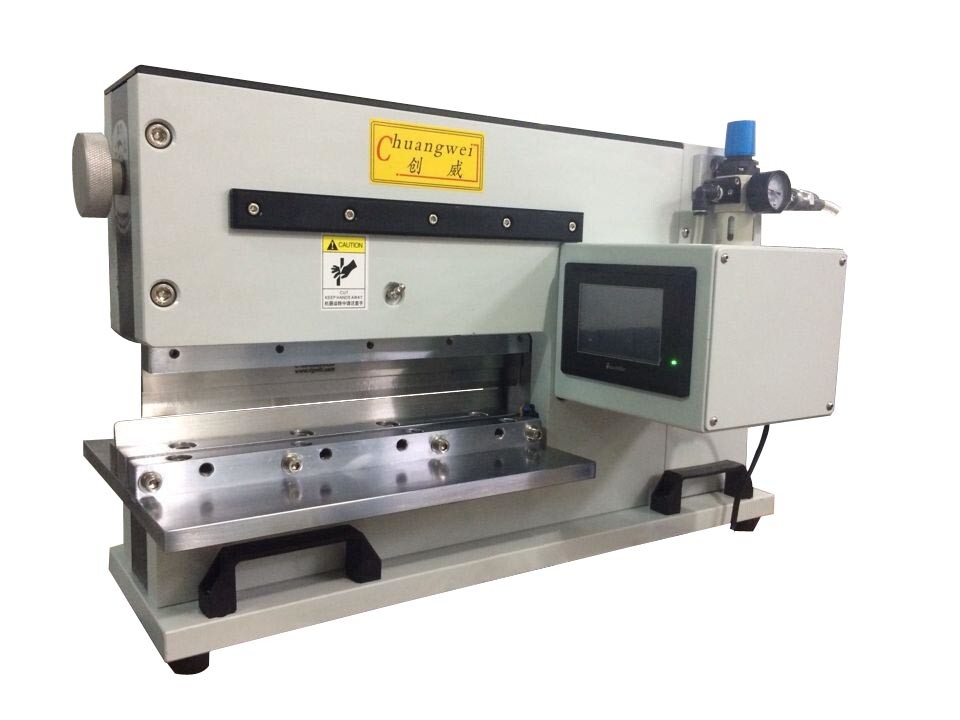

V-cutting PCB Depaneling Machine with Linear Blade with High Speed Steel
PCB V-Cut Machine With Linear Blade With High Speed Steel,330mm
Quick Detail:
1. Pneumatically driven and electric control , sample design. There have sensor device in the machine ,
cuttting board one time with lowest cut stresses . SMTfly-330 apply for separate precise SMD PCBA or
thin plates.
2. The straight knife type separator machines were designed to separate prescored panel boards carefully,
without bending or tension stress.
Even sensitive SMDcomponents like ceramic capacitors will not be damaged by the separate process,
improve products quality .
3. Due to the special design of the blade ,boards with high components placed close to the edges can be
separated safely. Based on a proven method of separating, wedge-shaped knives are used to cut the
panels within the groove.
This enables boards of less than 1 mm thickness to be separated safely and without creating stress.
Feature:
●Separates boards up to 3.5mm thick
●Shears boards safely with parts as close as 0.5mm to the score line,including ceramic capacitors
●Operator foolproof! Panels cannot be inserted into the knives except on the score line
●Pneumatically driven
●Handles high components up to 70mm
●Bow waves that can occur with round knives are avoided
●Easy adjusting of distance between knives
●Large LCD display with capacity counter function
Specifications:
|
Model: |
SMTfly-330 |
|
Separation Length |
330mm |
|
Machine Size: |
620mm x 230mm x 400mm |
|
Cutting thickness: |
0.3-3.5mm |
|
Machine Weight: |
165kg |
Competitive Advantage :
1. SMTfly-330 Pcb depanelizer original manufacturers, price concessions
2. Day technical support services
3. Limit the handling of complaints, half an hour back to customers
4. Depanel Experts, the provision of professional PCB sub-programme
