Pre-scored Pcb Separation Machine Cutting Length Up To 480 MM

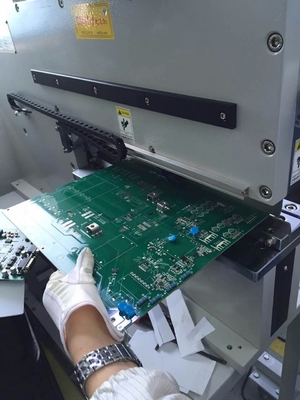

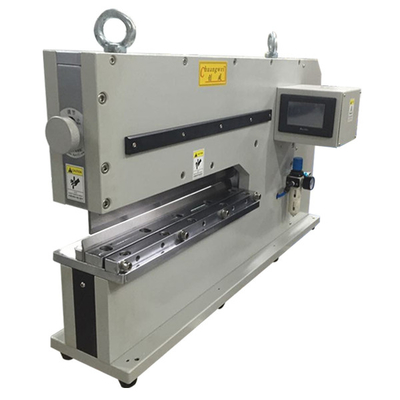

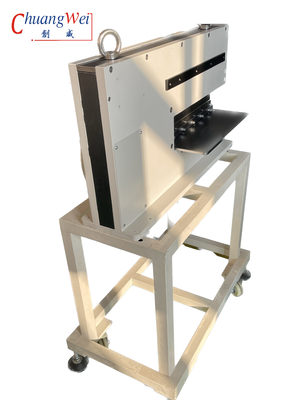

Pre-scored PCB Depaneling machine, PCB Separator: Pneumatic Type CWVC-480
FEATURES:
1 . The machine was designed to depanel pre-scored panelboards carefully, without bending or tension stress.
2 . Even sensitive SMD-Components like ceramic capacitors , will not be damaged by the depaneling process, or thin boards even to 0.3mm can be worked safely.
3 . Due to the special design of the knives also boards with high components placed close to the edges can be depaneled safely. Based on a proven method of depaneling , wedge-shaped knives are used to cut the panels within the groove.
4 . This enables the boards less than 1mm thick to be separated safely and without creating stress. This machine is pneumatically driven using standard parts. It is a noiseless operation with none of the usual compressed air noises. Rigid design without vibration in operation.

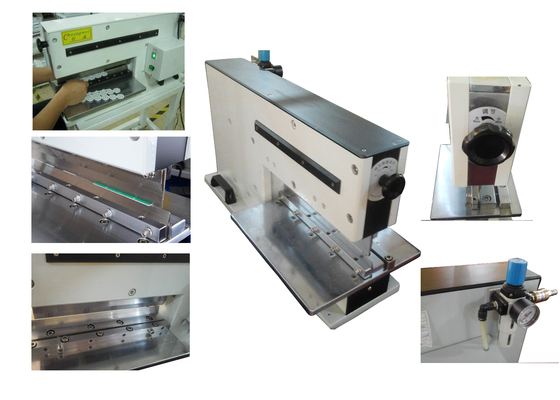

5 . The PCB with a sensitive SMD capacitor or thin board even to 0.3mm can be worked safely. The gap for insertion of the board can easily be adjusted by means of the adjusting knob in front of the machine. Gap for insertion of the board can easily be adjusted by means of the adjusting knob in front of the machine
6 . Depaneling process without vibrations
7 . Pneumatic control placed in a separate unit for easier maintenance.
Specifications:
| Model | CWVC-480 |
| Max Separation Length | 480 mm |
| Pcb Separator Machine Size | 960×425×350 mm |
| Cutting thickness | 0.3-3.5mm |
| Machine weight | 300 kg |
