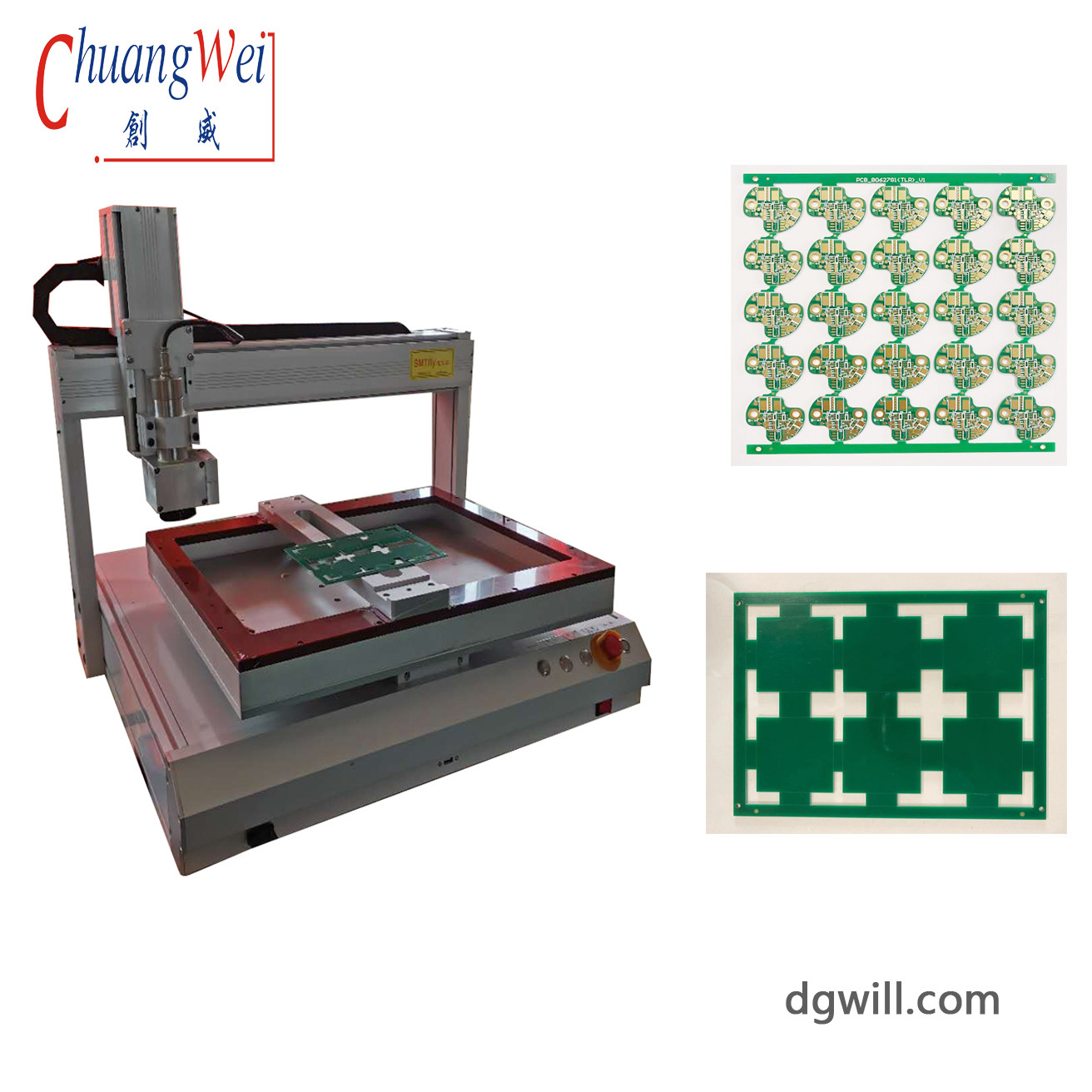

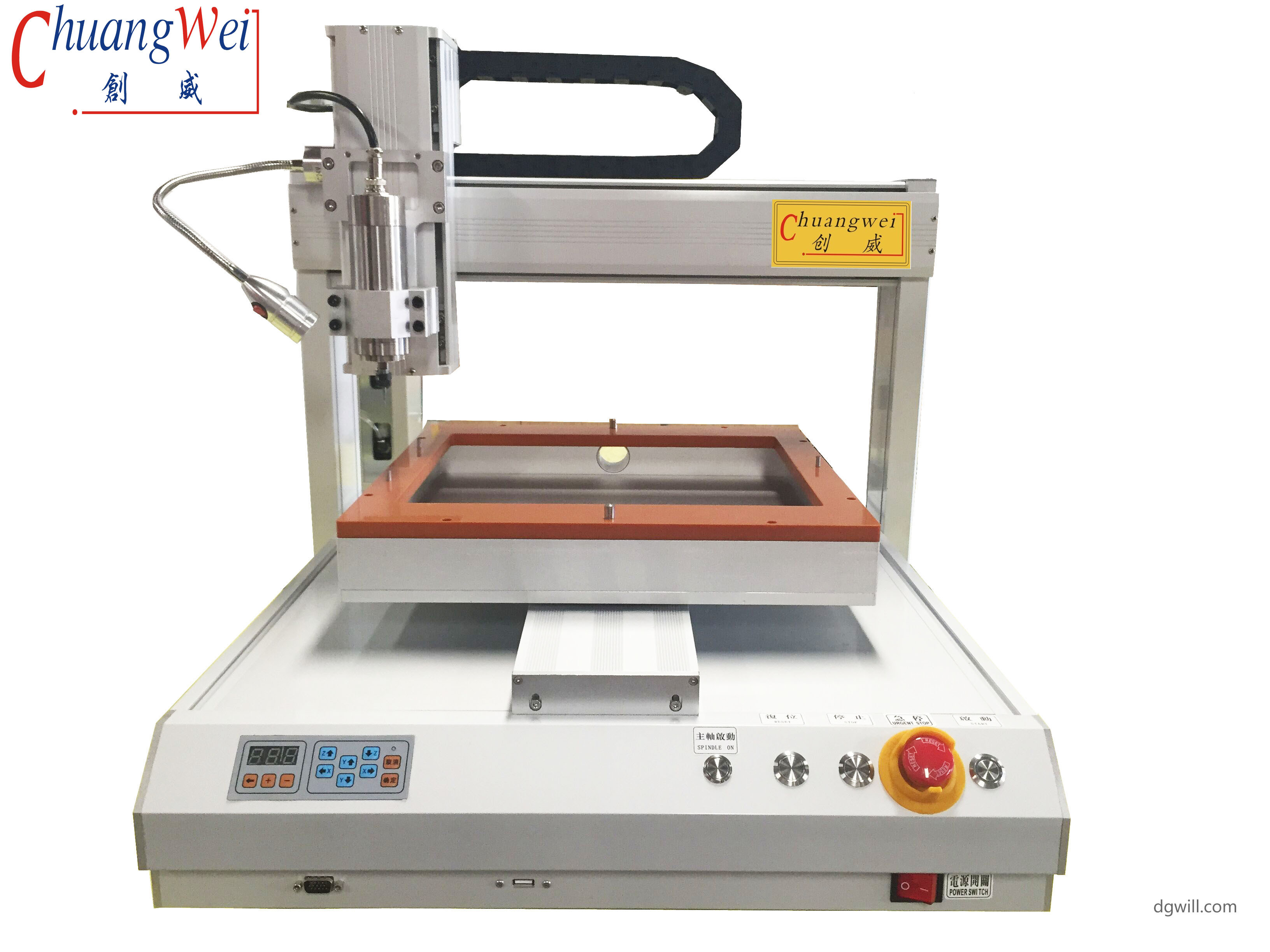

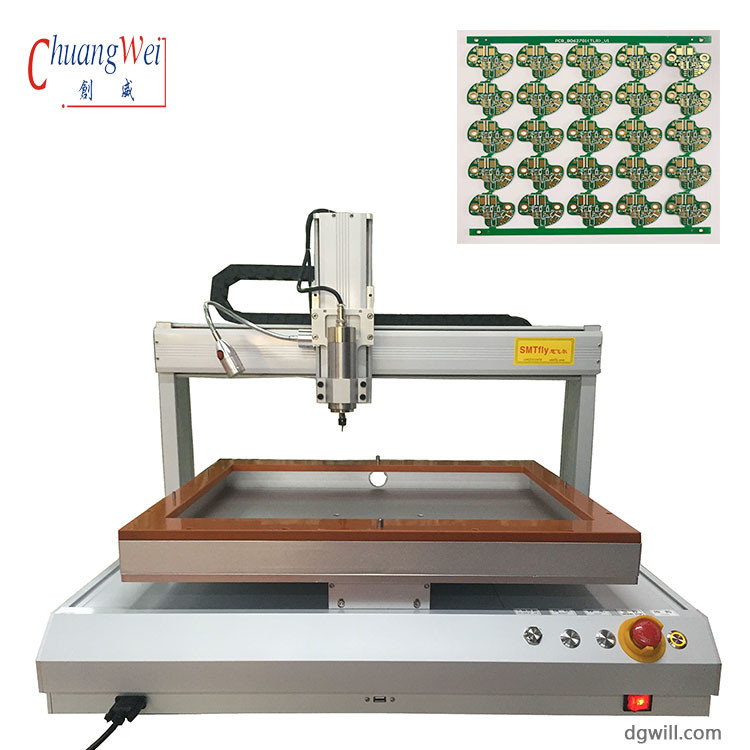

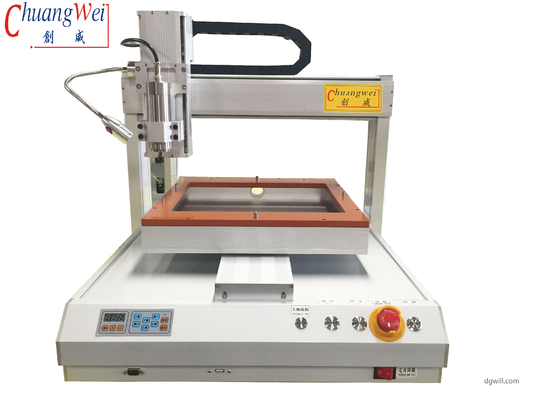

PCB Router PCB Depanelizer Desktop Easy Programming by Teaching Pedal
Specification:
Motor drive system |
Servo/stepper motor |
Spindle speed |
50000r/s |
Cutting performance |
500mm/s |
Drive system repeatability |
±0.02mm |
Cutting speed Resolution |
±0.01mm |
Configuration |
X, Y, Z 3 axis Max 100mm/S(depends on PCB material and cutting quality) |
Repeatability |
<0.1mm |
PCB positioning fixture load/unload |
Manual |
PCB thickness |
0.6-3.5mm |
Working area |
650*450mm |
Spindle motor power |
0.5KW |
Spindle motor speed |
50000r/m |
Spindle motor cooling |
Air-cooled |
Machine dimension |
980*580*615mm |
Weight |
135KG |
Security settings |
emergency stop switch |
●Desktop single bench cutting machine, Speeds of up to 100mm/s,
positioning speed 500mm/s
●Cut continuously without interruption during loading and unloading
●High-quality shaft system allows the system to quickly ramp,
reduce the period, Improve productivity, and maintain high
precision
●Use high-quality hardware to ensure high rigidity and high
performance All screws are protected from dust and dirt from entering
to improve the life and performance of the shaft
●Avoid tin cracks and component damage caused by manual folding;
●The operation is simple When changing the model, you only need to
adjust the cutting program and change the fixture to start production;
