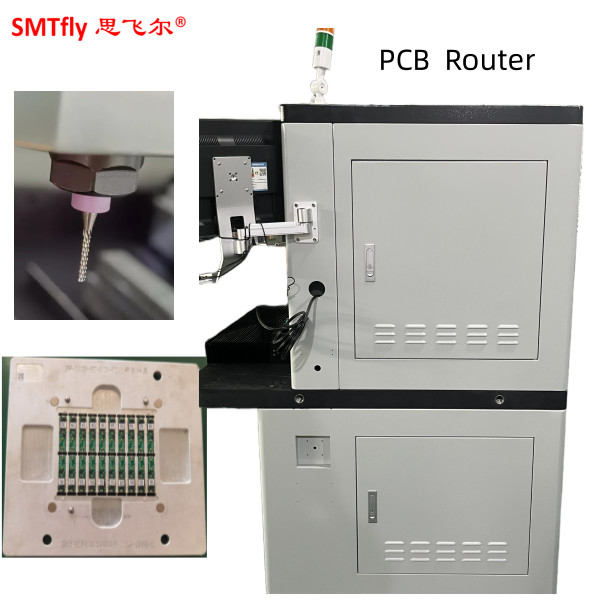

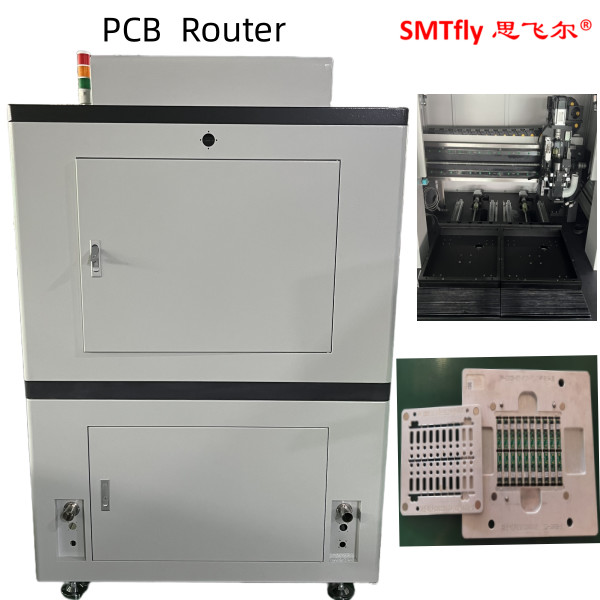

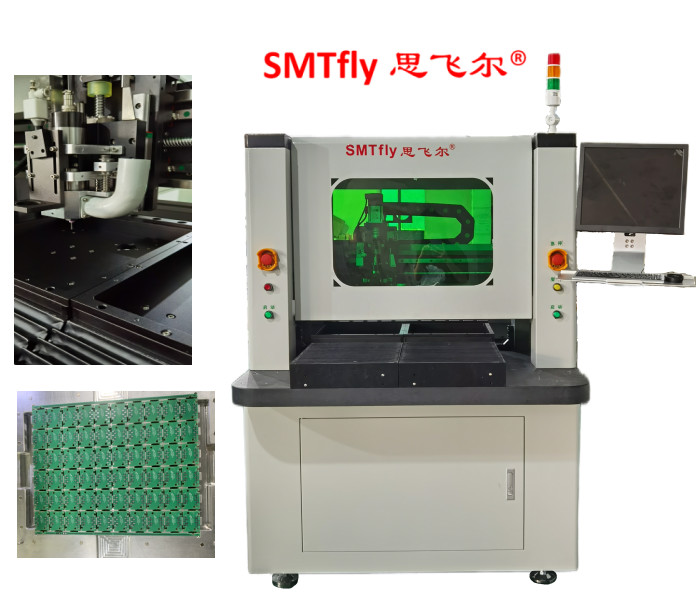

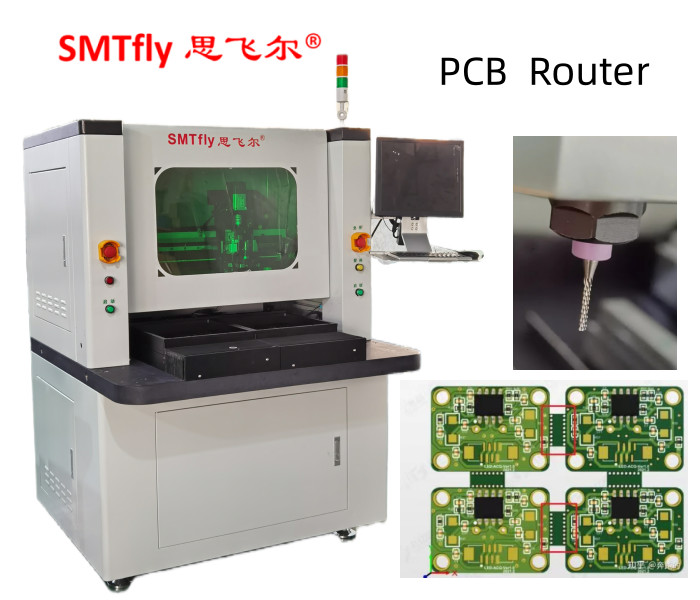

0.01mm Precision PCB Router Machine-PCB Depanelizer Equipment
For milling joints connection, PCB boards depaneling.
Used for all electronic industries covering power supply, computer, mobile phone, household appliance, automotive electronics, wires & connectors...
1. Solution for stress-free depanelization;
2. Fixture-based highly efficient dust vacuum system;
3. Clean and precise depanelization for densely populated PCBs;
| Model | CW-F04 |
| Standard working area | 450*350mm |
| Power | 220V, 4.2KW |
| Manipulator Repeatability | ±0.02mm |
| Resolution | ±0.01mm |
| Board Positioning | Dual workstation with nest fixture or pin fixture |
| Panel Location | Located by tooling holes or edges of PCB |
| Loading | Manual |
| Unloading | Manual |
| Panel Size | 450*350mm |
| Panel Thickness | 0.5-3.5mm |
| Spindle motor | 0.5kW Morning Star Spindle |
| Tool Change | Manual |
| Dust filtration system | 3KW Vacuum Cleaner |
| Vision system | High-resolution CCD video camera |
| Programming | Vision assisted point to point manual teaching |
| Editing Function | Dry run vision assisted / test run mode |
| Machine weight | 500kgs |
| Machine dimension | 113*140*108cm |
► Dongguan ChuangWei Electronic Equipment Manufactory was founded in 2004 and is located in the world manufacturing city of Dongguan, Guangdong, China. The company is committed to the development, manufacture, sales, and service for professional pcb separator/pcb depalletizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacturing team, half of which have over 10 years of experience in the electronic equipment industry.
► Begin in 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine. From then on we pay more attention to product quality, safety to use and product innovation, so far we have produced many high-quality, stable performance, highly cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers. Until now we have designed different separating PCB types of PCB separator and PCB depaneling machines with manual,motor-driven,pneumatic-driven, mold punching, and milling cutter routers. Due to the good quality and reasonable price, our customers are all over the world. Up to now, ChuangWei has become one of the biggest PCB separator production bases in China.
► The company always insists on the "customer needs is our goal, creating most value for customers", and strives to provide customers with first-class products, and first-class service. So since date established we very attached importance to product quality, continuous improvement for manufacturing process, and trying hard to save money for customers.
► Our great mission is to be the most professional and excellent supplier in the PCB separator/PCB depanelizer electronic equipment industry.
