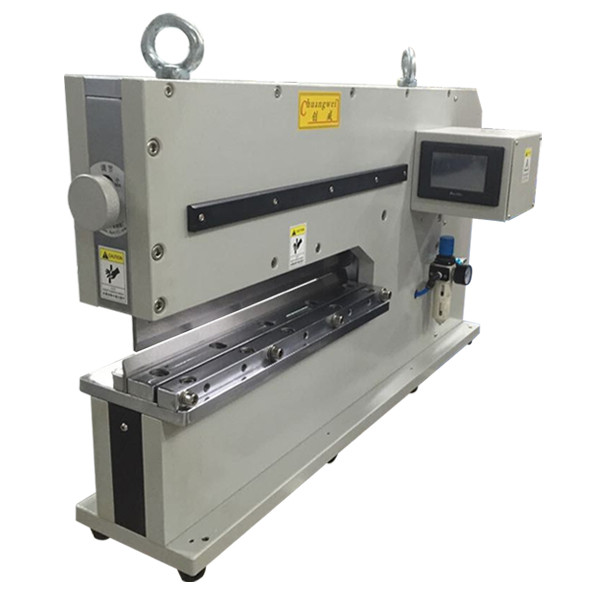

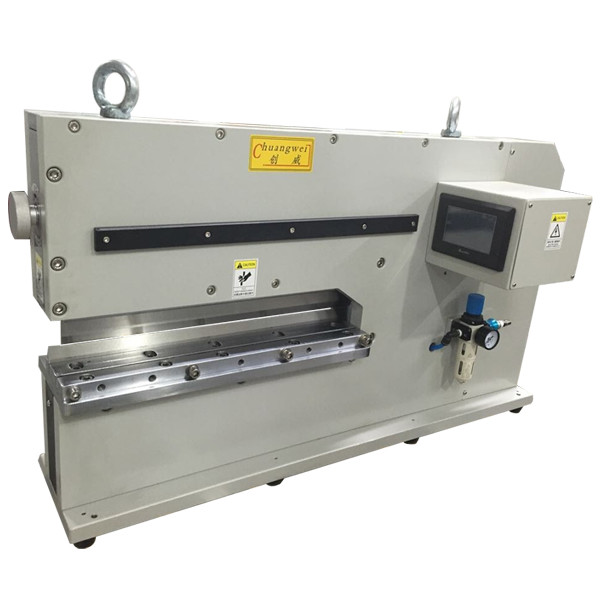

Pneumatic Pcb Separation Cutting for PCBA FR4 and Alum Board
Specification :
| Model | CWVC-480 |
| The Longest Minimize: | 480 mm |
| Size: | 980×450×380 mm |
| Minimize thickness | 1.0-3.5 mm |
| Machine Weight : | 300 kg |
| Use | Cutting PCBA , FR4 .Metal board , Alum Board , Etc |
process a lot of automobile suppliers use exclusively the depaneling machines of the NTM series for the separation of their prescored panel boards .
The machines SMTfly-2L / SMTfly-450 / SMTfly-480 / SMTfly-330 / SMTfly-400 / SMTfly-200 use an infinitely variable sectional cut to depanel prescored panel boards in a gentle and clean way by avoiding damage to SMD components placed directly at the edges of the boards .
Feature:
●Separates boards up to 3.5mm thick
●Shears boards safely with parts as close as 0.5mm to the score line,including ceramic capacitors
●Operator foolproof! Panels cannot be inserted into the knives except on the score line
●Pneumatically driven
●Handles high components up to 70mm
●Bow waves that can occur with round knives are avoided
●Easy adjusting of distance between knives
●Independent lab tests show less than 200 microstrains of stress measuring compression and tension.
●Has capacity counter function
Compared to other depaneling systems the new machines of the NSL series have the following advantages :
- gap for insertion of the board can be adjusted easily by means of a knob in the front of the machine
- integrated waste suction prepared
- depaneling process without vibrations
- easy-to-service design
- pneumatically driven (FESTO)
- operation and maintenance possible without precognition
- high power reserves, operations already possible at 2 bar
- pneumatic control placed in a separate unit for easier maintenance
Our Advantage :
1. Pcb depanelizer original manufacturers, price concessions
2. Promise day technical support services
3. Limit the handling of complaints, half an hour back to customers
4. Depanel Experts, the provision of professional PCB sub-programme
5. Reliable machine maker,we get Experts--15,each one got over 6 years experience,equipment quality will be satisfying.
More information about this model, please contact us
