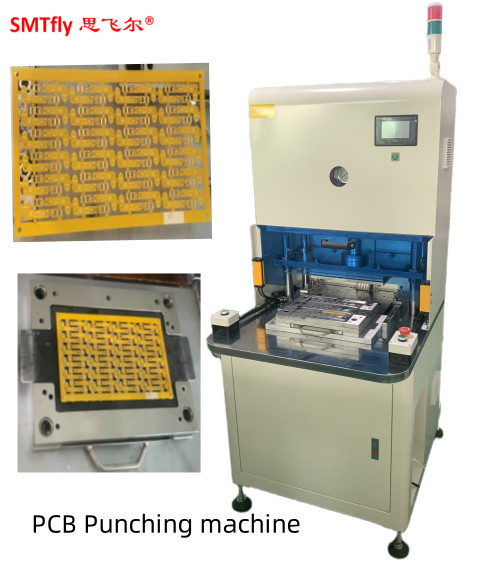

Customized PCB Separator,Pneumatic PCB FPC Punch Machine CWPE
1. Apply to cut Rigid pcb,Flexible PCB(FPC),Rigid-Flex PCB
2. Use punching die to cut with efficiency
3.Can replace multiple mold for production and mold changing easily
4.The operation is simple and safe

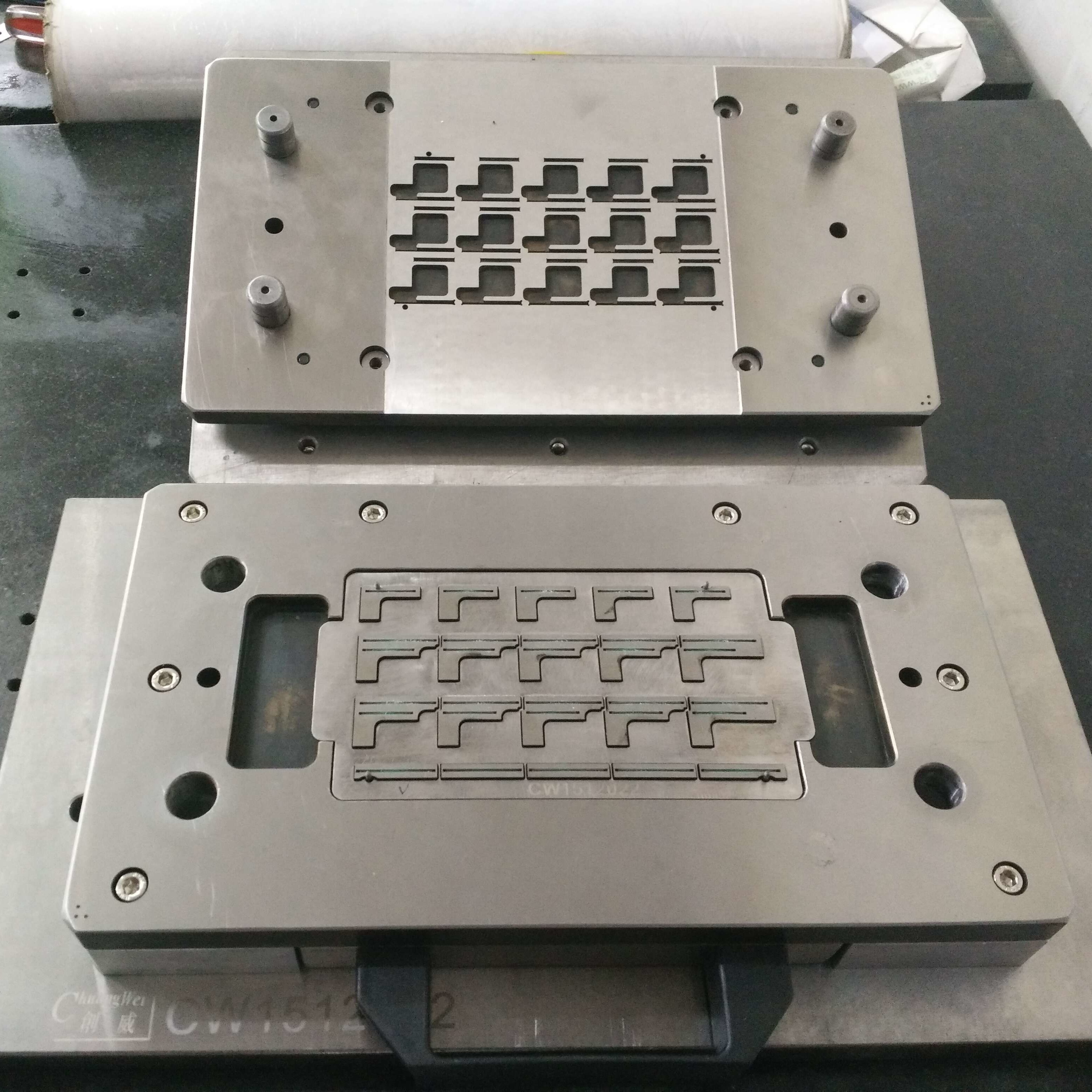

5. Moveable lower die for easy loading and unloadingPCB punch die| FPC die| PCB punch mold| FPC mould
Features:
1.Machine has strong structure and moves easily with 4 Casters.
2.can replace a variety of mold, and mold changing easily.
3.the lower mold automatic in and out, easy to pick and place products, finished products can fall into the drawer.
4.make internal stress generated by PCB cutting to minimize and avoid tin stress cracking.
5.punching cutting semi-finished PCB with high efficiency.
6.mould and die can be made according to customer's request.
Specifications:
| Model | CWPE |
| Punch Contribute(T) | 3(should be customized) |
| Working Area(mm) | 330*220(should be customized) |
| Working Air Pressure(Mpa) | 0.5-0.7 |
| Dimension(mm) | 730*810*1700 |
| Weight(kg) | 530 |
Installation and Adjustment:
1) Working steps:
A. Connect gas source
B. Press ,connect power
2) Working steps:
A. Put PCB/FPC/MCPCB to fixed position of lower mold
B. Press twins start button by 2 hands at a time
3) Take down finished products, put PCB/FPC/MCPCB to start next repeated project
Competitive Advantage:
1. CWPE Pcb depanelizer original manufacturers, price concessions
2. Day technical support services
3. Limit the handling of complaints, half an hour back to customers
4. Depanel Experts, the provision of professional PCB sub-programme

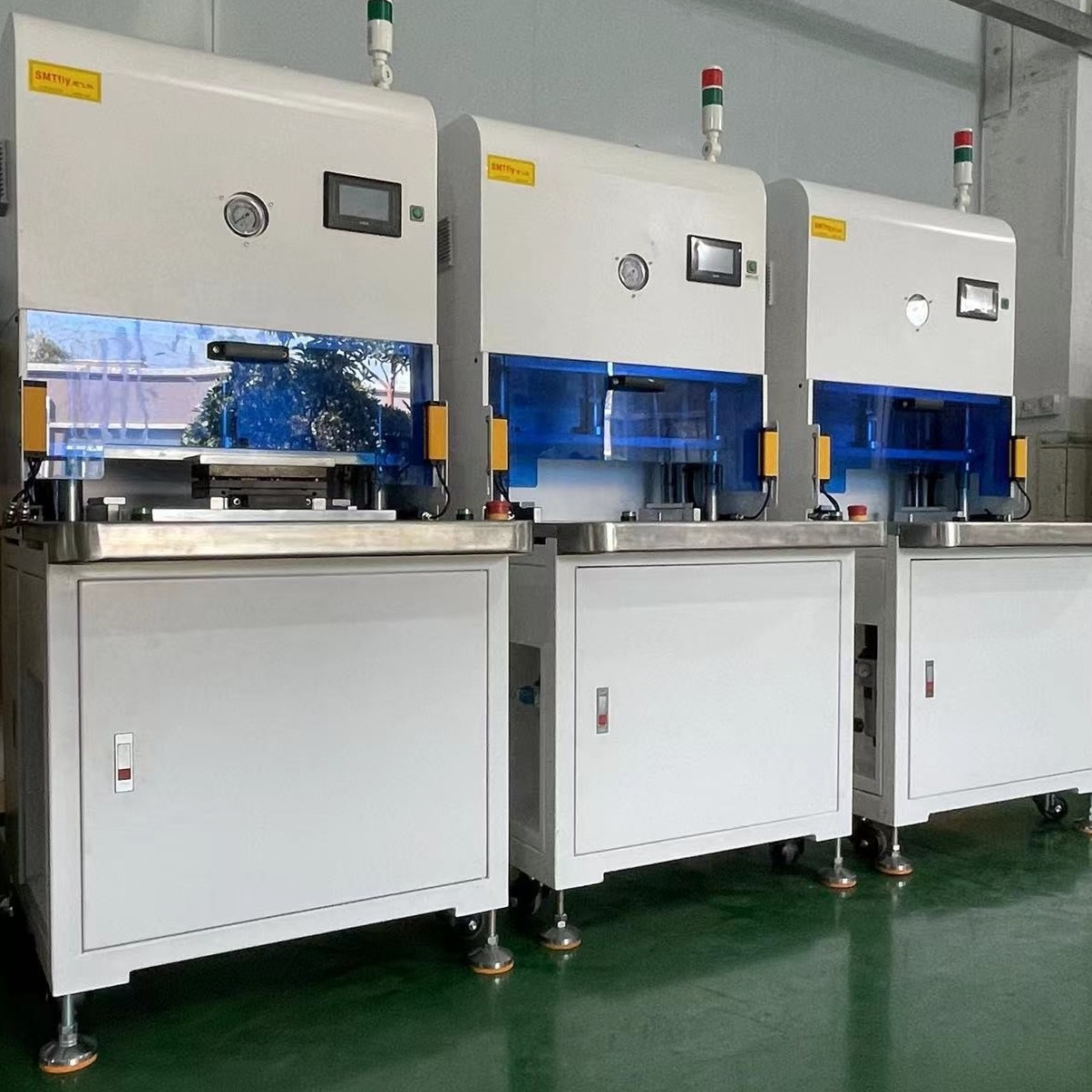

More photos for reference:
Welcome to contact us if you need the PCB Punching Machine:
Email:sales@dgwill.com
Wechat/whatsapp:+86 18166146357
