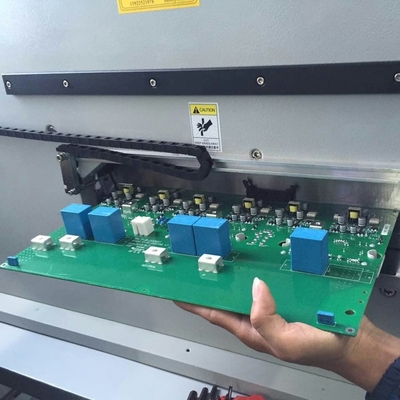

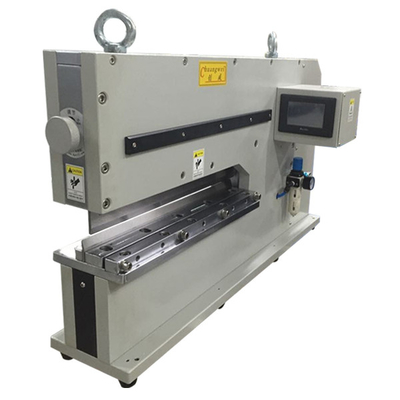

Pneumatic Pcb Separation Cutting for PCBA FR4 and Alum Board
Specification :
| Model | CWVC-480 |
| The Longest Minimize: | 480 mm |
| Size: | 980×450×380 mm |
| Minimize thickness | 1.0-3.5 mm |
| Machine Weight : | 300 kg |
| Use | Cutting PCBA , FR4 .Metal board , Alum Board , Etc |
process a lot of automobile suppliers use exclusively the depaneling machines of the NTM series for the separation of their prescored panel boards . The machines SMTfly-2L / SMTfly-450 / SMTfly-480 / SMTfly-330 / SMTfly-400 / SMTfly-200 use an infinitely variable sectional cut to depanel prescored panel boards in a gentle and clean way by avoiding damage to SMD components placed directly at the edges of the boards .
Compared to other depaneling systems the new machines of the NSL series have the following advantages :

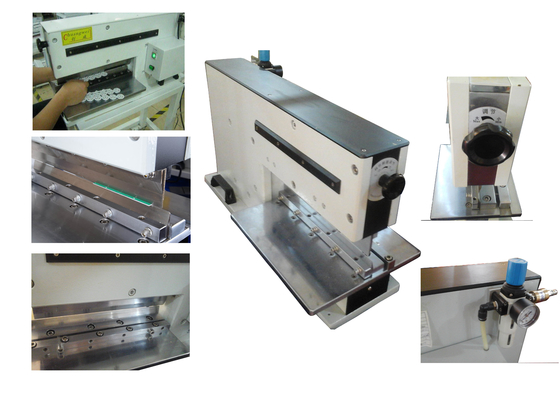

- gap for insertion of the board can be adjusted easily by means of a knob in the front of the machine
- integrated waste suction prepared
- depaneling process without vibrations
- easy-to-service design
- pneumatically driven (FESTO)
- operation and maintenance possible without precognition
- high power reserves, operations already possible at 2 bar
- pneumatic control placed in a separate unit for easier maintenance
Feature:
●Separates boards up to 3.5mm thick
●Shears boards safely with parts as close as 0.5mm to the score line,including ceramic capacitors
●Operator foolproof! Panels cannot be inserted into the knives except on the score line
●Pneumatically driven
●Handles high components up to 70mm
●Bow waves that can occur with round knives are avoided
●Easy adjusting of distance between knives
●Independent lab tests show less than 200 microstrains of stress measuring compression and tension.
●Has capacity counter function
Our Service:
A. Pre-consultation:provides professional SMT solution for the full line;
B. Factory Warranty:One-year warranty factory service;
C. Installation:On-site installation and commissioning,to ensure smooth production;
D. Technical Training:provides professional training from level 1 to level 3;
E. Technical Support:provides 7 days * 24 hours technical support;
F. Software Upgrade:offer lifetime free software upgrades for all products.
More information about this model, please contact us
