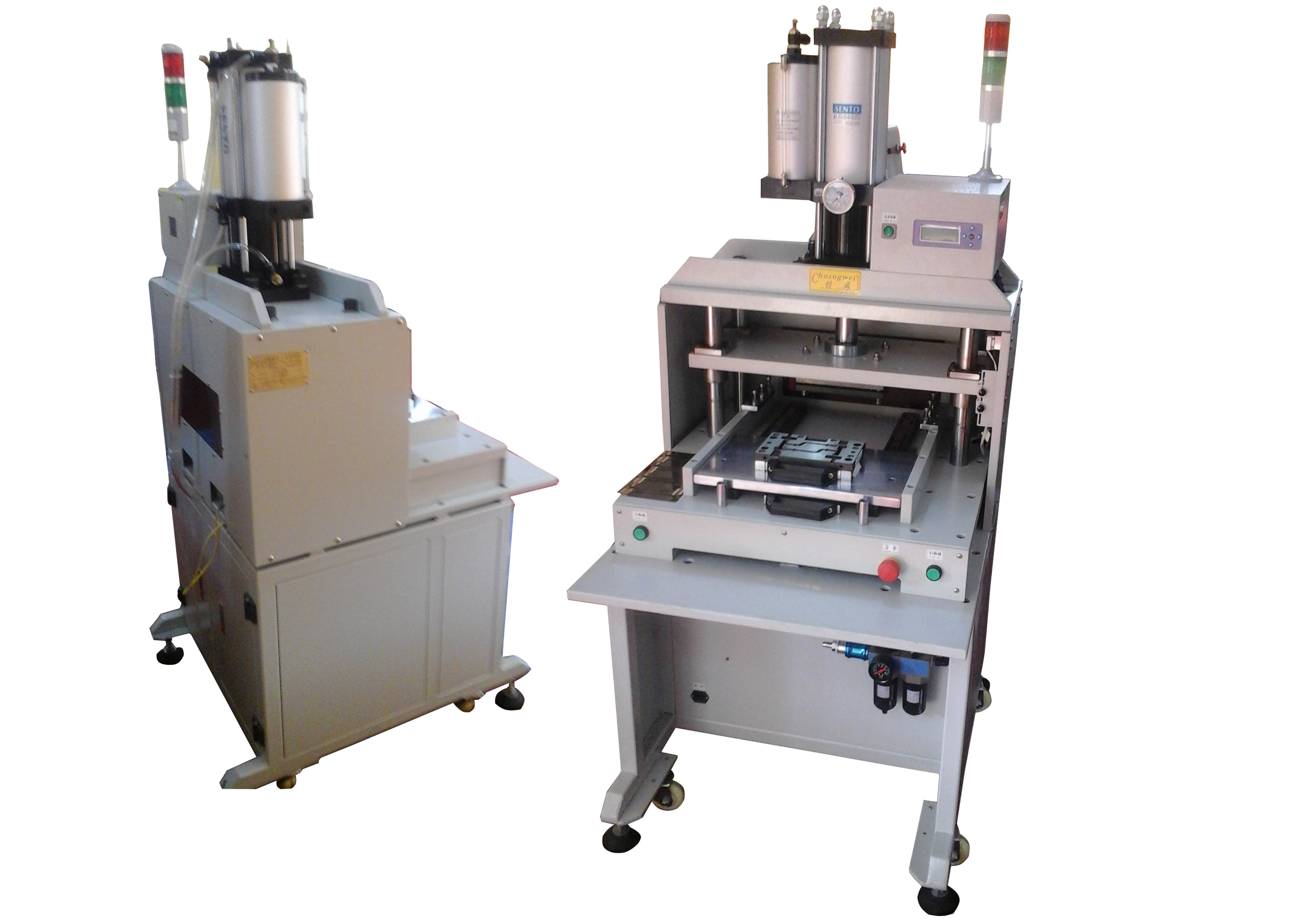

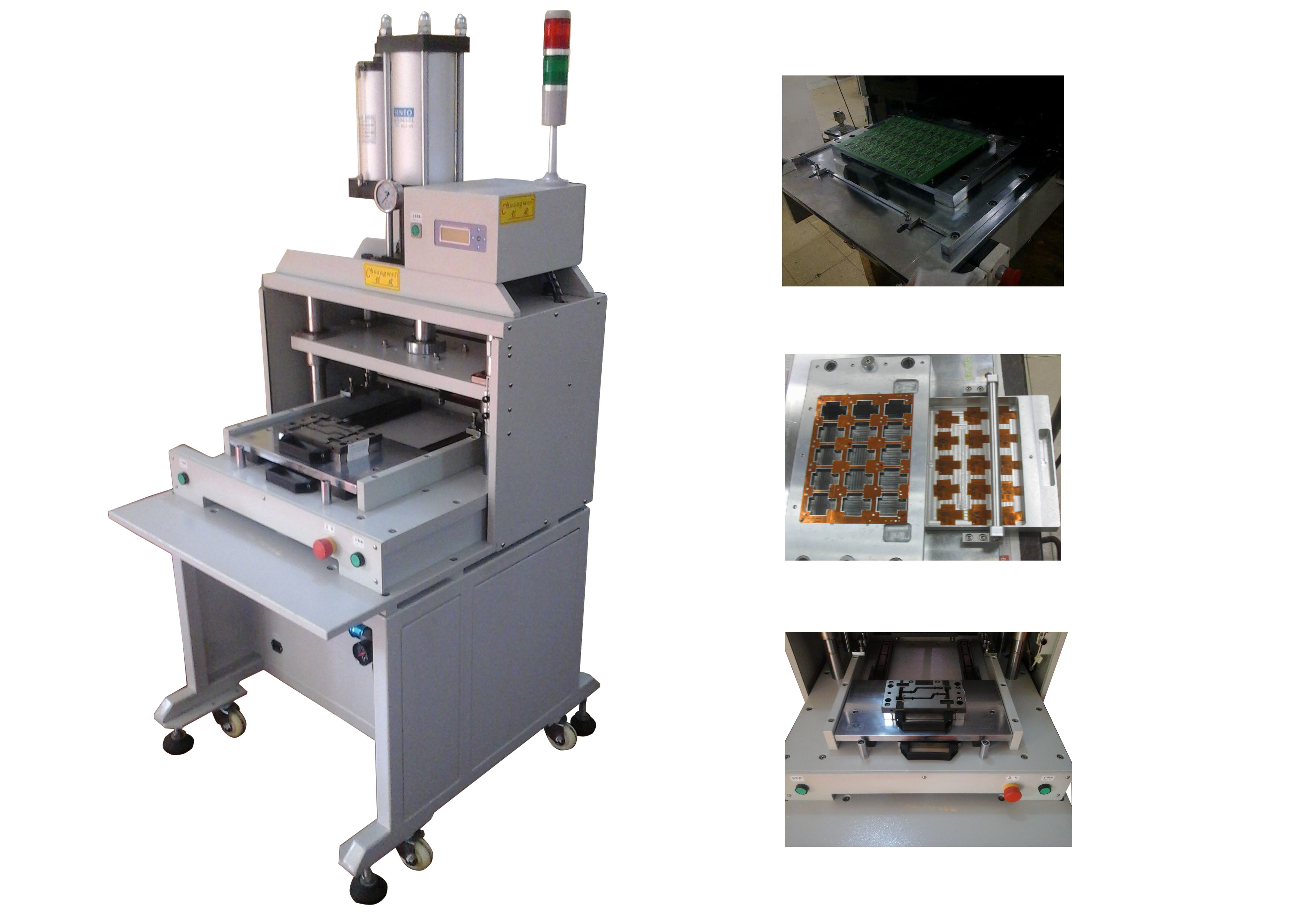

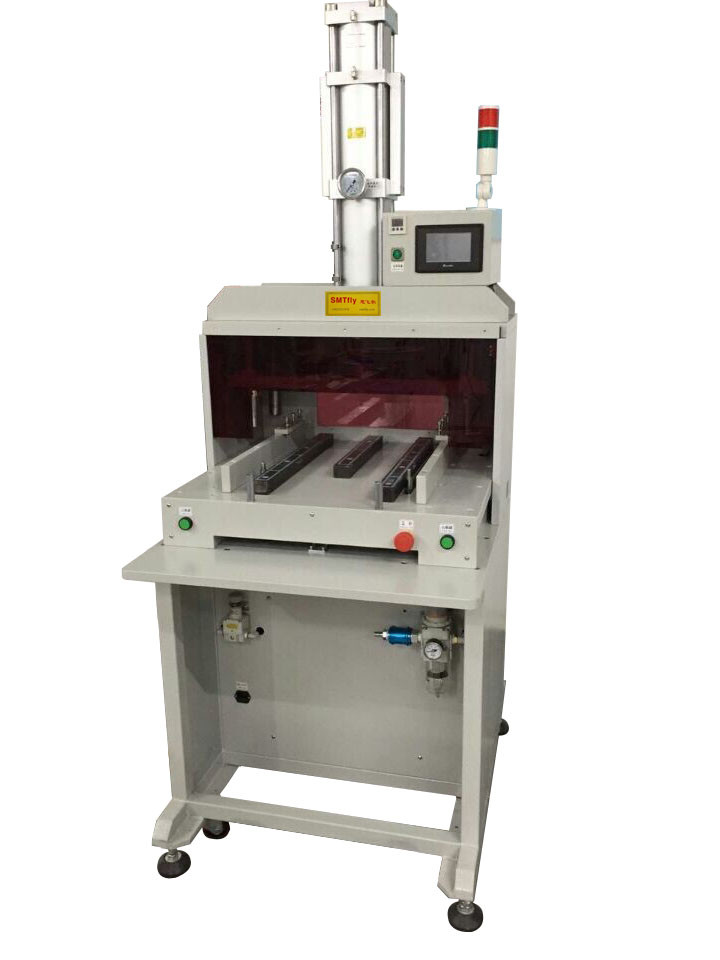

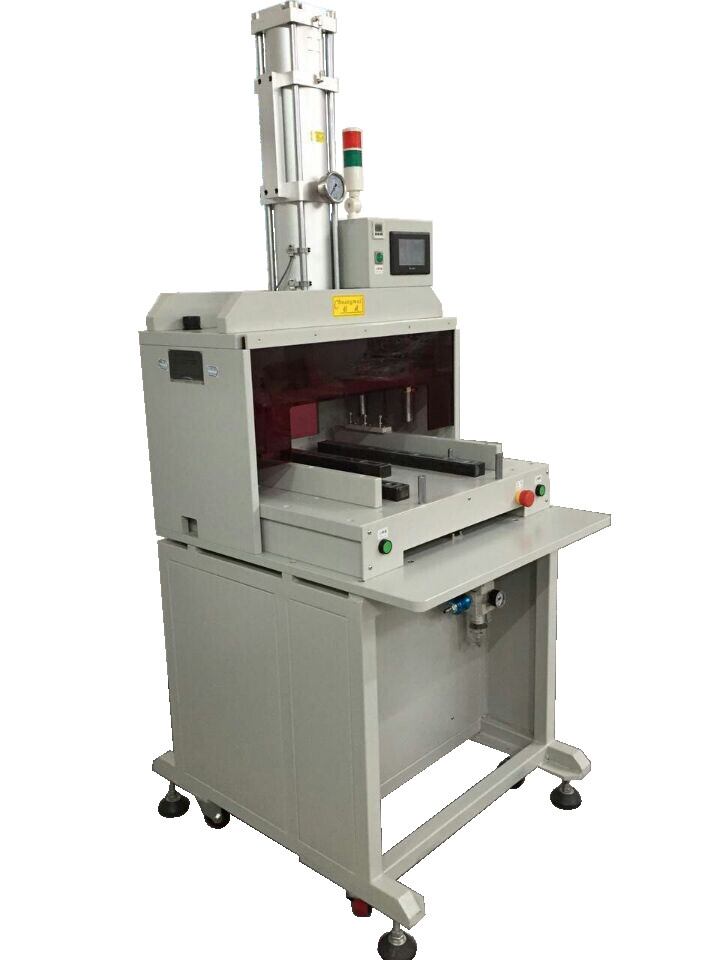

High Precision Die Punching Machine / Steel CNC Punching Machine
Specification :
|
Model |
CWPE |
|
Delivery (Day) |
7 days |
|
Supply Ability (Set) |
1000 sets / year |
|
PCB Area (mm) |
330 * 220 |
|
Power Supply (v) |
110 / 220 |
|
Depression (Pa) |
0.45~0.7 |
|
Machine Size (mm) |
730*810*1700 |
|
Contribute (Tone) |
3~30 |
|
Weight (Kg) |
530/700 |
|
Min. Order (Set) |
1 |
Applications :
General PCB , FPC , Aluminum board , Fiber glass , Fr4 , etc.
Detailed Product Description:
1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)
2. Other spare parts for punching molding.
3. Model and blades are made of high speed steel.
Technical characteristics:
1. Structural precision, the load evenly, to eliminate internal stress
2. Safe, easy to operate
3. Depaneling PCB/FPC by means of punching dies, to avoid micro-cracks caused by manual.
4. Cast iron framework for rigidity. Punching dies are changeable.
5. Easy set up of punching dies.
6. Moveable lower die for easy loading and unloading PCB punch die/FPC die/PCB punch mold/FPC mold.
Installation and Adjustment:
1) Working steps:
A. Connect gas source
B. Press ,connect power
2) Working steps:
A. Put PCB/FPC/MCPCB to fixed position of lower mold
B. Press twins start button by 2 hands at a time
3) Take down finished products, put PCB/FPC/MCPCB to start next repeated project
Competitive Advantages :
Well and High Quality Control
Prompt Delivery
New Product
Customer's Design and Logo are Welcome
Competitive Prices
Earth-friendly Products
Small Order Acceptable
ODM Accepted
