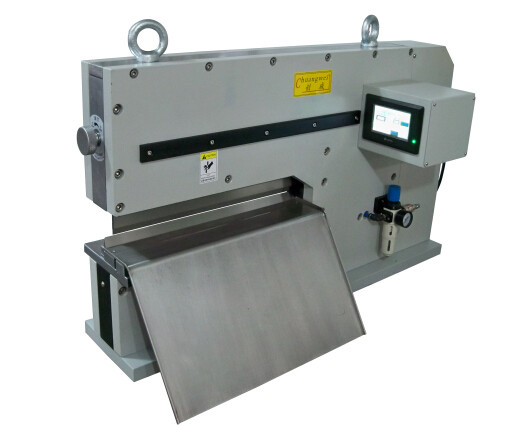

Linear PCB Depanel Separation Boards with Stress-Free Rocking Motion
PCB depanel specifications:
|
Model: |
SMTfly-450 |
|
The max .cutting length: |
450 |
|
Pcb Depaneling Machine Size: |
780mmx500mmx620mm |
|
The max cutting thickness: |
0.3-3.5mm |
|
Working Area: |
330*220mm |
|
Pcb Depaneling Machine Weight: |
185Kg |
Our Competitive Advantage :
1. Pneumatically driven and electric control.
2. The machine is pneumatically driven and electric control .
3. The straight knife type separator machines were designed to separate pre-scored panel boards carefully, without bending or tension stress .
4. Even sensitive SMD-components like ceramic capacitors will not be damaged by the separate process .
5. Due to the special design of the knives also boards with high components placed close to the edges can be separated safely .

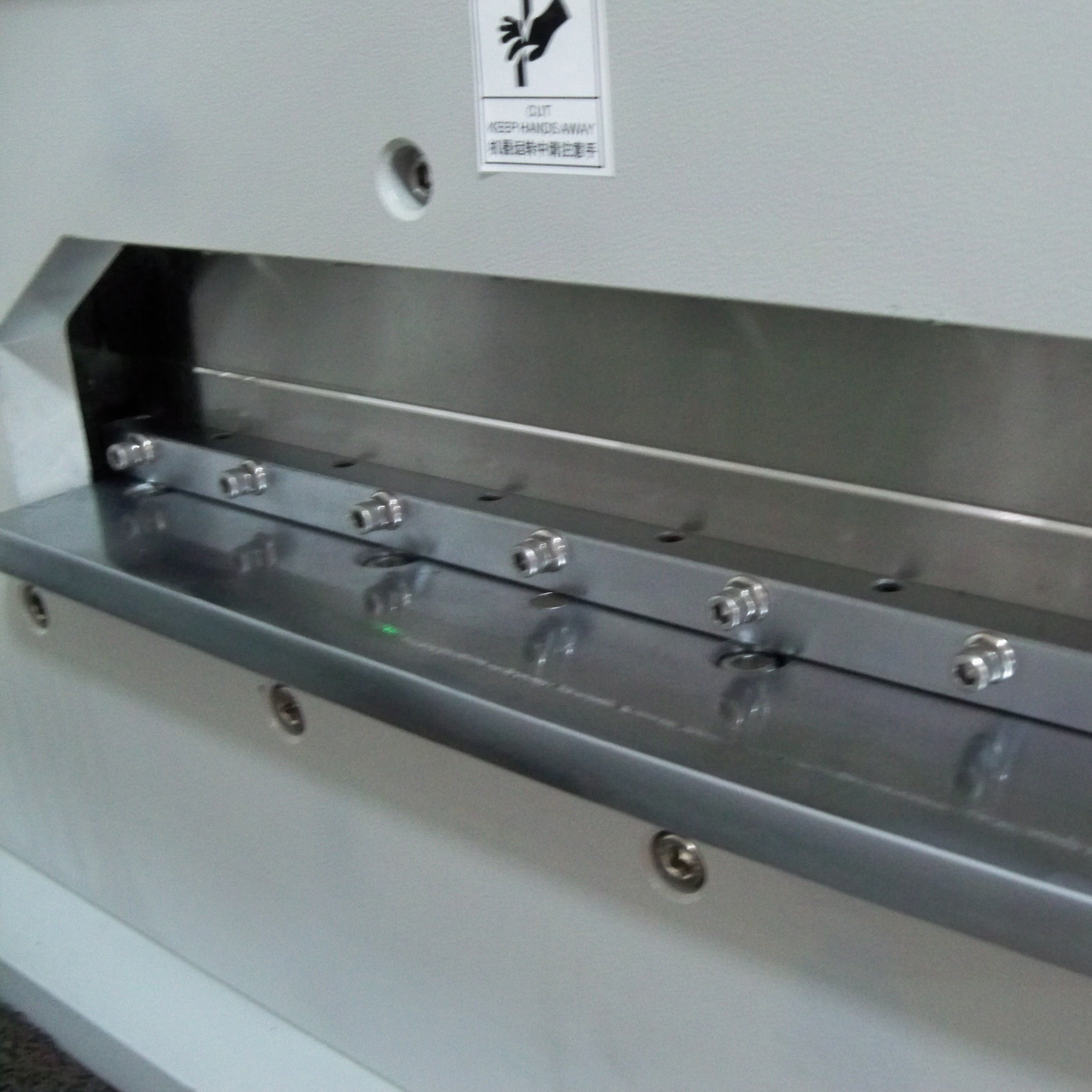

6. Based on a proven method of separating, wedge-shaped knives are used to cut the panels within the groove .
7. This enables boards of less than 1 mm thickness to be separated safely and without creating stress .
Advantages :
1. The cutting rate is one segmentation for one second , controlled by pneumatic pedal switch
2. The starting of the cutting set is for passive , so that the cutting tangent and position is under secure control . With little stress when cutting , there will no solder crack .
3. With cutting of nonroller (circular knife, straight knife ) type , there is no dust , no motor drive , and no carbon powder pollution .
4. With no-rubbing type cutting , there is no metal residue .
5. The blade can be used 600000 / times without power supply , avoiding the loss and change of electrical products .
6. The machine uses 5-7kg air compressor without specific cutting place , and it is maintained by wiping its appearance with the anti-rust oil .
Applications :
Cutting the aluminum base boards , FR4 , fiber glasses , pcba , etc.
