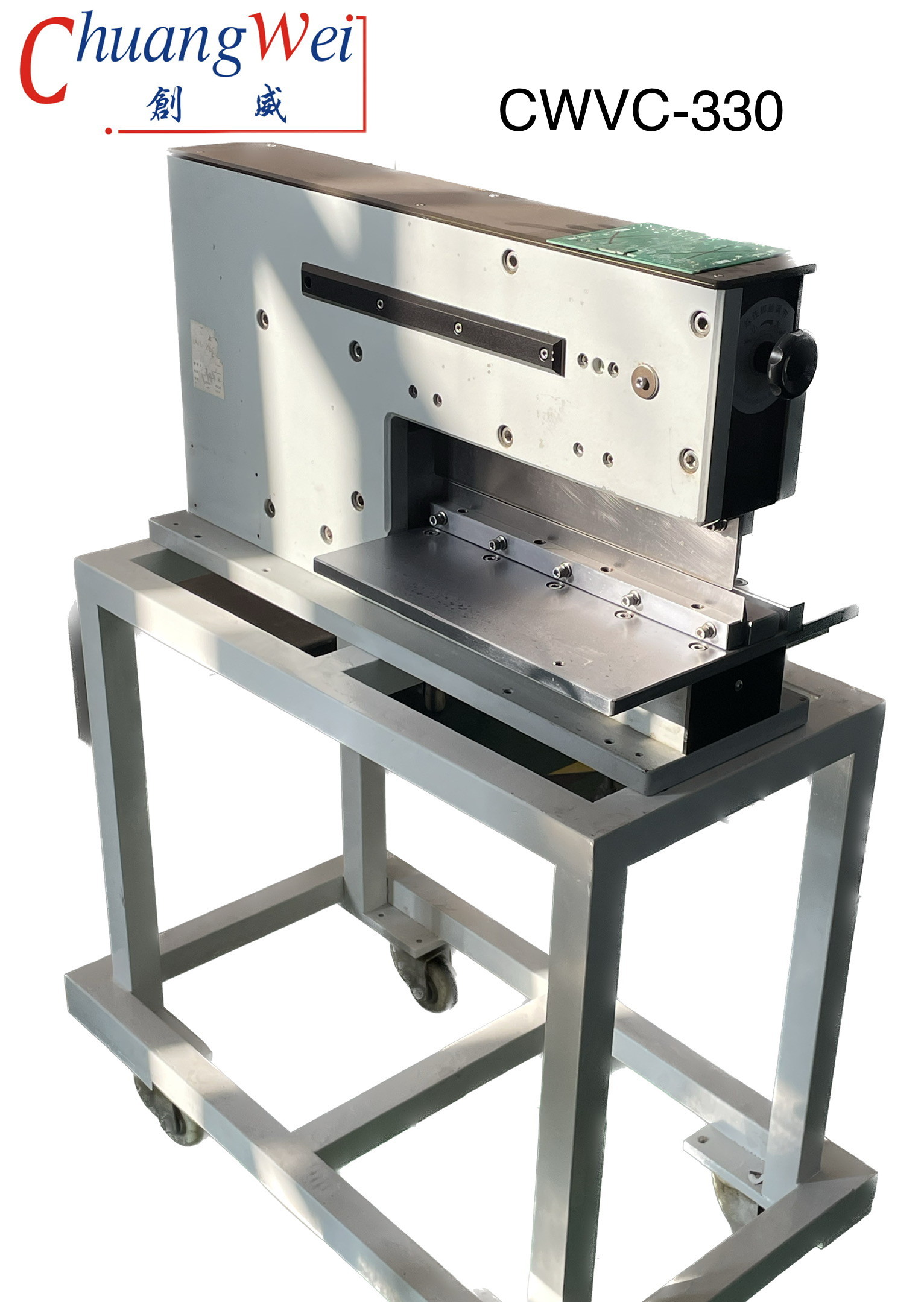

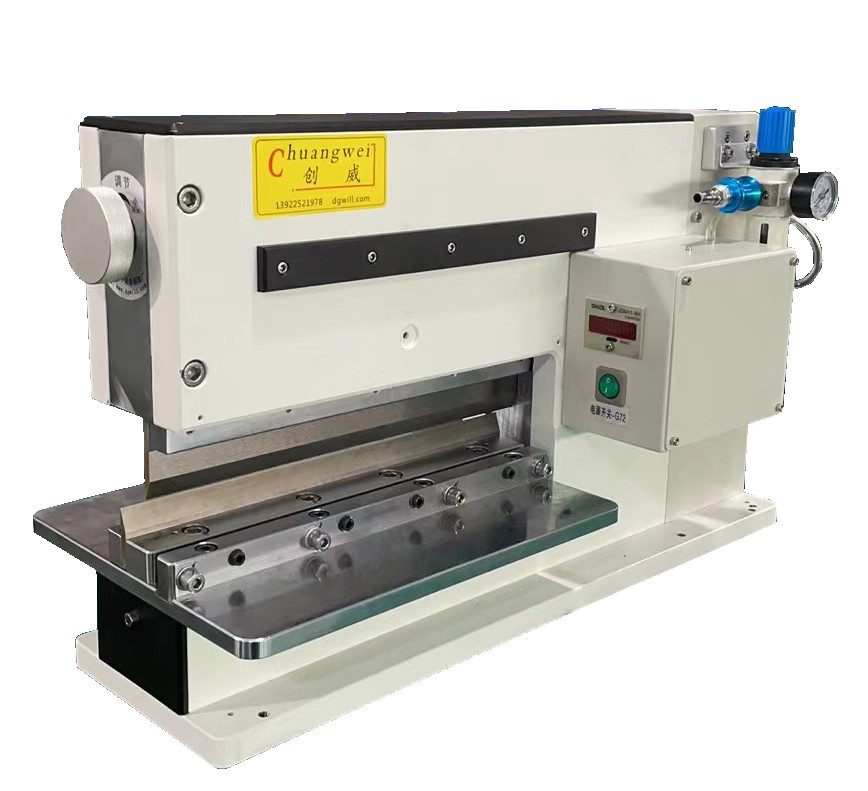

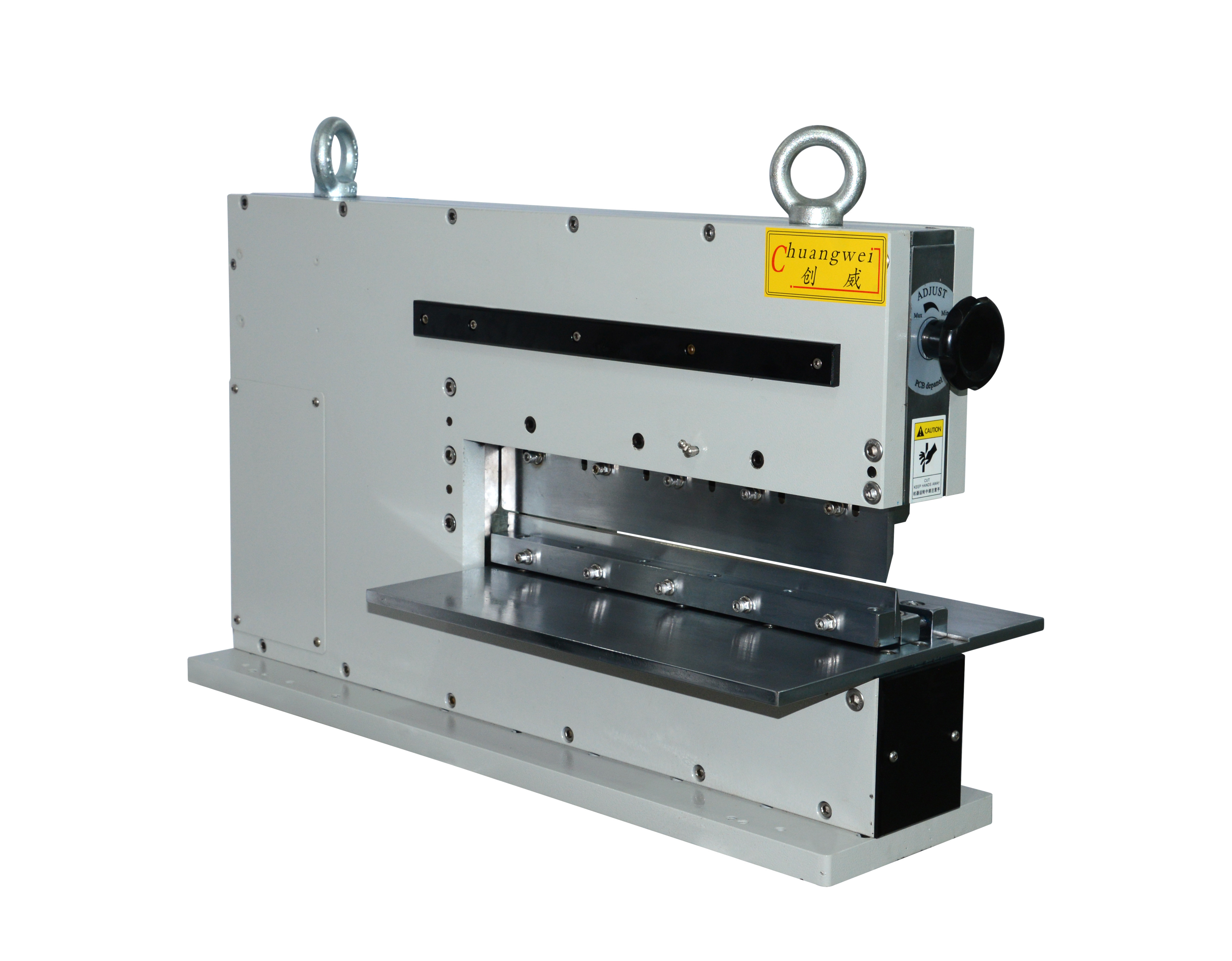

Max Pcb V Cut Machine Length 330mm Pneumatic With Two Linear Blades
Detail:
1. Easy maintenance and operation
2. Thin PCB even to 0.3mm can be depaneled safely
3. Depaneling process without vibrations due to pneumatic drive unit
Specification:
|
Model |
CWVC-2 |
|
Max. PCB depaneling length |
330mm/270mm(Can custom made) |
|
PCB depaneling thickness |
0.3-3.5mm |
|
Voltage and Power |
110V/220V 10W |
|
Working air pressure |
0.5-0.7Mpa |
|
PCB depaneling speed |
due to operator skilled level |
|
PCB depaneling machine size |
620*230*400mm /570*210*400 |
|
PCB depaneling machine weight |
165kg /130kg |
Feature:
1. Pneumatically driven and electromagnetic valve control.
2. Depaneling process without vibrations due to pneumatic drive unit.
3. Depaneling PCBs with sensitive SMD, capacitors or thin board even to 0.3mm can be depaneled safely.
4. Gap for insertion of PCB can be easy to adjust by the adjusting knob in front of the machine.
5. Highest components near the v groove of the PCB can be up to 70mm.
6. The minimum distance is allowed to be 0.5mm between V groove and the electronic components.
7. Depaneling operation is that operator stamps the foot pedal to Depanel PCB.
Competitive advantage:
Why choose us :
|
1. Engineers available to service machinery overseas. |
Engineers are available to be sent to foreign countries to do machinery training and offer technical support. |
|
2. Mature technique & forerunner to process makes high-quality machinery. |
As largest manufactory in South China, we have 12 years of experience with PCB separator machines and soldering machines. pcb router machine Our R&D team continuously upgrade the existing machines to meet the market development trend. |
|
3. Effective customer service. pcb router machine |
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers. |
|
4. One-year warranty for the machines except accessories. b router machine |
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge. |
|
Our mission: |
Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success |
|
Our Vision: |
PCB industry to become the world's leading solution provider PCB separator. pcb router machine |
