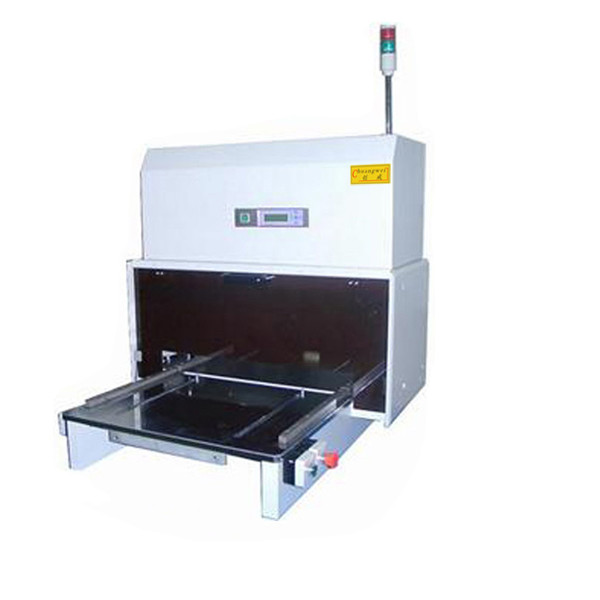

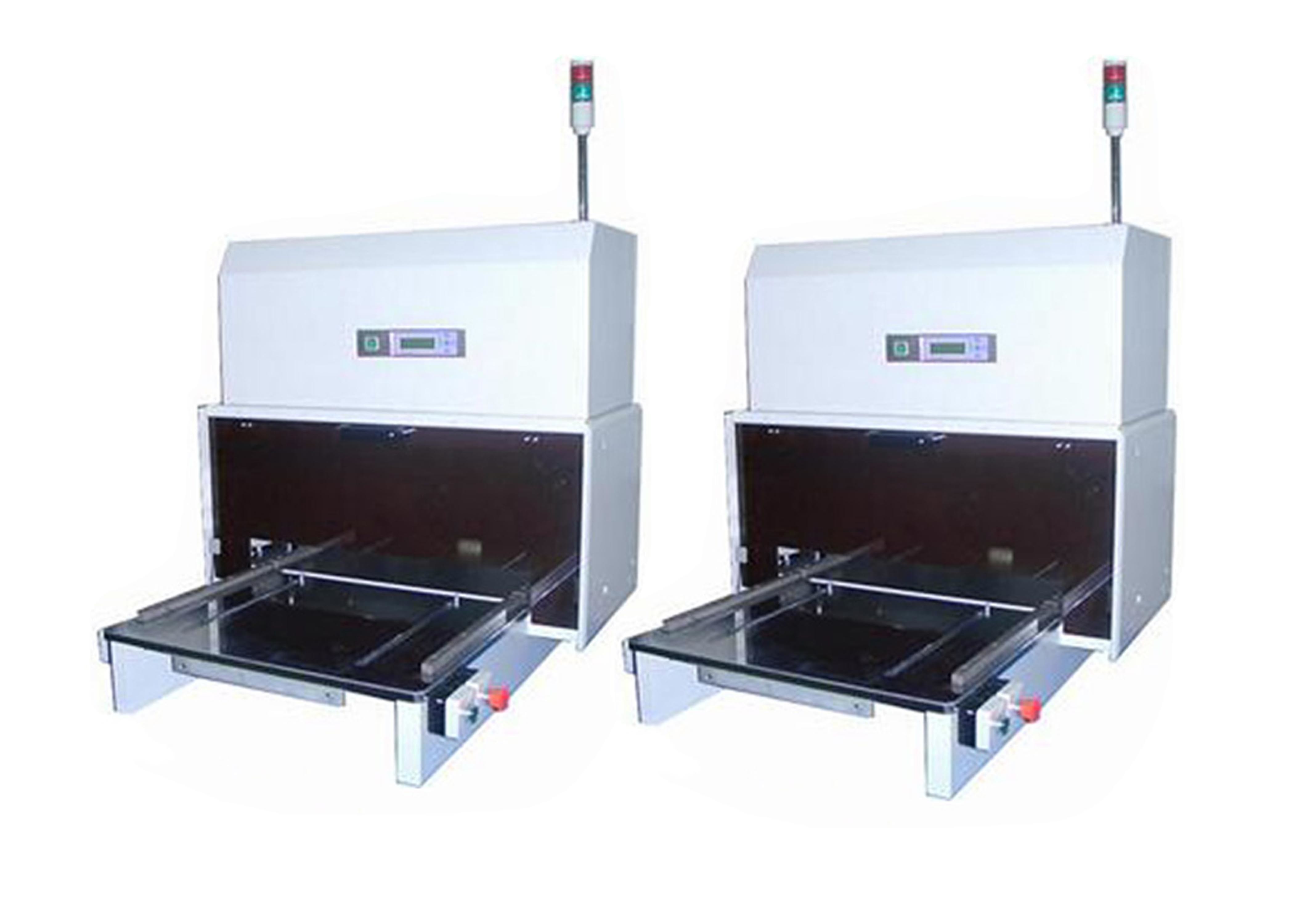

Pneumatically PCB Punching Machine , FPC Punching Mahine
1. PCB separator
2. Pneumatically driven electric control
3. can cut all kind of PCB board
4. lowest cut stress
5. Highly automatic
6. Fit many mold,fast replace
7. Efficient PCB put and pick
8. Protection PCB/FPC from depanelizing
Function:
CWPL is designed for PCB/FPC which is connected by points and
stamp holes, has high efficiency precision stamping and
punching effect. It is only guarantee slitting FPC, PCB
deformation in current market.
Its minimum cutting precision is ±0.05mm for special slim
PCBs. Max working area is 460*320mm.
Specification:
|
Model |
CWPL |
|
PCB Area (mm) |
460*320(could be customized) |
|
Contribute (Tone) |
8(could be customized) |
|
Size (mm) |
930*880*1230 |
|
Power Supply (V) |
as customers' request |
|
Weight (Kg) |
680 |
|
Guarantee (Year) |
1 |
|
Die design |
according to customers' PCB |
|
Advantage |
high-authority |
|
Customers |
Nokia, Foxconn, Foxlink, etc |
Feature:
1. Depaneling PCB/FPC by means of punching dies, to avoid micro-cracks caused by manual.
2. Cast iron framework for rigidity. Punching dies are changeable.
3. Easy set up of punching dies.

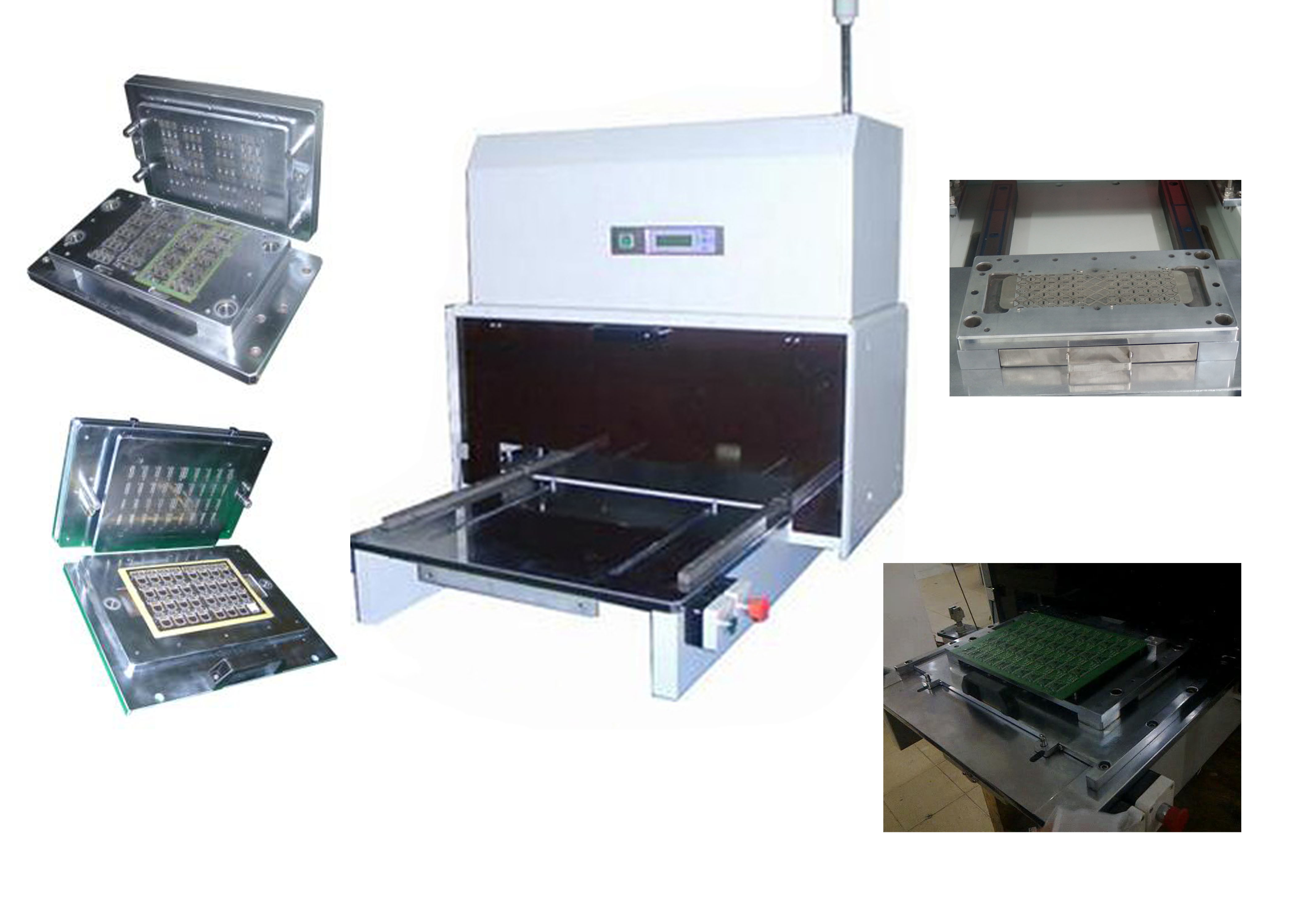

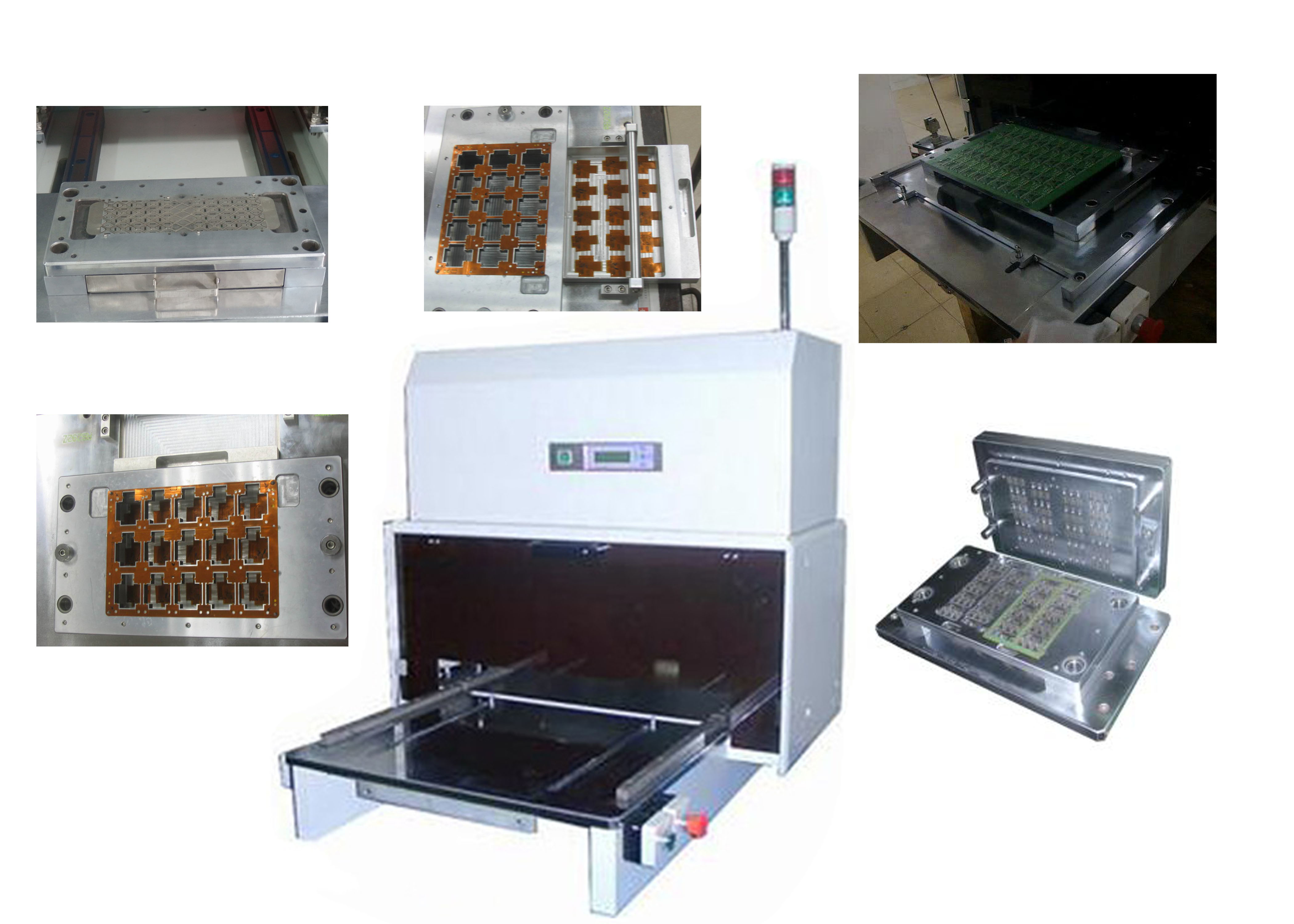

4. Moveable lower die for easy loading and unloading PCB punch die/FPC die/PCB punch mold/FPC mold.
Detailed Product Description:
1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)
2 .Other spare parts for punching molding
3. Mold make of SKH-11 Steel, Blade is SKH-9(From Japan), rigorous Job!!!! Dedicated
to high strength cutting, and excellent toughness
Technical characteristics:
1. Structural precision, the load evenly, to eliminate internal stress
2. Safe, easy to operate
3. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board) and other spare parts for punching molding industry
Our Advantage :
1. Pcb depanelizer original manufacturers, price concessions
2. Promise day technical support services
3. Limit the handling of complaints, half an hour back to customers
4. Depanel Experts, the provision of professional PCB sub-programme
5. Reliable machine maker,we get Experts--15,each one got over 6 years experience,equipment quality will be satisfying.
Application:
