Fully automatic PCB Unloader buffer stock customizable single/dual track
Features:
Stable and reliable integrated control system;
Easy to operate touch LED buttons or touch screen control interface;
The pneumatic clamps of top and bottom three point provided for the magazine alignment;
Electric pushing board design can ensure the PCB is unbroken;
Machine always fault monitoring;
Solid and stable design;
SMEMA port is compatible.

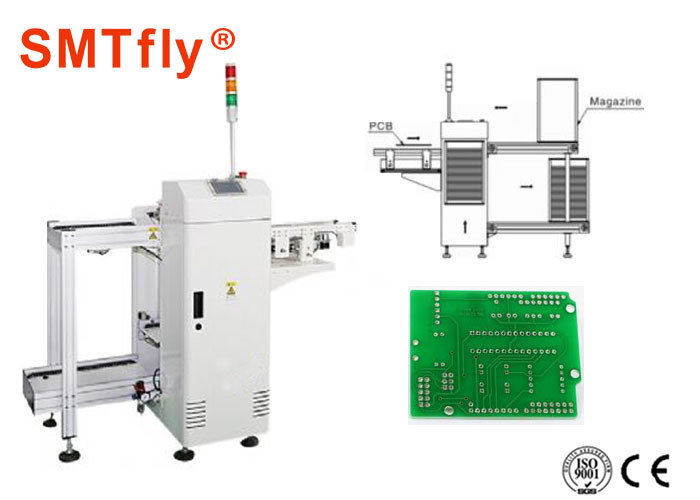

This equipment is used collect PCBs into magazine at the end of SMT production line.
Specification Parameter:
| Model | SMTfly-UL250 | SMTfly-UL330 | SMTfly-UL390 | SMTfly-UL460 |
| PCB Size(L*W-L*W) | 50*50~350*250 | 50*50~455*330 | 50*50~530*390 | 50*50~530*460 |
| Machine Size(L*W*H) | 1700*750*1200 | 1950*830*1200 | 2210*920*1200 | 2210*990*1200 |
| Magazine Size(L*W*H) | 355*320*563 | 460*400*563 | 535*460*570 | 535*530*570 |
| Weight | 130Kg | 150Kg | 170Kg | 185Kg |
Technique Parameter:
| PCB board time | 6Sec |
| Magazine change over time | 30Sec |
| Power supply | 100-230V AC power(customized) |
| Single phase | Max 300VA |
| Air pressure | 4-6bar,Max 10L/Min |
| Transfer height | 920±20mm(customized) |
| Transfer direction | Left - right or right-left |
| PCB thickness | Min 0.6mm |
| Magazine number | Upper conveyor: 1, lower conveyor: 1(or customized) |
| Step pitches select | 1-4(10mm step pitches) |
Unloader
Customizable track(Dual track)
