Name: 50mm Fully Automatic Vacuum Speed Adjustable PCB Loader SMEMA Interface
Brand: SMTfly
SKU: SMTfly-U250
Rating: 4.6 (127 reviews)

50mm Fully Automatic Vacuum Speed Adjustable PCB Loader SMEMA Interface

1 Set

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Dimension: 2440*726*1250mm

PCB Size: 330*(60‐250)mm

PCB Delivery Height: 900 +/‐ 20mm

PCB Rack Lifting Step Distance: 10,20,30,40,50mm

Material Specification: 355*320*565mm

Power Supply Single Phase: 220V,50/60Hz,100W

Air Pressure: 5~7kg/cm2

Net Weight: 200kg

High Light:

50mm pcb vacuum loader

SMEMA pcb vacuum loader

50mm pcb loader and unloader

Basic Infomation

Place of Origin: China

Brand Name: SMTfly

Certification: CE

Model Number: SMTfly-U250

Payment & Shipping Terms

Packaging Details: each set be packed in plywood case

Delivery Time: 5-10 days after receive the payment

Supply Ability: 300 sets per month

Gallery

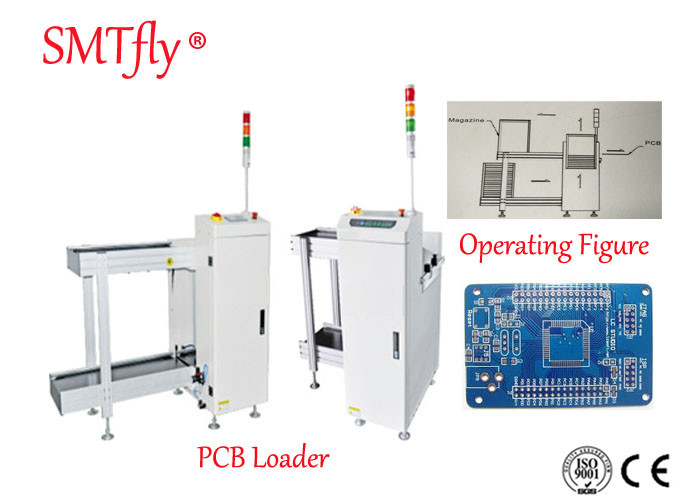

50mm Fully Automatic Vacuum Speed Adjustable PCB Loader SMEMA Interface

Product Description

Fully automatic PCB Unloader buffer stock customizable single/dual track

1. Main Features:

Special aluminum alloy body, better to know the working status of magazines.
Solid cast lift design improving the Stability.
Panasonic PLC Control, multi‐function electrical circuits, and program design.
User‐friendly Programming, 4 PITCH chooses, can set the step of receiving/sending PCB.
Standard SMEMA Interface can be connected with other automation equipment.
Using engineering plastic flat strip for magazine’s transmission.
PCB transmission Speed Adjustable.
Three‐point positioning, up‐down pneumatic clamping to ensure accurate location of magazines.
Pushing Protection System ensures the PCB will not be damaged.

2. PCB Unloader Specification: SMTfly-U250

Dimension	24407261250mm
PCB size	330*(60‐250)mm
PCB delivery height	900 +/‐ 20mm
PCB rack lifting step distance	10,20,30,40,,50mm
Material specification	355320565mm
Power supply Single phase	220V,50/60Hz,100W
Air pressure	5~7kg/cm2
Net weight	(about)220kg

50mm Fully Automatic Vacuum Speed Adjustable PCB Loader SMEMA Interface 1

Unloader

Customizable track(Dual track)

50mm Fully Automatic Vacuum Speed Adjustable PCB Loader SMEMA Interface 2
