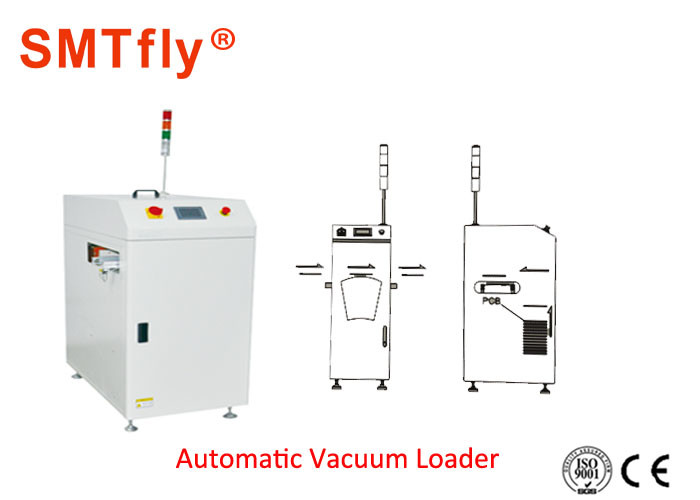

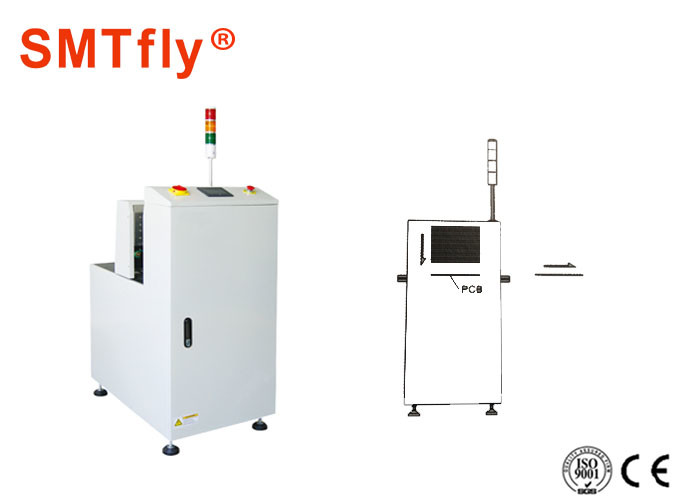

Auto PCB Laminated Loading Machine Customized Size PCB Loader
Features:
Stable and reliable integrated control system;
Easy to operate touch LED buttons or touch screen control interface;
Machine always fault monitoring;
Optional pass working mode;
Smooth and parallel width adjustment(lead screw);
Small machine footprint;
SMEMA port is compatible.
The equipment is used to collect bare PCBs at the end of SMT production line.
Specification Parameter:
| Model | SMTfly-DB350B | SMTfly-DB460B |
| PCB Size(L*W-L*W) | 50*50~450*350 | 50*50~550*460 |
| Size(L*W*H) | 600*825*1200 | 700*925*1200 |
| Weight | 110Kg | 160Kg |
Technique Parameter:
| Max PCB’s capacity | 300PCS(0.6mm thickness PCB) |
| Cycling time | 8 Sec |
| Air pressure | 4-6 bar |
| Air volume | Max 20L/Min |
| Power supply | 100-230V AC(customized),single phase |
| Power load | Max 150V/A |
| Transfer height | 900±20mm(or customized) |
| Transfer direction | Left - right or right-left |
| Power load | Max 150V/A |
| Air volume | Max 10L/minute |
| PCB thickness | Min 0.6mm |
