Name: 100W 30mm Buffer Stock Pcb Board Loader / PCB Loader Machine
Brand: SMTfly
SKU: SMTfly-L250
Rating: 4.7 (121 reviews)

100W 30mm Buffer Stock Pcb Board Loader / PCB Loader Machine

1 Set

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Dimension: 1646*726*1250mm

PCB Size: 330*(60‐250)mm

PCB Delivery Height: 900 +/‐ 20mm

PCB Rack Lifting Step Distance: 10,20,30,40,50mm

Material Specification: 355*320*565mm

Power Supply Single Phase: 220V,50/60Hz,100W

Air Pressure: 5~7kg/cm2

Net Weight: 200kg

High Light:

100W pcb board loader

30mm pcb board loader

100W PCB Loader Machine

Basic Infomation

Place of Origin: China

Brand Name: SMTfly

Certification: CE

Model Number: SMTfly-L250

Payment & Shipping Terms

Packaging Details: each set be packed in plywood case

Delivery Time: 5-10 days after receive the payment

Supply Ability: 300 sets per month

Gallery

100W 30mm Buffer Stock Pcb Board Loader / PCB Loader Machine

Product Description

Fully automatic PCB Loader buffer stock customizable single/dual track

1. Main Features:

Special aluminum alloy body, better to know the working status of magazines.
Solid cast lift design improving the Stability.
Panasonic PLC Control, multi‐function electrical circuits, and program design.
User‐friendly Programming, 4 PITCH chooses, can set the step of receiving/sending PCB.
Standard SMEMA Interface can be connected with other automation equipment.
Using engineering plastic flat strip for magazine’s transmission.
PCB transmission Speed Adjustable.
Three‐point positioning, up‐down pneumatic clamping to ensure accurate location of magazines.
Pushing Protection System ensures the PCB will not be damaged.

2. PCB Loader Specification: SMTfly-L250

Dimension	*16467261250mm*
PCB size	*330(60‐250)mm**
PCB delivery height	900 +/‐ 20mm
PCB rack lifting step distance	10,20,30,40,,50mm
Material specification	*355320565mm*
Power supply Single phase	220V,50/60Hz,100W
Air pressure	5~7kg/cm2
Net weight	(about)220kg

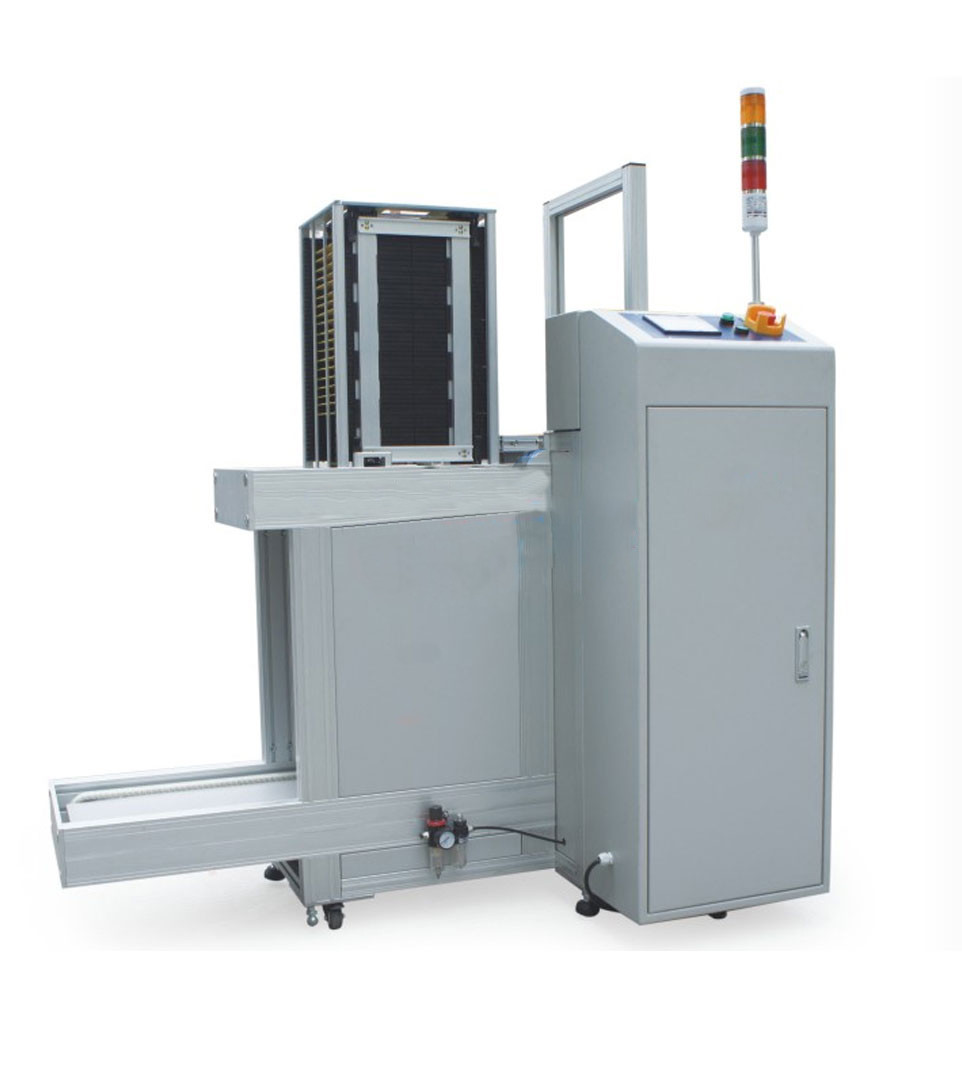

100W 30mm Buffer Stock Pcb Board Loader / PCB Loader Machine 1

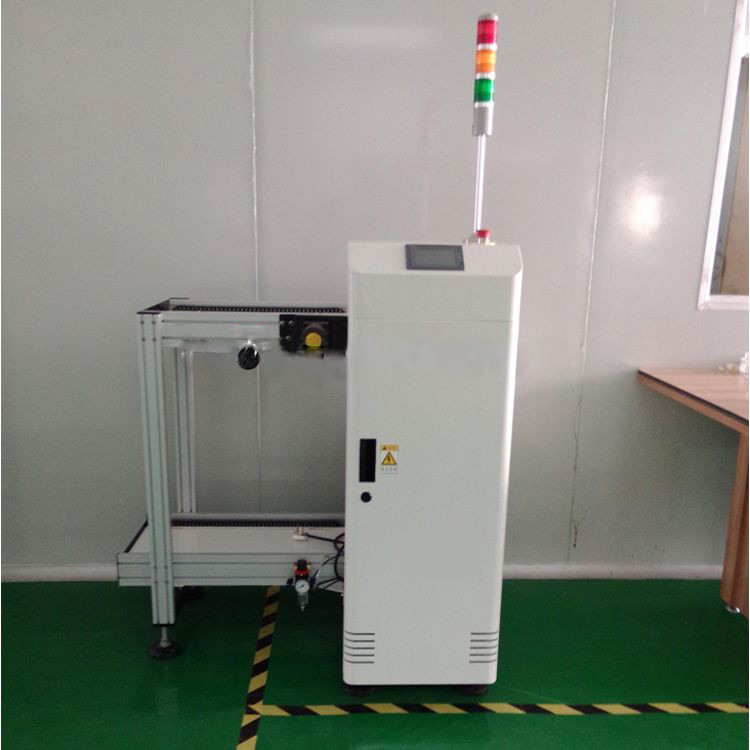

Loader

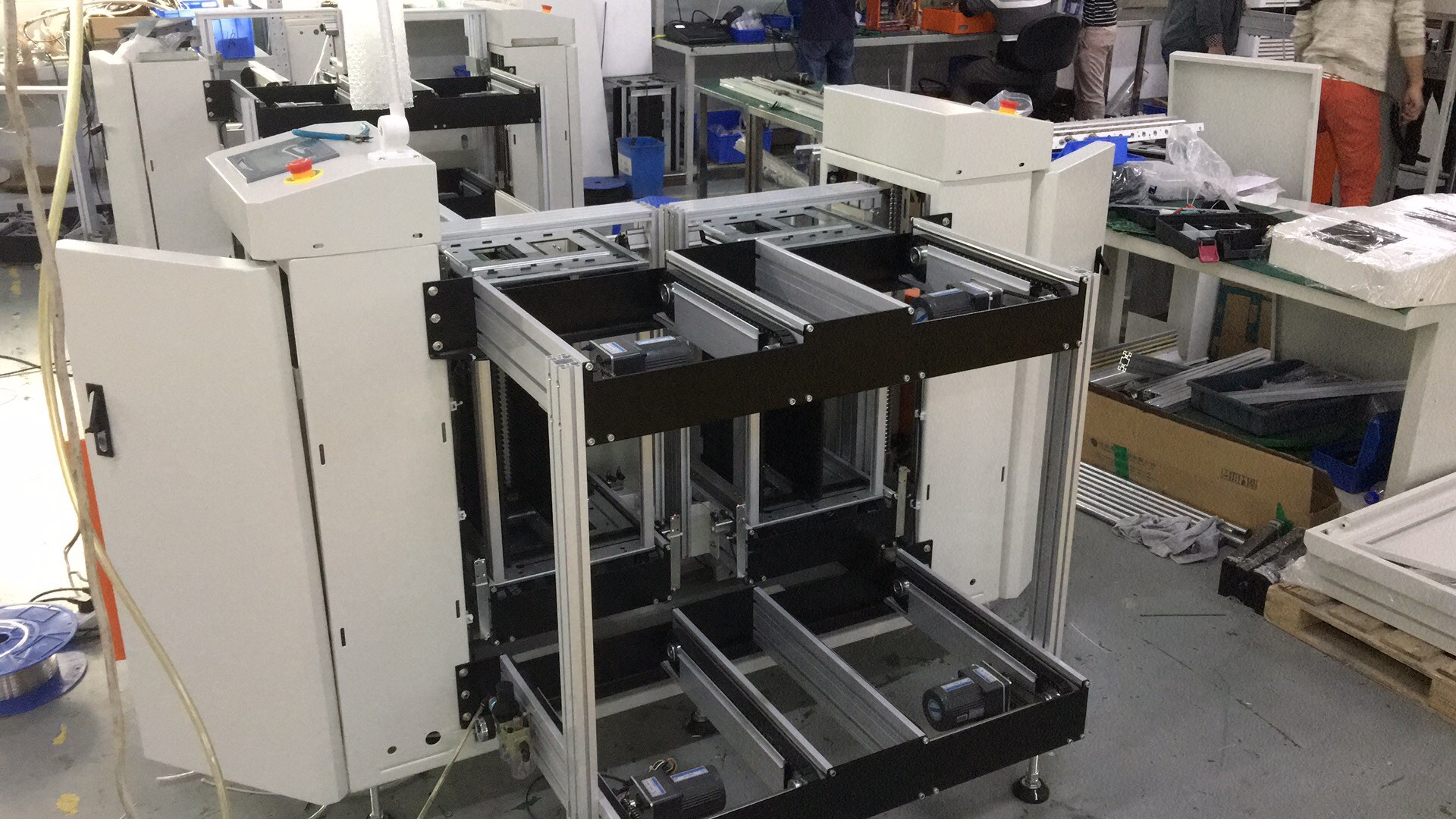

Customizable track(Dual track)

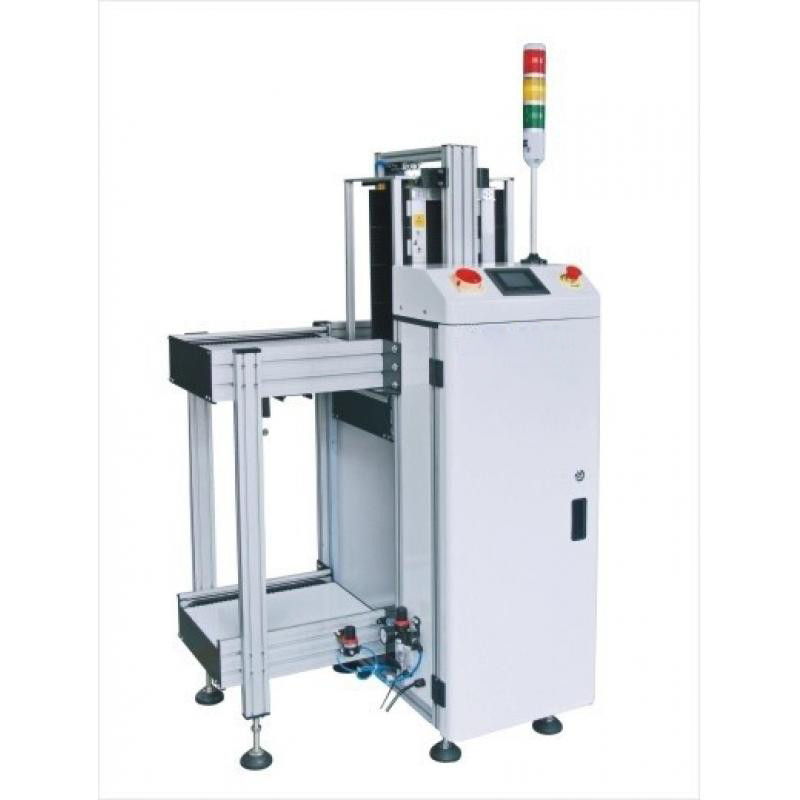

100W 30mm Buffer Stock Pcb Board Loader / PCB Loader Machine 2
