User-Friendly and Precise PCB Router Machine with Automatic Alignment Compensation

1 Set
MOQ
Negotiable
Price
User-Friendly and Precise PCB Router Machine with Automatic Alignment Compensation
Features Gallery Product Description Request A Quote
Features
Specifications
Color: White
Vacuum Cleaner: Upper Or Lower(optional)
Routing Bit: 0.8/1.2/1.5/1.8/2.0mm
PCB Size: 450*350mm
PCB Material: FR1, FR4, MCPCB
Description: PCB Router
Highlight:

1.2mm PCB Router

,

Stress Free PCB Depanelizer
Basic Infomation
Place of Origin: Dongguang China
Brand Name: Chuangwei
Certification: CE ISO
Model Number: CW-F04
Payment & Shipping Terms
Packaging Details: each set be packed in carton boxes
Delivery Time: 5 days after payment confirm
Payment Terms: T/T, L/C,paypal
Supply Ability: 300 sets per month
Product Description

Stress Free Depanelization PCB Router with Automatic Alignment Compensation,CW-F04 Key Features

  • Solution for stress free depanelization
  • Fixture-based highly efficient dust vacuum system
  • Clean and precise depanelization for densely populated PCBs
  • Advanced image-processing software offers point-and-click operation for programming router paths
  • Automatic alignment compensation by CCD camera
  • User-friendly operation
  • Extended bit life by automatic router bit depth adjustment
  • Improved tact time
  • Low maintenance required
  • Reasonable price
  • Calibration free linear robot

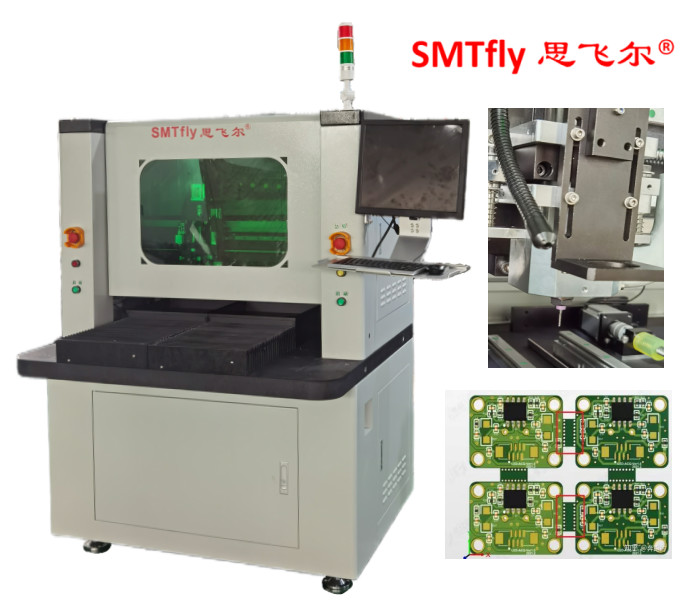

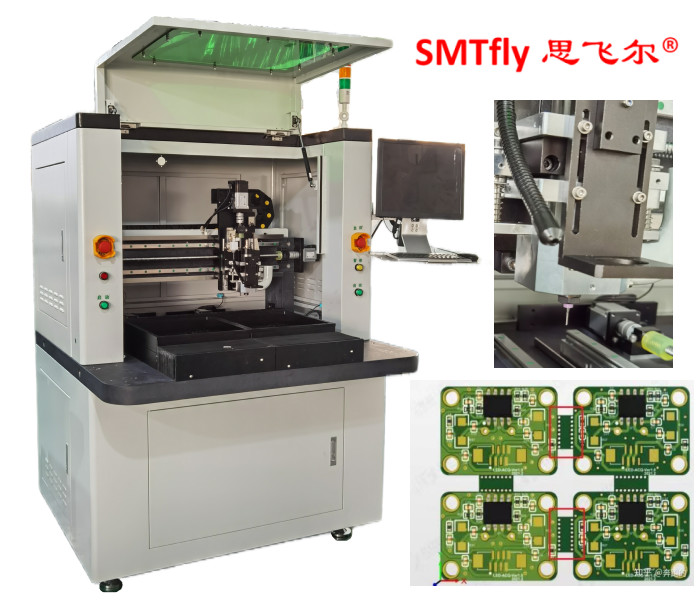

User-Friendly and Precise PCB Router Machine with Automatic Alignment Compensation 0

Specification:


Model CW-F04
Standard working area 450*350mm
Power 220V, 4.2KW
Manipulator Repeatability ±0.02mm
Resolution ±0.01mm
Board Positioning Dual workstation with nest fixture or pin fixture
Panel Location Located by tooling holes or edges of PCB
Loading Manual
Unloading Manual
Panel Size 450*350mm
Panel Thickness 0.5-3.5mm
Spindle motor 0.5kW Morning Star Spindle
Tool Change Manual
Dust filtration system 3KW Vacuum Cleaner
Vision system High resolution CCD video camera
Programming Vision assisted point to point manual teaching
Editing Function Dry run vision assisted / test run mode
Machine weight 500kgs
Machine dimension

113*140*108
