PCB Manufacturing Machine / PCB Depaneling Router Machine with 0.01mm Precision
1. Our service:
# Fast delivery
# 24 hours fast response
# Largest manufactory in South China
# 100% responsible for the quality
# 1８years experience
# Oversea installation and training is available
2. Feature:
1.X10 zoom-in image makes programming easier&increase the accuracy of point setting.
2.Two sliding table provides simultaneously in-and-out movement to reduce the tack time for better productivity.
3.AUTO MARK offset system.CCD image could check&simulate the path or routing to reduce unnecessary mistakes before cutting.
4. Has routing bit life time checking and alarm system to remind the operator to change routing bits when it finishes 120M cutting. And routing bit first 2mm cut the first miling point, the middle 2mm cut the second milling point, the last 2mm cut the third milling point to increase its lifetime.
5. CCD image could check&simulate the path or routing to reduce unnecessary mistakes before cutting.
3. Parts List
| I. Hardware | |
| SPINDLE | KAVO spindle |
| CCD | Sony 520 line industrial cameras |
| LENS | Computer EX2C |
| Screw | TBI Precision ground ball screw imports |
| Guide | HIWIN widening Imported linear guide rail |
| MOTOR | Jiabao LCF Series |
| I/O CONTROL CARD | HFC PCI-9074 |
| DRIVER CONTROL CARD | HFC PCI-9074 |
| I/O CARD | PCI-9074-64pcs/-38pcs |
| Static cleanup | STATIC-ST401A Series |
| Computer | (RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G) |
| Machine interface | AOC LCD17",Logitech mouse |
| 2. software | |
| Control system | Windows XP Professional (Service3,v.3244) |
| Operation GUI | English Windows XP |
| Program edit | Inline |
| Vision system | CCD AOTU offset |
| Control system | F 1.2.88 version |
4. Parameters
| Overall | |
| Dimensions(W*D*H) | 1370mm*1650mm*1450mm |
| Weight | 650KG |
| Height offset | 60~110mm |
| Manipulator | |
| Motor type | Jiabao series |
| Positioning repeatability | 0.001mm |
| Axis working area(max) | 830mm*580mm*50mm |
| Work station | |
| PCB fixation | standard, specialization |
| PCB loading/unloading | manual |
| PCB size (max) | 320*320mm |
| PCB thick (max) | 5mm |
| Fixturing | |
| Rigidity fixturing | Use client fixture |
| Fixturing fixation | machinery |
| Spindle Motor | |
| Power | 150W |
| Spindle | 60000rpm/min |
| Protect | self/wind cooling |
| Change cutter | Specialization |
| Routing capability | |
| Cutting speed(max.) | 80mm/s |
| Driving speed(max.) | 2500mm/s |
| Precision of cutting | 0.01mm |
| Vacuum System | |
| Vacuum power | 3.5KW AC 380V |
| Vacuum | plumb |
| Utilities | |
| Power | 2.0KW AC380V |
| Air supply | 4-6KG/cm2 |
| Programming | |
| Program edit | Inline |
| Function edit | Line,arc,circular,U-curve |
| Program storage | HDD |
| Vision system | SONE color CCD |
| milling cutter offset | AUTO |
| Vacuum setup | AUTO |
| Operation Monitors | |
| Indicator | Indicator Machine state |
| tool check | Automatic detection tool life, the use of time testing |
| Motor protect | Have overheating, overload, low voltage protection function |
| motor overloading check | Have Overload, the line is normal, low voltage protection function |
| Tool usable time | Automatic detection tool life, |
| Data statistic | Separate board model, separating count, diverse counting methods |
| Error record | The software automatically records all alarms memory of machines |
| III. Accuracy | |
| Axis precision | 0.001mm |
| Cutting precision | 0.1mm |
| IV. Safety | |
| Working area protect | With four sealed protection |
| Door sensor | Front and rear safety door micro-switch sensor (optional) |
| Exigency stop button |
5. Advantages:
1. Using double slide into place device, reduce the cutting waiting times, increase production capacity.
2. Avoid artificial flap caused by the cracking of tin and part damage and other issues.
3. Avoid using blunt or fold, produced by mechanical stress.
4. Suitable for the finished plate arc and line cutting.
5. Suitable for small pieces of the final cutting, base plate of a mobile phone, PDA, PC interface card and so on.

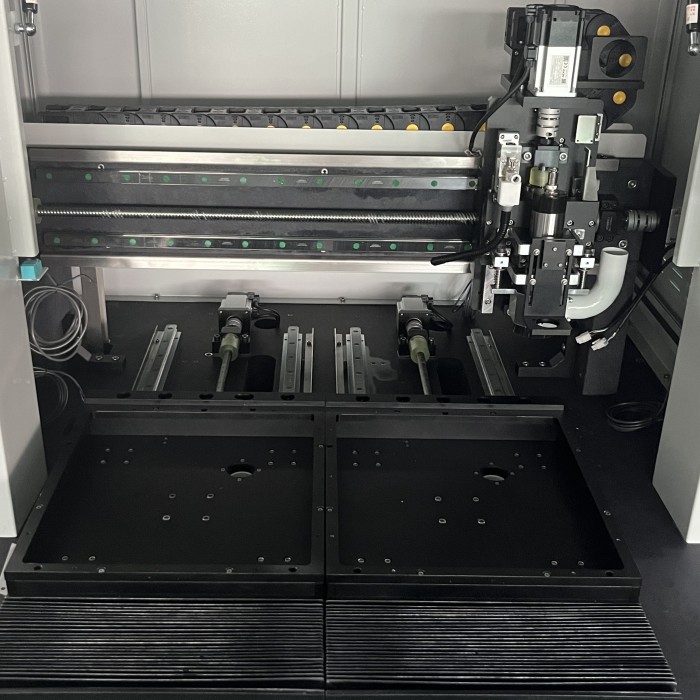

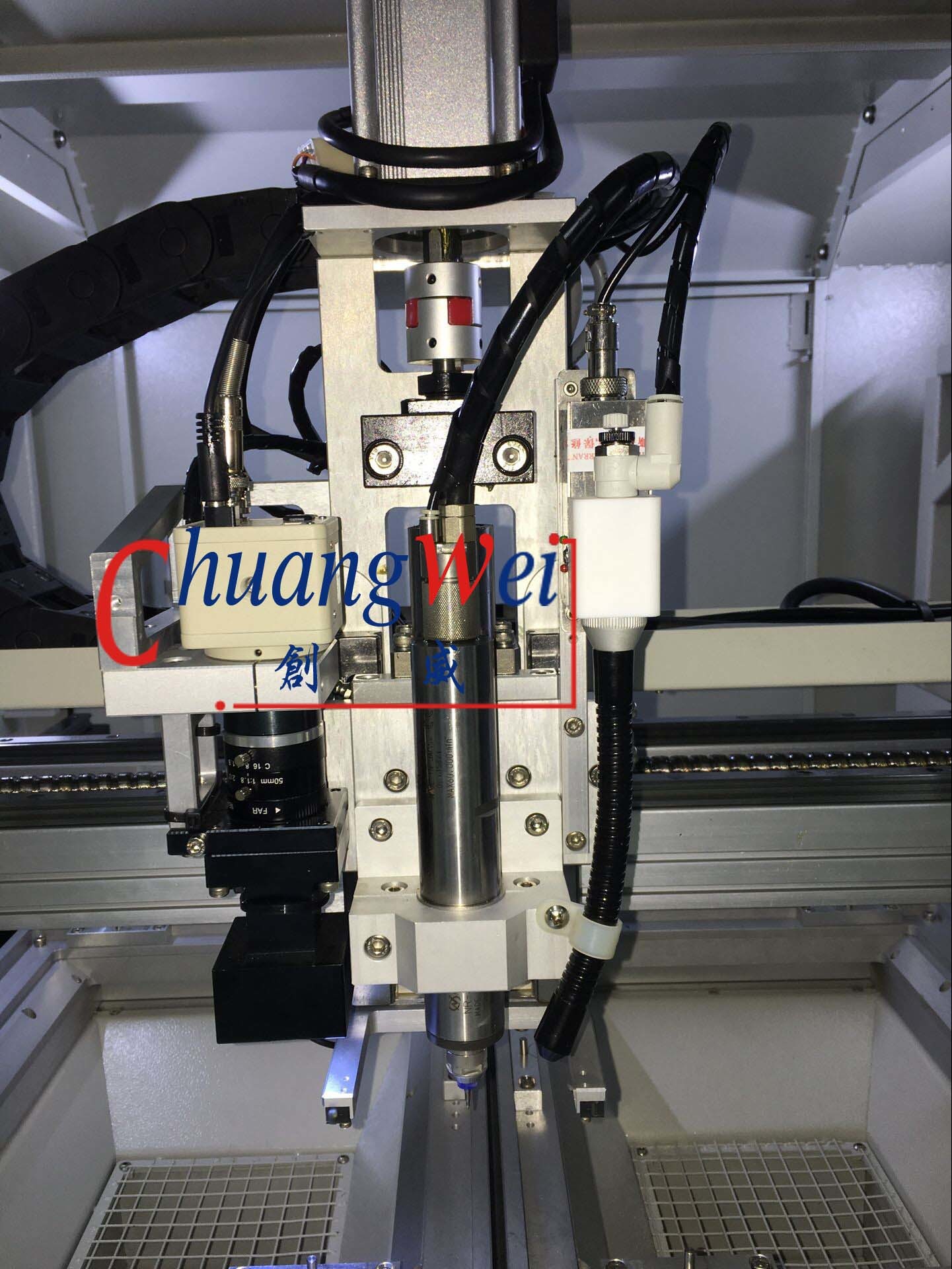

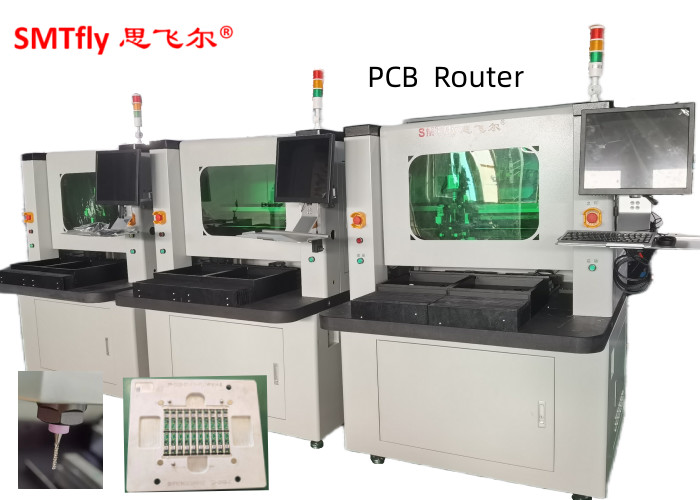

6. Detailed Photo:
