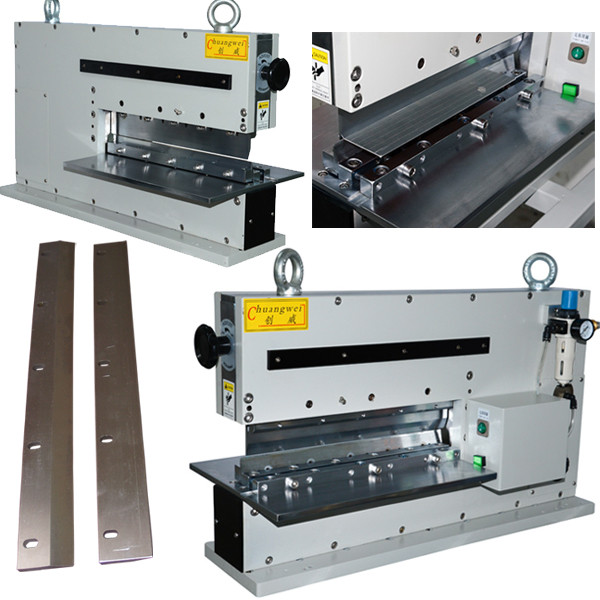

Easy Operate Pneumatic V-Groove Cutting Machine Pcb Separate CWVC-330 Feature:
1. Depaneling process without vibrations due to pneumatic drive unit.
2. Pneumatically driven and electromagnetic valve control.

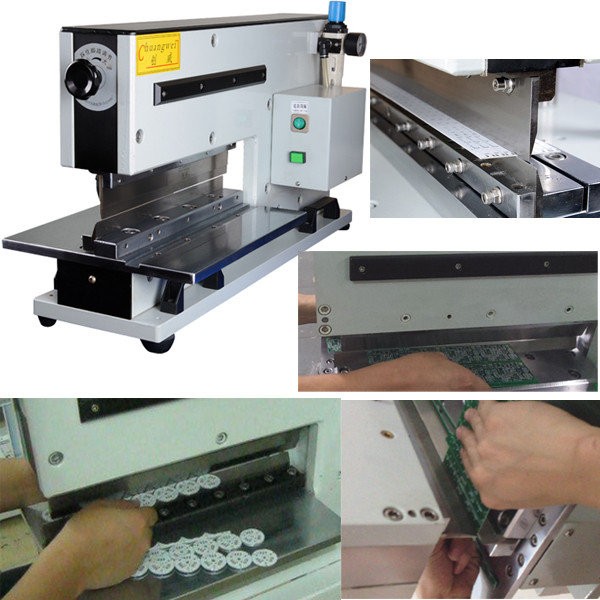

3. Depaneling operation is that operator stamps the foot pedal to Depanel PCB.
4. Depaneling PCBs with sensitive SMD, capacitors, or thin board even to 0.3mm can be depaneled safely.
5. Highest components near the v groove of PCB can be up to 70mm.
6. The minimum distance is allowed to be 0.5mm between the V groove and the electronic components.
7. Gap for insertion of PCB can be easy to adjust by the adjusting knob in front of the machine.
Specification
|
Model |
SMTfly-330 |
|
Max. PCB depaneling length |
330mm/270mm(Can custom made) |
|
PCB depaneling thickness |
0.3-3.5mm |
|
Voltage and Power |
110V/220V 10W |
|
Working air pressure |
0.5-0.7Mpa |
|
PCB depaneling speed |
due to operator skilled level |
|
PCB depaneling machine size |
620*230*400mm /570*210*400 |
|
PCB depaneling machine weight |
165kg /130kg |
Best Service
|
Engineers available to service machinery overseas. Engineers are available to be sent to foreign countries to do machinery training and offer technical support
|
|
Mature technique & forerunner to process makes high-quality machinery. As the largest manufactory in South China, we have 12 years of experience on PCB separator machines and soldering machines. PCB router Our R&D team continuously upgrades the existing machines to meet the market development trend.
|
|
One year warranty for the machines except for accessories. Robust frame construction and Japanese steel blades obtained good appraise and recognized by and overseas clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge
|
|
Effective customer service. All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and with departments, effectively communicate with one another, foster enthusiasm and participate in decision-making. To be sea reachable by customers and provide prompt replies to solve their problems and create value for customers
|
|
Our mission Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
|
|
Our Vision: Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
|
Sales network;
Our production flow:
CE approval
