Guillotine Type Pcb Depanelizer Depaneling PCB Aluminium LED Rigid Bar
Since more than 10 years our depaneling machines are developed and improved continuously , in order to guarantee unstressed separation of printed circuit boards. After extensive tests of the separation process a lot of automobile suppliers use exclusively the depaneling machines of the NTM series for the separation of their prescored panel boards . The machines use an infinitely variable sectional cut to depanel prescored panel boards in a gentle and clean way by avoiding damage to SMD components placed directly at the edges of the boards .
Advantages :
1. Max. PCB depaneling length is unlimted
2. Depaneling PCB without bending and tension stress
3. Safety use, easy operation
4. Depaneling process without vibrations
PCB depanelizer specifications :
| Model | SMTfly - 3 |
| Max. PCB cutting length | unlimited |
| PCB depaneling thickness | 0.3 - 3.5mm |
| Voltage and Power | 110V / 220V -- 10W |
| Working air pressure | 0.5 - 0.7 Mpa |
| PCB depaneling speed | due to operator skilled level |
| PCB depaneling machine size | 780 x 500 x 620 mm |
| PCB depaneling machine weight | 185Kg |
Features :
1 .The machine was designed to depanel pre-scored PCB carefully , without bending and tension stress .
2 . Even sensitive SMD-Components like ceramic capacitors , will not be damaged by the depaneling process , or thin board even to 0.3mm can be worked safely .
3 . Depaneling process without vibrations .
4 . PCB depaneling control method is by pneumatic-driven and electromagnetic valve .
5 . PCB control operation is that operator stamps the foot pedal to depanel PCB .
6 . Highest components near the v groove of PCB can be up to 50mm .
7 . Gap for insertion of PCB can be easy to adjust .
Video :
http://www.youtube.com/watch?v=313h1CQYz9w&feature=youtu.be
http://www.youtube.com/watch?v=mCCaaT56omw&feature=youtu.be (For 1.2 meter aluminium PCB CWVC-3 )
http://v.youku.com/v_show/id_XNTkxMTU0MDAw.html
Chuangwei PCB depanelizer machine SMTfly-3
Can be used with aluminum, FR4, CEM3 and other substrates
Keeping pace with mid-to-large volume production
Panelized flexible or ultra-thin PCBs
Densely populated PCBs with components located too close to the score line for standard depanelers to handle
Aluminum and metalized substrates (in addition to FR4, CEM3, etc.)

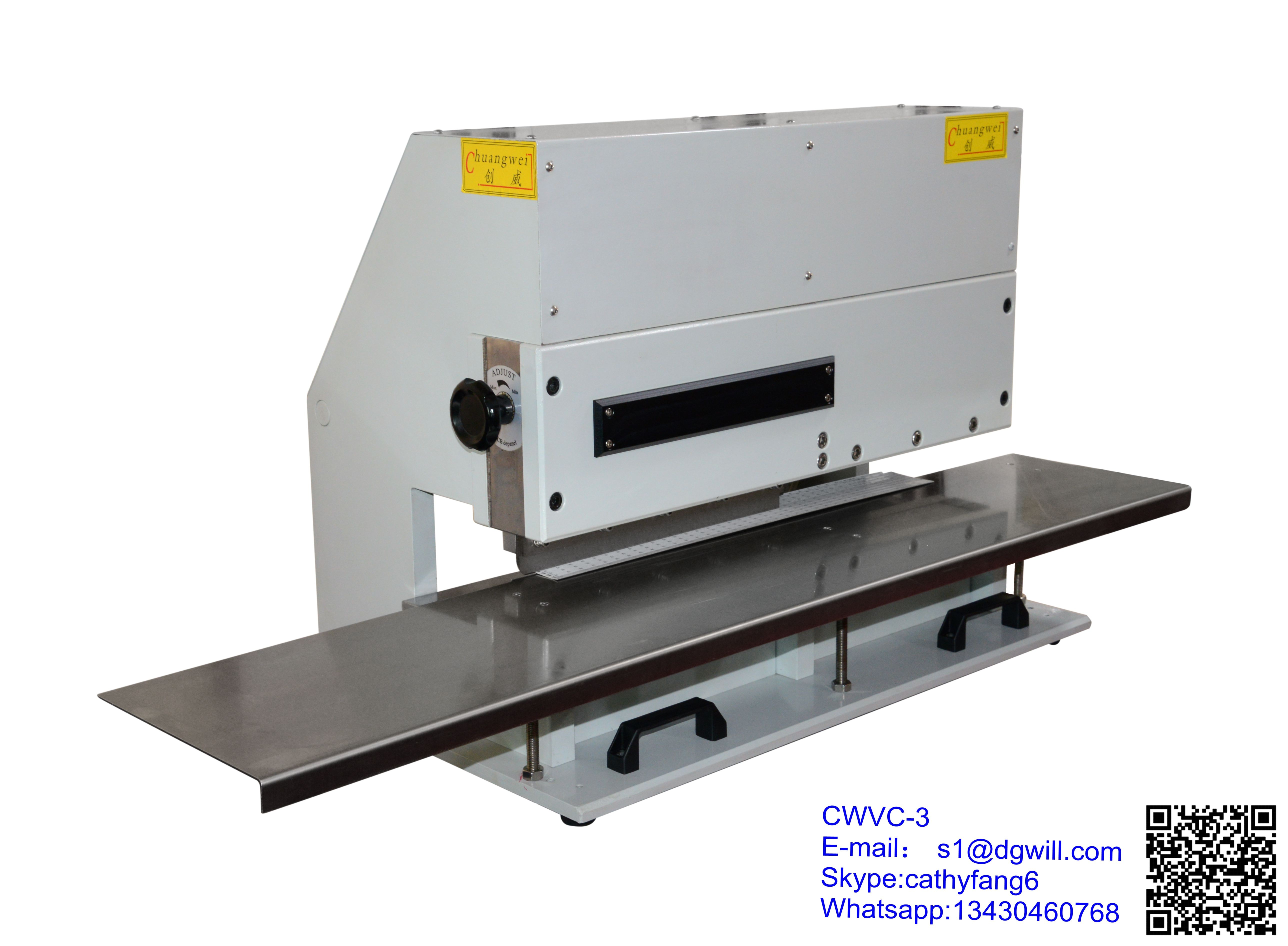

PCBs are separated by the CWVC-3 dual wedge-shaped knives in one gentle rocking motion that shears the panel along the score line, without stress or damage to the PCBs or components. Even when metalized circuit boards are processed – such as those populated with heat-generating LEDs that require heat-dissipating metal inner layers – this machine will easily make the cut.
