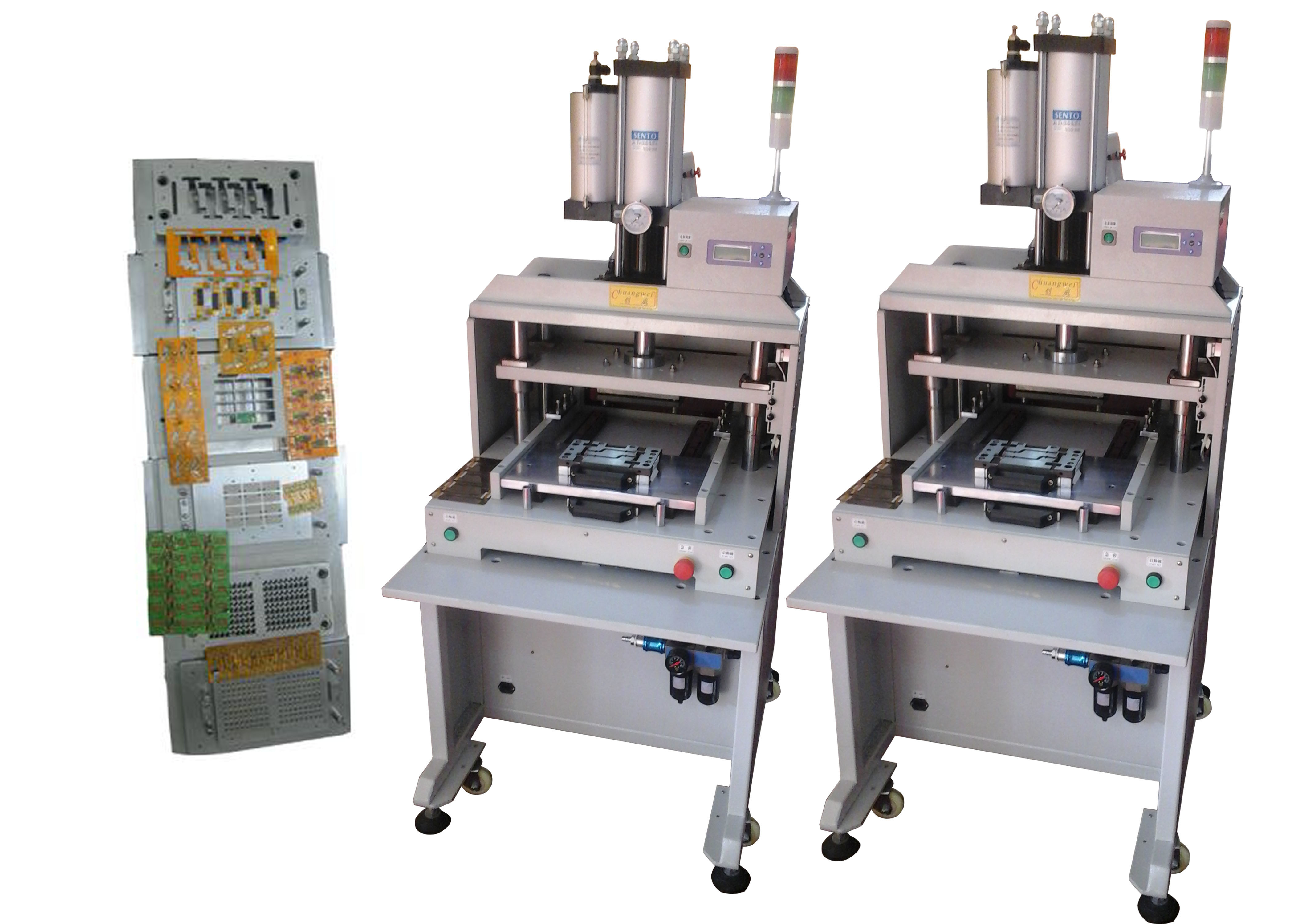

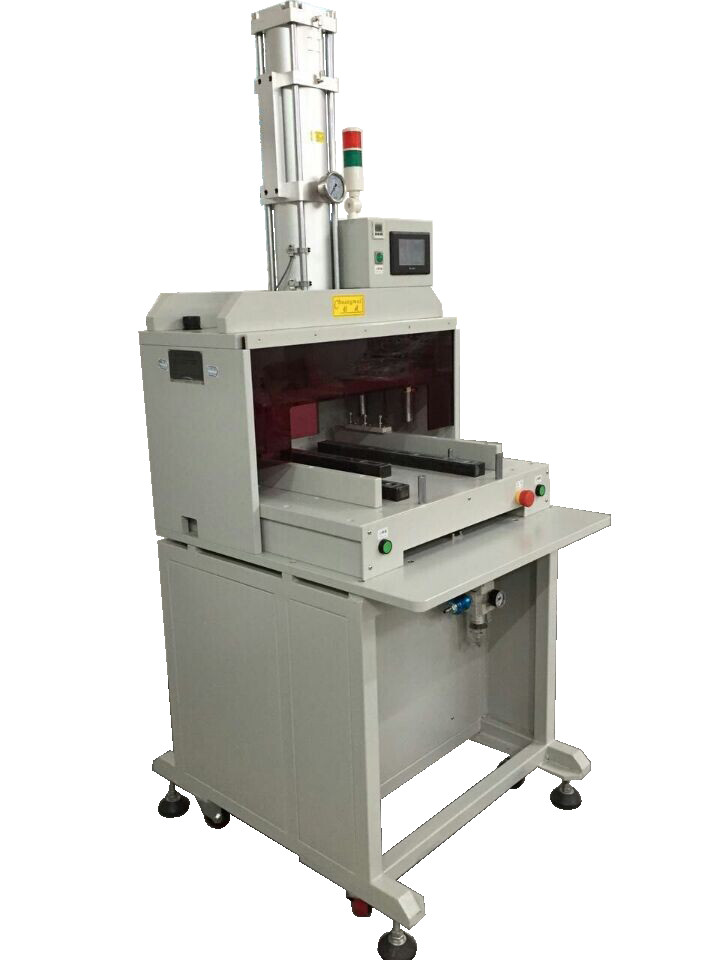

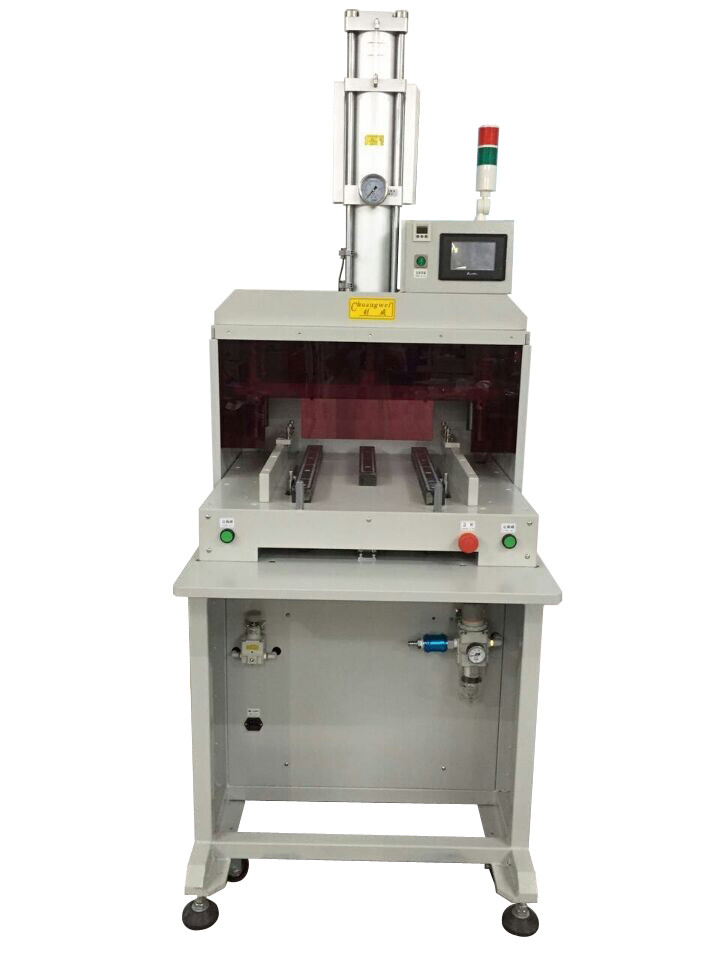

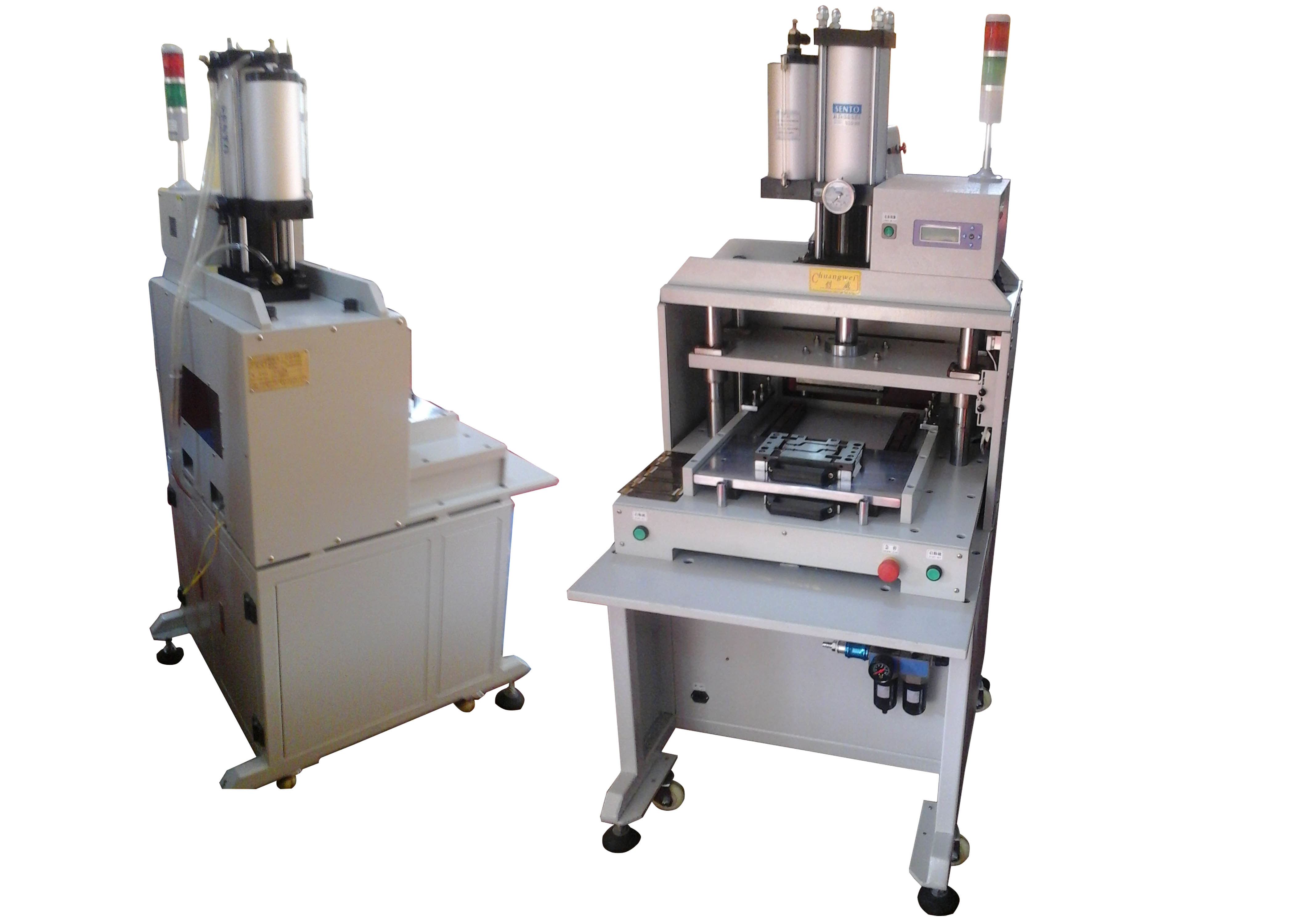

Die Tooling Punching Machine FPC Punch Equipment PCBA FR4 and Alum Board
Features for pcb punch machine :
This machine depaneling PCB/FPC by means of punching dies, to avoid micro-cracks caused by manual . Cast iron framework for rigidity . The Models are changeable and easy set up . Moveable lower die for easy loading and unloading PCB punch die/FPC die/PCB punch mold/FPC mold.
Detailed Product Description:
1. It is use for punching electronics , cell phones , computers , PCB , FPC ( flexible printed circuit board ) .
2. Other spare parts for punching molding
3. Mold made of SKH-11 Steel, Blades made of SKH-9(From Japan), rigorous Job . Dedicated
to high strength cutting , and excellent toughness
Technical characteristics:
1. Structural precision , the load evenly , to eliminate internal stress
2. Safe , easy operation
Punch Equipment Advantage :
This machine with highly automatic driven and suit for many molds.If customer need , we can make models according to the products.Efficient PCB put and pick . Punching pcb with less strees and avoid micro-cracks by manual .
PCB Punching Machine Specification :
|
Model |
CWPE |
|
PCB Area (mm) |
330*220 |
|
Contribute (Tone) |
8 |
|
Machine Size (mm) |
730 x 810 x1700 |
|
Power Supply (V) |
110 / 220 |
|
Machine Net Weight (Kg) |
530 |
|
Punch machine Guarantee (Year) |
1 |
|
Delivery Time (Day) |
7 |
|
Min. Order (Set) |
1 |
|
Supply Ability (Set) |
1000 sets / year |
Our PCB Punch Machine Advantage :
1. CWPE PCB Punching machine original manufacturers, price concessions
2. Supply technical support services every day
3. Limit the handling of complaints, half an hour back to customers
4. Depanel Experts, the provision of professional PCB sub-programme
5. Reliable machine maker,we get Experts--15,each one got over 10 years experience,equipment quality will be satisfying.
