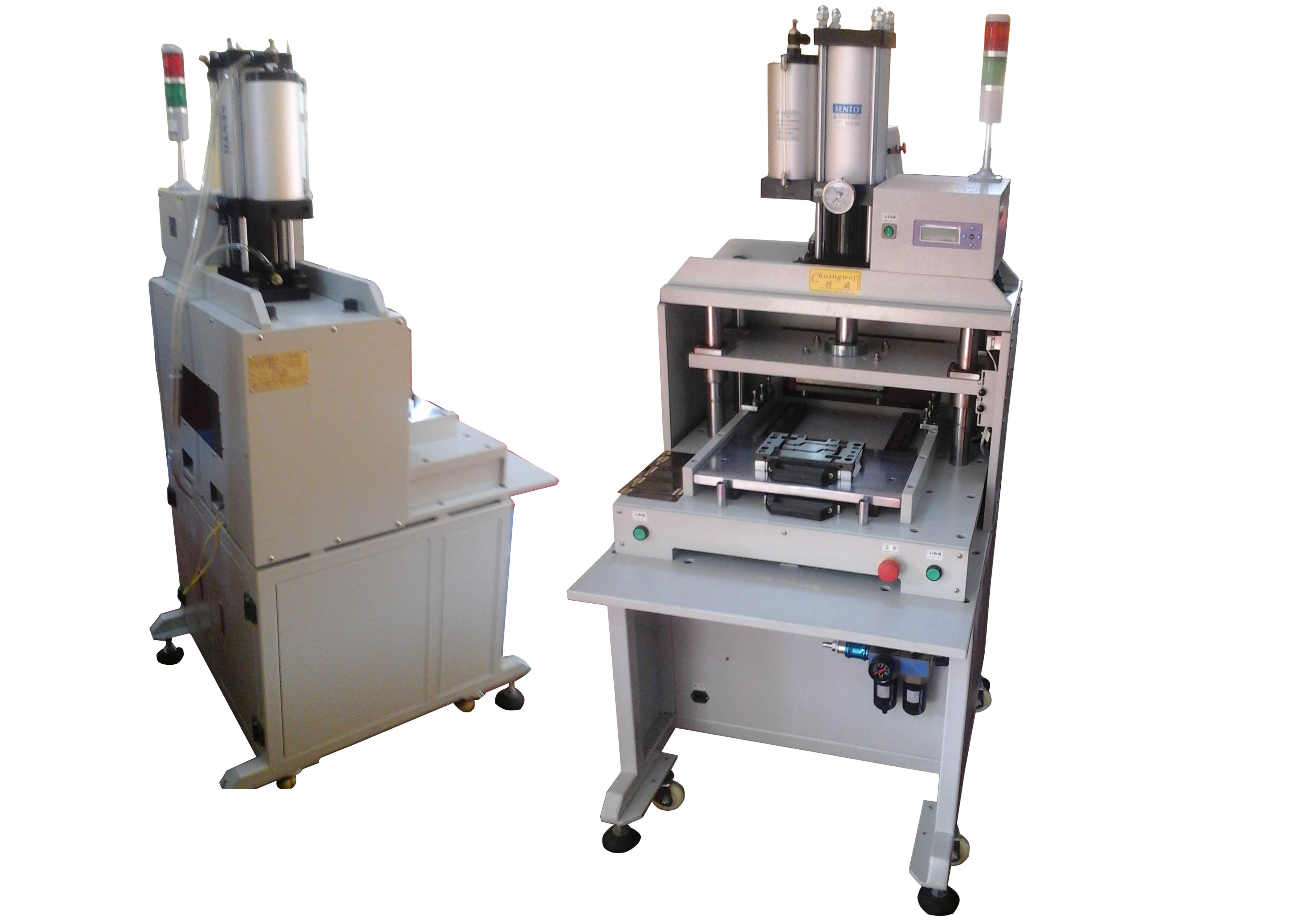

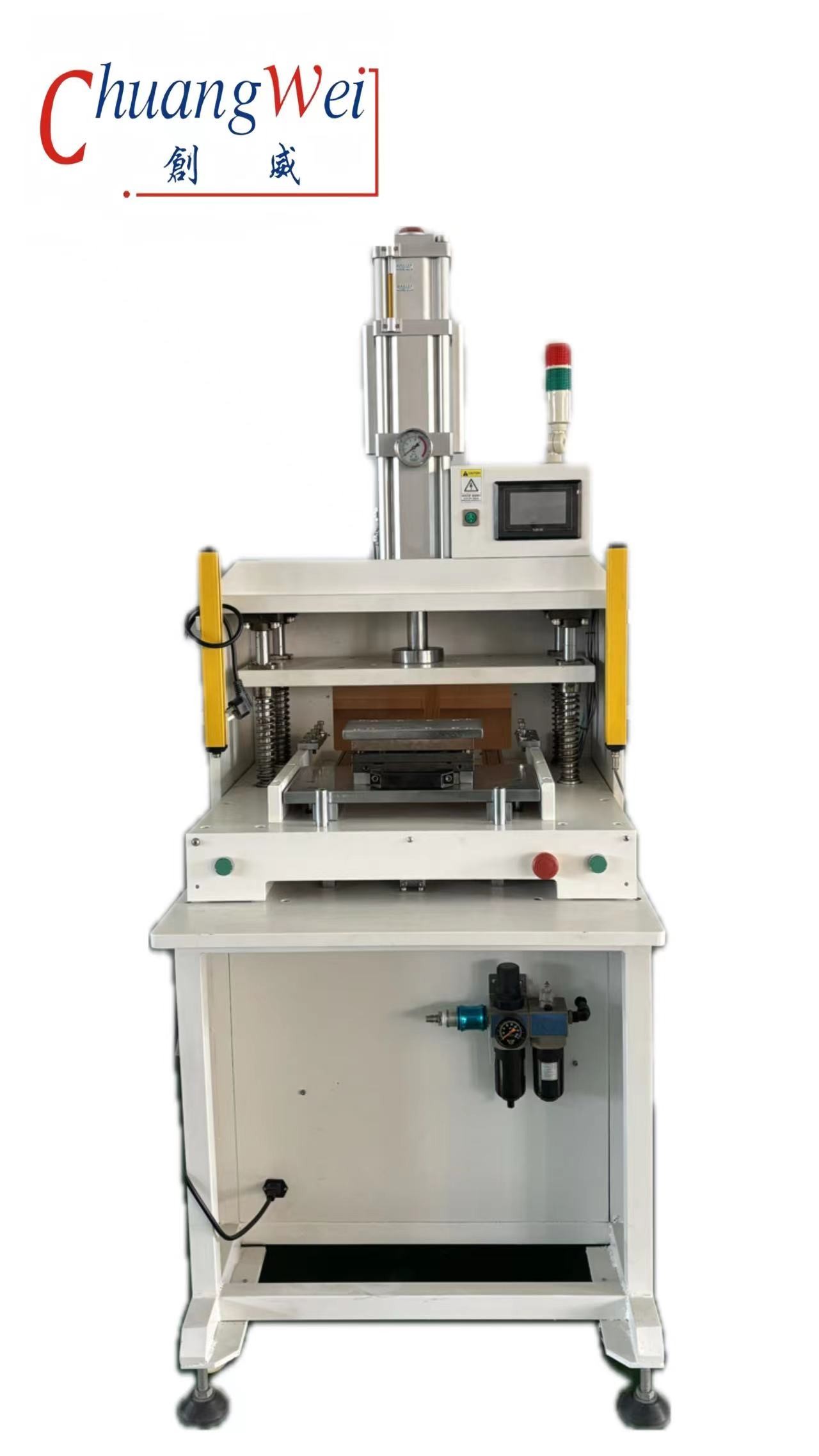

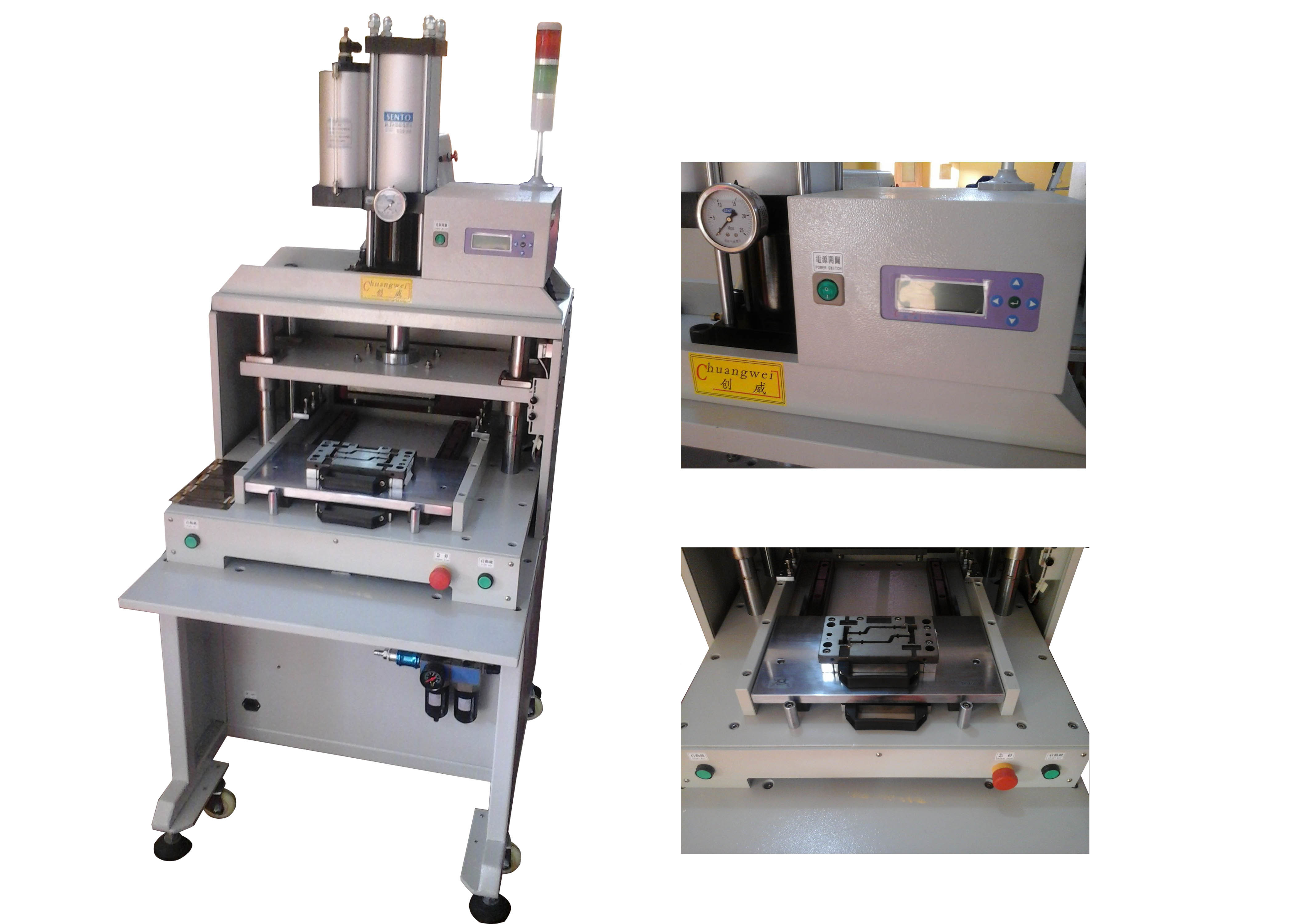

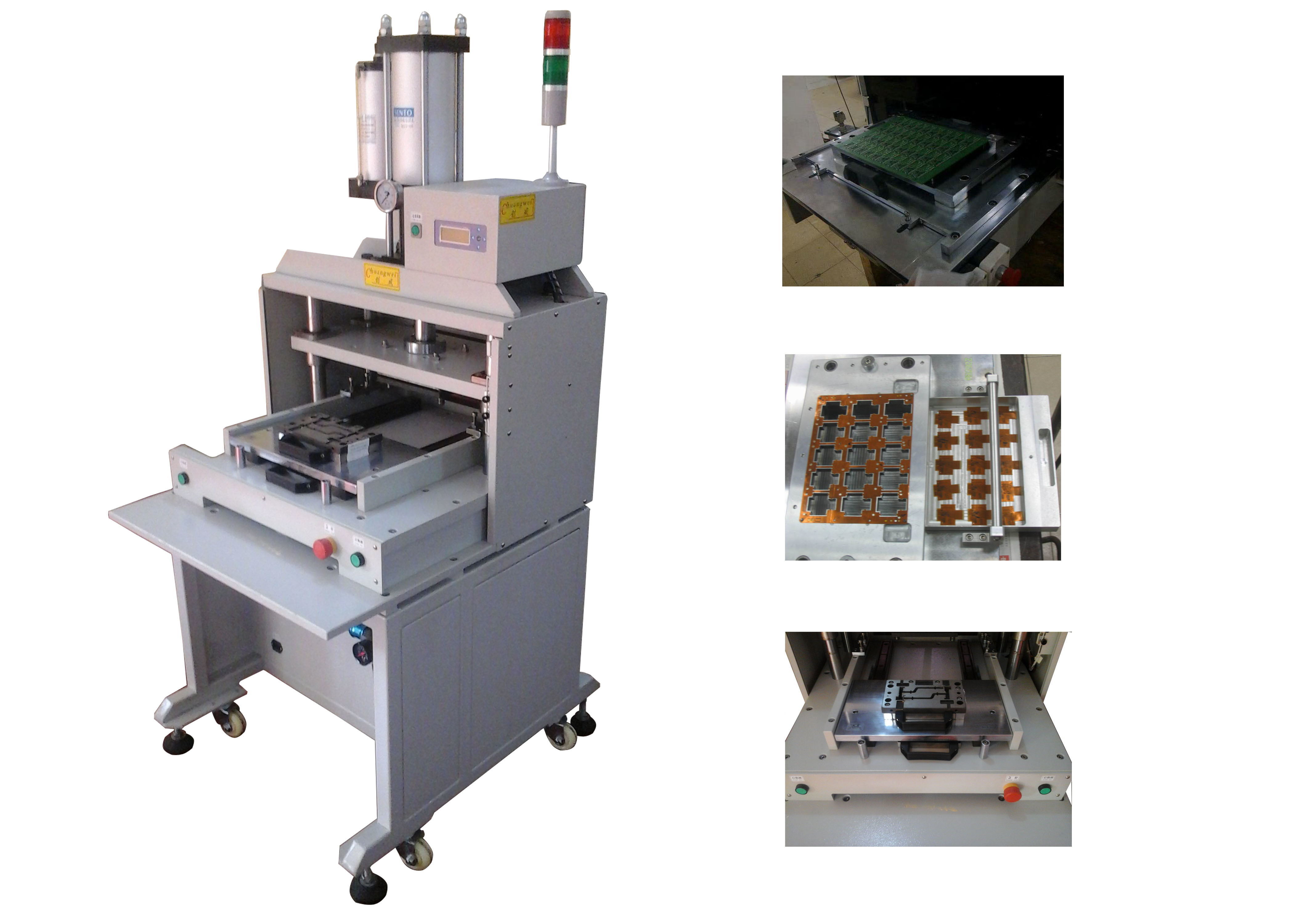

Automatic Curve Fpc / Pcb Punching Machines With High Presion Tooling
PCB punching machine :
1 , Apply to cut Rigid pcb,Flexible pcb ( FPC ) , Rigid-Flexible pcb
2 , Use punching mould to cut with high efficiency
3 , Can replace multiple mold for production and mold changing easily
4 , The operation is simple and safe
PCB punching machine specifications :
| Model | CWPE |
| Punch Contribute ( T ) | 3 ( can custom made up to 30T ) |
| Working area ( mm ) | 330 * 220 ( can custom made ) |
| Voltage( V ) | 110 / 220 |
| Working air pressure ( Mpa ) | 0.5 - 0.7 |
| Size ( mm ) | 730 * 810 * 1700 |
| Weight ( kg ) | 530 |
PCB Punching Machine Features :
1 . Machine has strong structure and moves easily with 4 Casters.
2 . can replace a variety of mold, and mold changing easily .
3 . the lower mold automatic in and out , easy to pick and place products , finished products can fall into the drawer .
4 . make internal stress generated by PCB cutting to minimize and avoid tin stress cracking .
5 . punching cutting semi-finished PCB with high efficiency .
6 . mould and die can be made according to customer's request .
PCB punching machine video please see below : (CWPE )
http://www.youtube.com/watch?v=IE4A6K3xklU&feature=youtu.be
http://v.youku.com/v_show/id_XNjAzMzcxMzY4.html
About us :
|
Dongguan ChuangWei Electronic Equipment Manufactory was founded in 2004,is located in the world manufacturing city Dongguan,Guangdong,China. The company is committed to development,manufacture,sales and service for professional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team, half of them have over 10 years experience in electronic equipment industry. |
|
Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine. From then on we pay more attention to product quality, safe to use and product innovation, so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers. |
|
Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual, motor-driven, pneumatic-driven, mold punching, milling cutter router. Due to the good quality and reasonable price our customers are all over the world. Up to now ChuangWei have became one of the biggest PCB separator production base in China |
|
Company always insists to the "customer needs is our goal, creating most value for customers", strives to provide customers with first-class products, first-class service. So since date established we very attached importance to product quality,continuous improvement for manufacturing process,try hard to save money for customers.
|
|
Our great mission is to be the most professional and excellent supplier in the pcb separator/pcb depanelizer electronic equipment industry. |
CE certification
