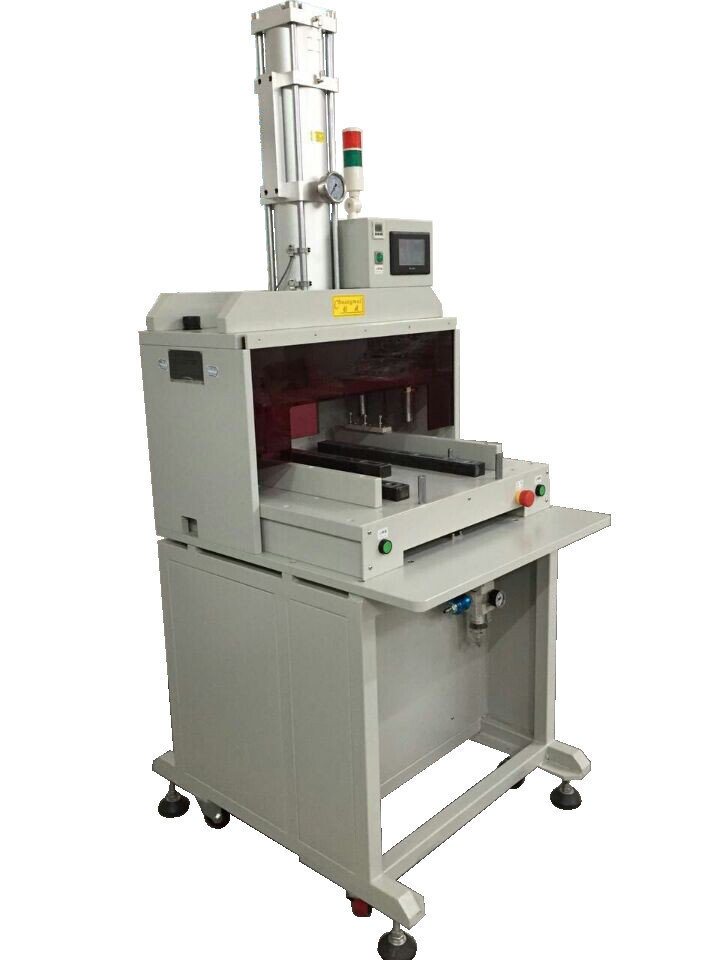

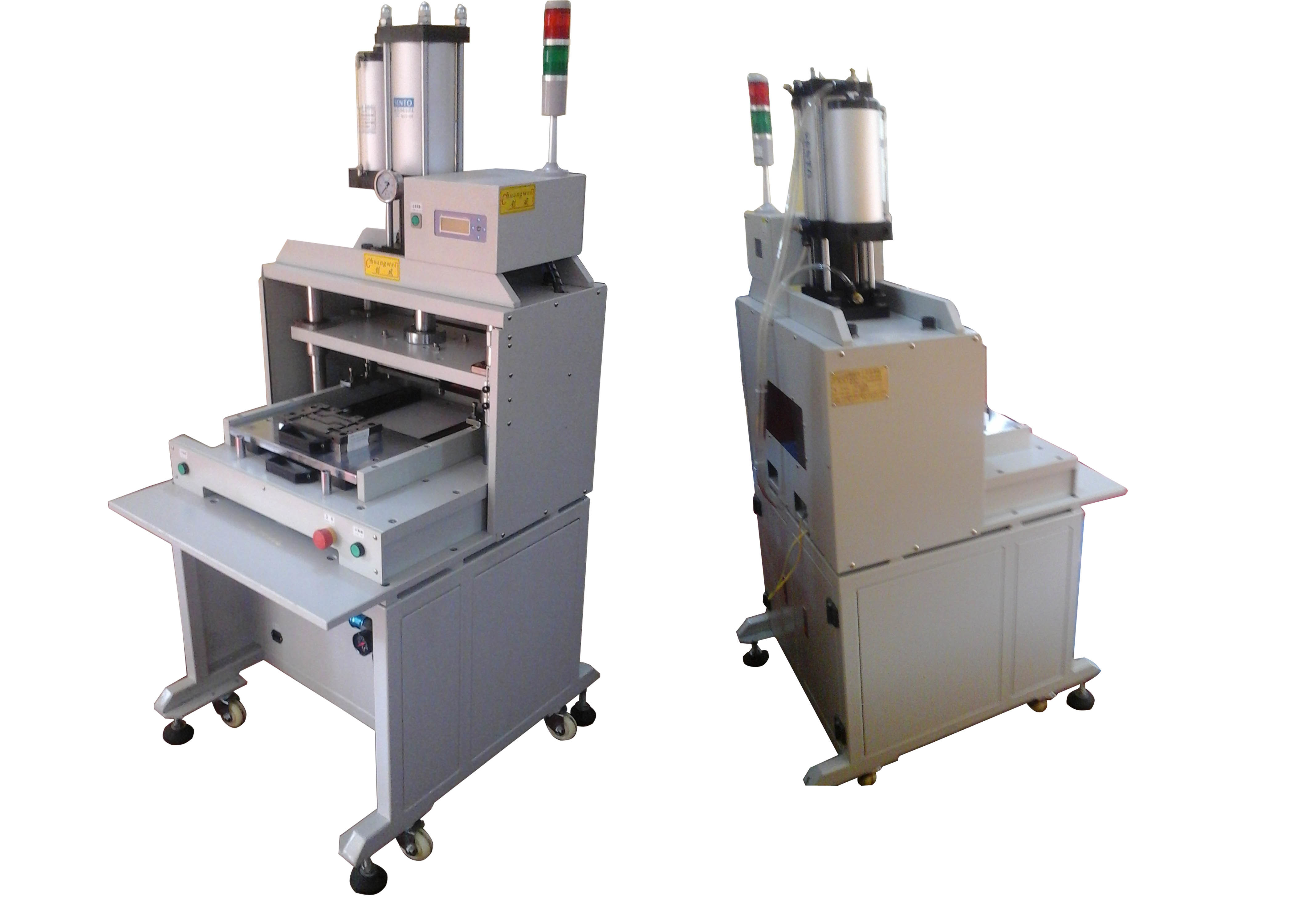

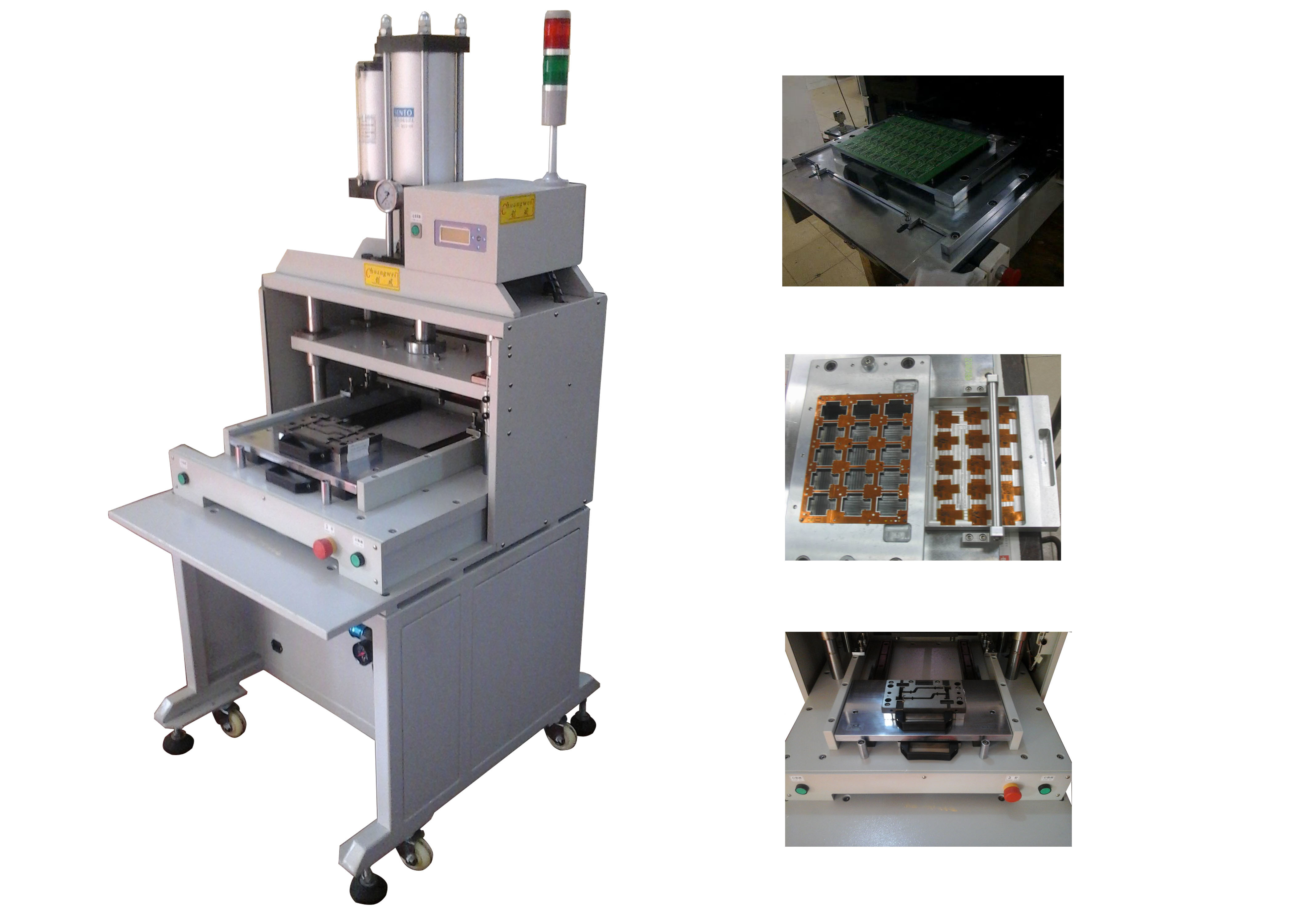

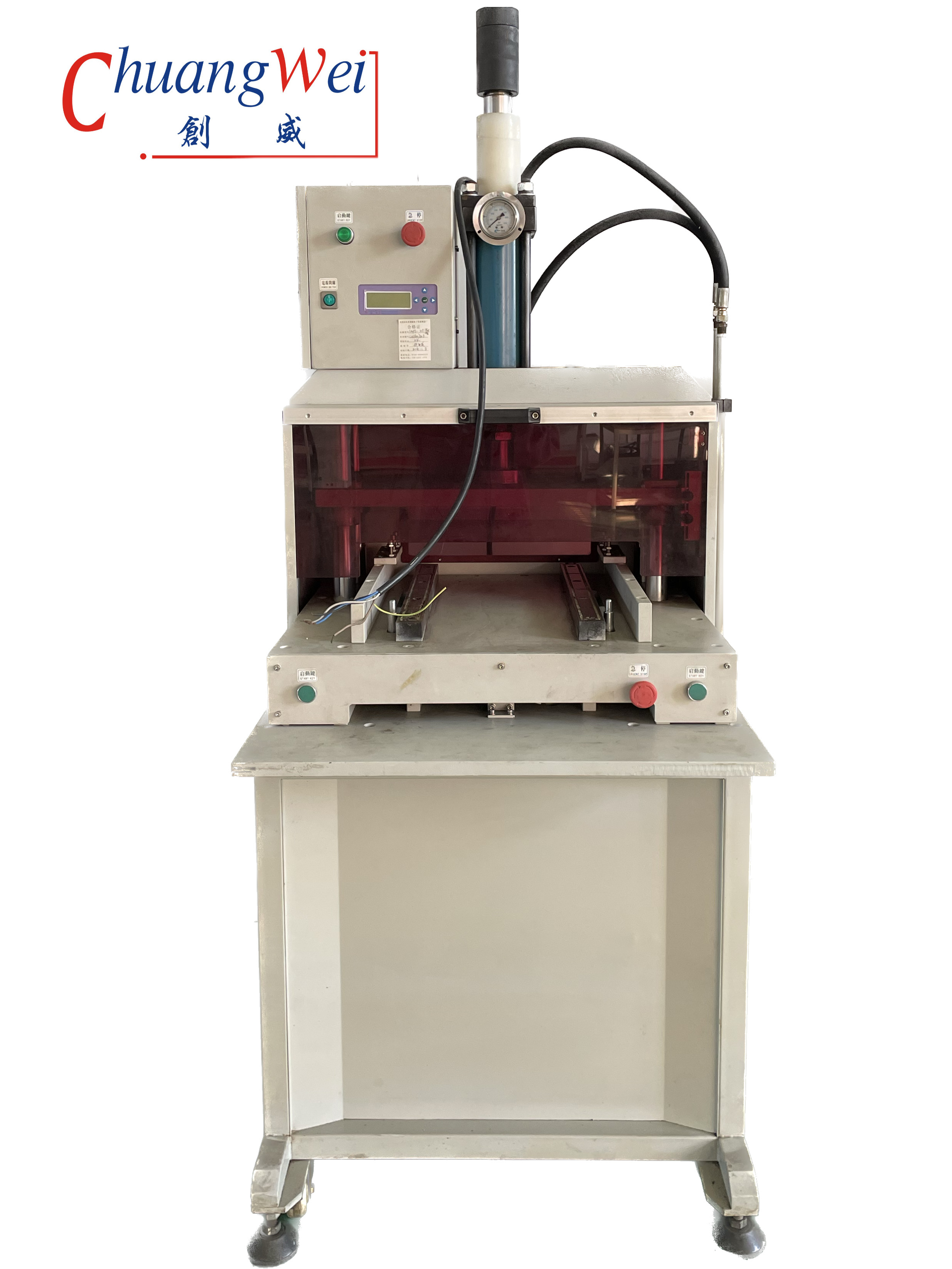

Automatic Pcb Punching Machine,Fpc / Pcb Punch Depaneling Machine for SMT Assembly
1. Depaneling PCB/FPC by means of punching dies, to avoid micro-cracks caused by manual.
2. Cast iron framework for rigidity. Punching dies are changeable. Easy set up of punching dies.
3. Moveable lower die for easy loading and unloadingPCB punch die| FPC die| PCB punch mold| FPC mould
PCB/FPC Punching machine is a kind of convenient and efficient tool for PCB production. It is used for punching holes on the edges of PCB or FPC, so as to avoid micro-cracks caused by manual. The punching dies are changeable according to different panel thicknesses. The lower die can be moved back and forth for easier loading/unloading. Cast iron framework ensures the rigidity of this machine while punching. It is widely used in PCB industry such as panel number plate maker, solar power module manufacturing plant etc
Specifications:
|
Model: |
CWPE |
|
Size: |
730 X 810 X 1700 mm |
|
Power supply: |
110/220 v |
|
Depression: |
0.45-0.70 Pa |
|
Weight: |
530/700 Kg |
This PCB punch machine is designed according to the characteristics of PCB and FPC, it can manually remove the components of PCB/FPC and then punch them. The punching die will not be damaged by the micro-cracks caused by manual depaneling process, thus improving the work efficiency and quality of the finish products.
PCB Punching Machine is one of the best PCB depaneling solutions. With the latest hydraulic design and automated hydraulic operation, it take you only a few minutes to change the punching die, which greatly reduces production costs. Cast Iron frame ensures rigidity and stability of this machine.
Competitive Advantages:
1. CWPE Pcb Punching machine original manufacturers, price concessions
2. Day technical support services
3. Limit the handling of complaints, half an hour back to customers
4. Depanel Experts, the provision of professional PCB sub-programme
