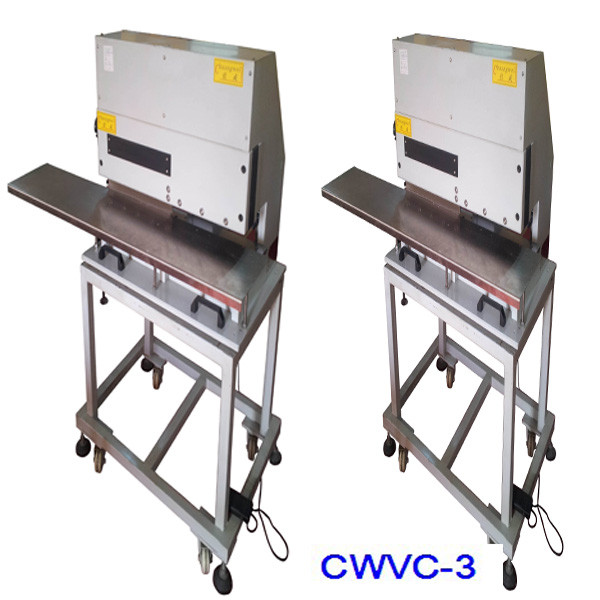

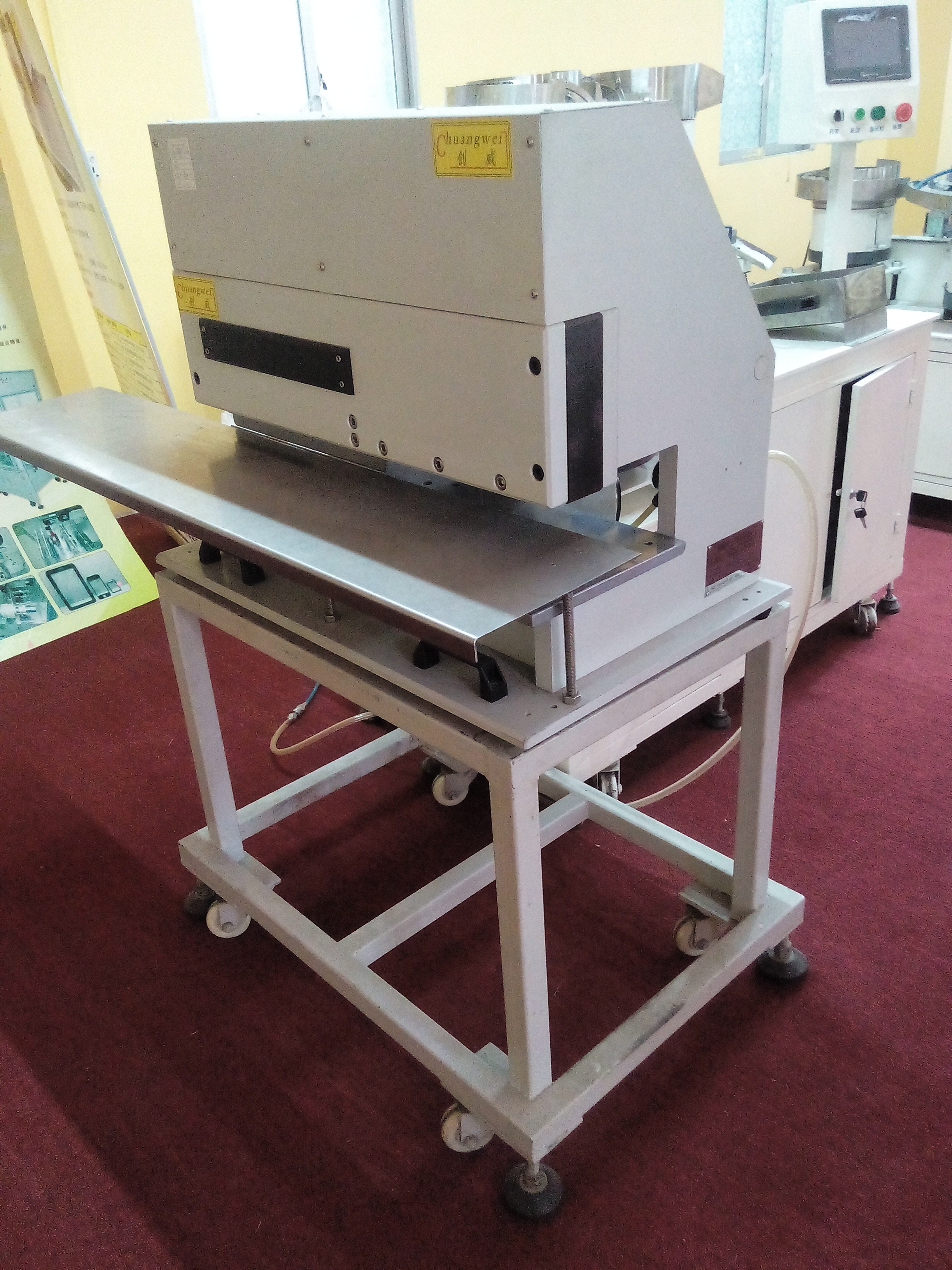

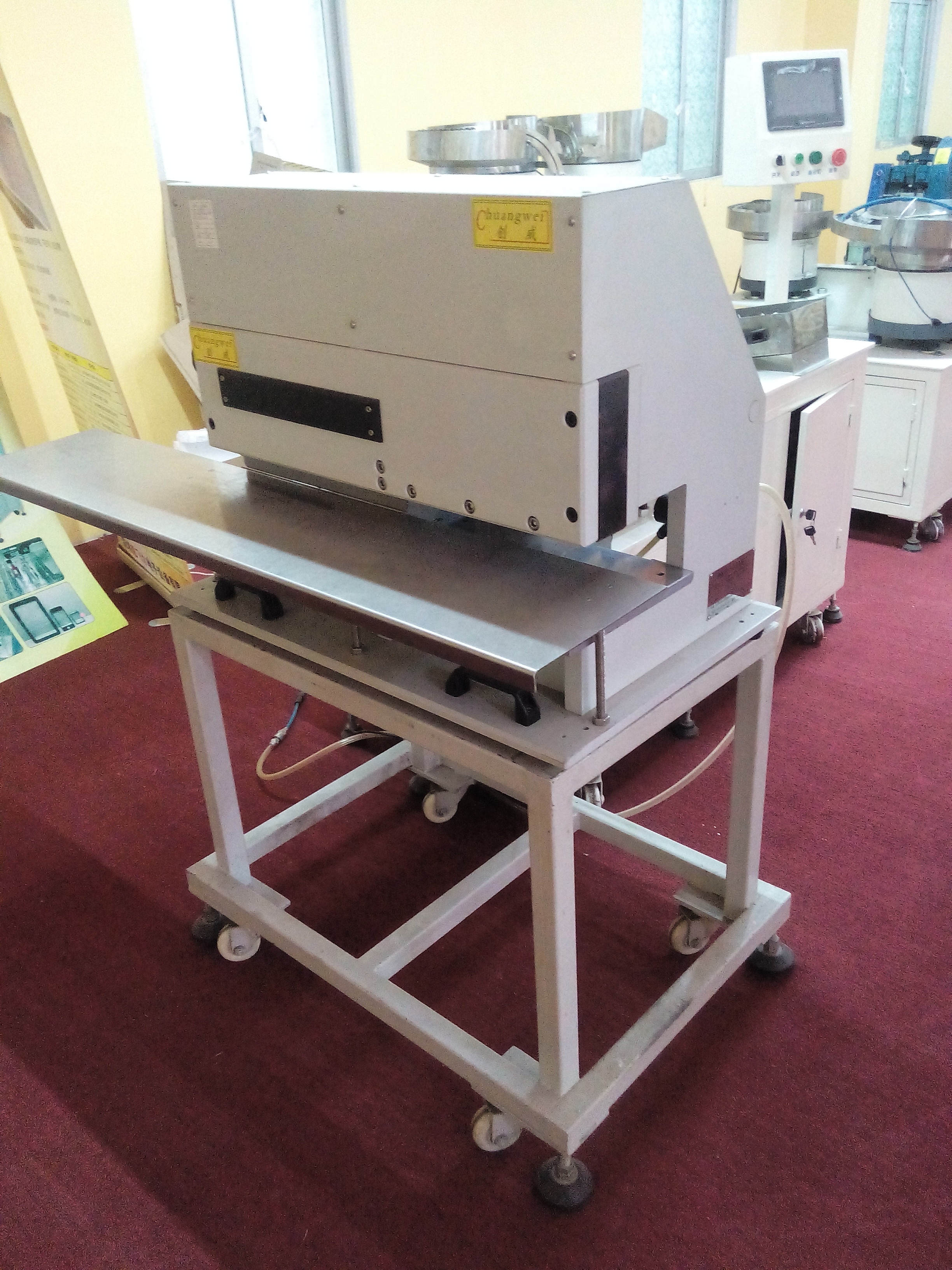

0.4mpa Work Pressure High Speed PCB V Cut Machine L460mm

High Efficient Pcb Cutter Multi-groups Blade Led Separator With High Capacity

specifications for pcb cutter:

Our Competitive Advantage :

SMTfly-3 Pcb Cutter original manufacturers with competitive price . Supply day technical services    and Limit the handling of complaints , half an hour back to customers    . Depanel Experts , the provision of professional PCB sub-programme.

Applications :

Cutting the aluminum base boards , FR4 , fiber glasses , pcba , etc.
please leave a message to the email:s1@dgwill.com

Features :


Cutting with the double straight knives , it is especially suitable for the segmentation of precision SMD sheet and aluminum PCB .
With guillotine operation , it applies to PCB of all kinds of thickness, whose board schedule is less than 1-2mm, so there is no concerns about safety .
The inner stress when cutting will be under 180ue , in case of a solder crack and the damage of precision components .
The minimum width between the edge of V-groove and the parts is 0.3mm , and the maximum height is 70mm .
We provide free grinding of the blade after its abrasion .

Advantages :

1. The cutting rate is one segmentation for one second , controlled by pneumatic pedal switch
2. The starting of the cutting set is for passive , so that the cutting tangent and position is under secure control . With little stress when cutting , there will no solder crack .
3. With cutting of nonroller (circular knife, straight knife ) type , there is no dust , no motor drive , and no carbon powder pollution .
4. With no-rubbing type cutting , there is no metal residue .
5. The blade can be used 600000 / times without power supply , avoiding the loss and change of electrical products .
6. The machine uses 5-7kg air compressor without specific cutting place , and it is maintained by wiping its appearance with the anti-rust oil  .
