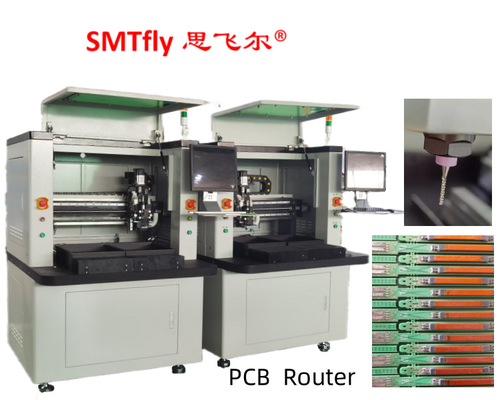

0.1mm Cutting Precision PCB Router Machine with Left Hand 0.8-2.5mm Routing Bits
Our Service:
1. Pcb depanelizer original manufacturers, price concessions
2. Promise day technical support services
3. Limit the handling of complaints, half an hour back to customers
4. Depanel Experts, the provision of professional PCB sub-programme
5. On-site installation and training is available
Features:
1. Smooth cutting finish only by router cutting .
2. There is little distortion on PCB during cutting because using high-frequency spindle motor . It is 1 / 10 of pressing , 1 / 100 of breaking by hand
3. One-touch program changeover .
4. Able to cut liner and arc with router machine , diminish the restriction on PCB design .
5. Read QR code or JIG BIT auto select cutting program , or check accordance between cutting program and JIG .
6. Powerful Dust Collection minimized dust adhesion on PCB .
7. Developed high performance router bit that expanded bit life and relief littering .
8. Cut down PCB cost because need not making V-groove on PCB
Specification:
| Overall | |
| Dimensions(W*D*H) | 1220mm*1450mm*1420mm |
| Weight | 650KG |
| Height offset | 60~110mm |
| Manipulator | |
| Motor type | JiaBao <span vertical-align:baseline;"="" style="box-sizing: border-box; font-style: inherit; font-weight: inherit; font-size: inherit; line-height: 24px;">series |
| Positioning repeatability | 0.001mm |
| Axis working area(max) | 680mm*360mm*50mm |
| Work station | |
| PCB fixation | standard, specialization |
| PCB loading/unloading | manual |
| PCB size (max) | 450mm*350mm |
| PCB thick (max) | 5mm |
| Fixturing | |
| Rigidity fixturing | standard |
| Fixturing fixation | machinery |
| Spindle Motor | |
| Power | 400W |
| Spindle | 60000rpm/min |
| Protect | self/wind cooling |
| Change cutter | Specialization |
| Routing capability | |
| Cutting speed(max) | 100mm/s |
| Driving speed(max) | 3000mm/s |
| Precision of cutting | 0.01mm |
| Vacuum System | |
| Vacuum power | 2.2KW AC 380V |
| Vacuum | plumb |
| Utilities | |
| Power | 2.2KW AC380V |
| Air supply | 2~5KG/cm2 |
| Programming | |
| Program edit | Inline |
| Function edit | Line, arc, circula, U-curve |
| Program storage | HDD |
| Vision system | SONE colour CCD |
| milling cutter offset | AUTO |
| Vacuum setup | AUTO |
| Operation Monitors | |
| Iindicator | Iindicator Machine state |
| tool check | Automatic detection tool life, the use of time testing |
| Motor protect | Have overheating, overload, low voltage protection function |
| motor over loading check | Have Overload, the line is normal, low voltage protection function |
| Tool usable time | Automatic detection tool life, |
| Data statistic | Separate board model, separating count, diverse counting methods |
| Error record | Software automatically records all alarms memory of machines |
| III. Accuracy | |
| Axis precision | 0.001mm |
| Cutting precision | 0.1mm |
| IV. Safety | |
| Working area protect | With four sealed protection |
| Door sensor | Front and rear safety door micro-switch sensor (optional) |
| Exigency stop button |
More information welcome to contact us:
Email: sales@dgwill.com
