Name: In line PCB Router Machine 0.5mm Thickness CNC Printed Circuit Board
Brand: SMTfly
SKU: SMTfly-F01-S
Rating: 4.5 (161 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Description: PCB Router Separator

Work Area: 320*320mm

Table: 2

Warranty: One Year

PCB Thickness: 0.5-3.5mm

Spindle Speed: 60000RPM

High Light:

0.5mm Printed Circuit Board Router

0.5mm pcb cnc router

60000RPM Printed Circuit Board Router

Basic Infomation

Place of Origin: Dongguan

Brand Name: SMTfly

Certification: CE ISO

Model Number: SMTfly-F01-S

Payment & Shipping Terms

Packaging Details: each set be packed in carton boxes

Delivery Time: 1-3 days after payment confirm

Payment Terms: T/T, L/C,paypal

Supply Ability: 300 sets per month

Gallery

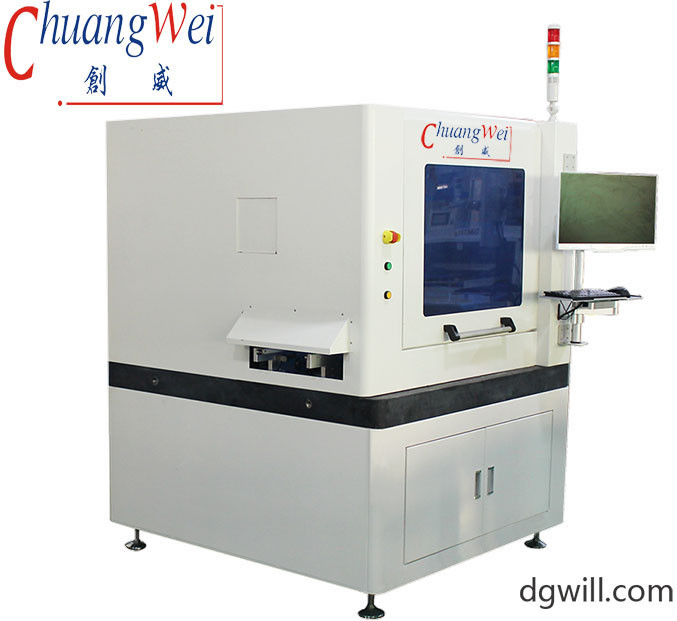

In line PCB Router Machine 0.5mm Thickness CNC Printed Circuit Board

Product Description

In Line PCB Router Machine 0.5mm Thickness CNC Spindle Printed Circuit Board 60000rpm

Features:

1.Splitting machine can be automatically docked to the production line, saving labor costs

2.Mark point automatic alignment, intelligent correction error

3. Broken knife and sliding knife monitoring, to ensure the normal use of tools

4. Automatic tool change, no need for manual tool change.

5.Followed by dust removal, dust removal effect is good.

Speicification:

Specification
X Y Z Stroke:45060060mm	Into the board direction: left into the right out
Depanel thickness:0-5mm	Cutting range:330mm*330mm
Cutting speed:0~100mm/s adjustable	Machine Size :L1800D1100H1600
Cutting shapes: straight, L-shaped, square, round, curved	Machine Weight :约900KG
Spindle motor: German high-speed motor	Host Control: Advantech Industrial Computer
Static electricity elimination: SMC Ion Generator	Servo system: Fuji servo
position accuracy:±0.01mm	Input Power :AC220V/50Hz
Screws/Guides:HIWIN/THK	空气消耗:10N1/Min
Track width adjustment: automatic track adjustment	Inlet plate thickness :0.6mm-5mm

In Line PCB Router Detailed Photoes:

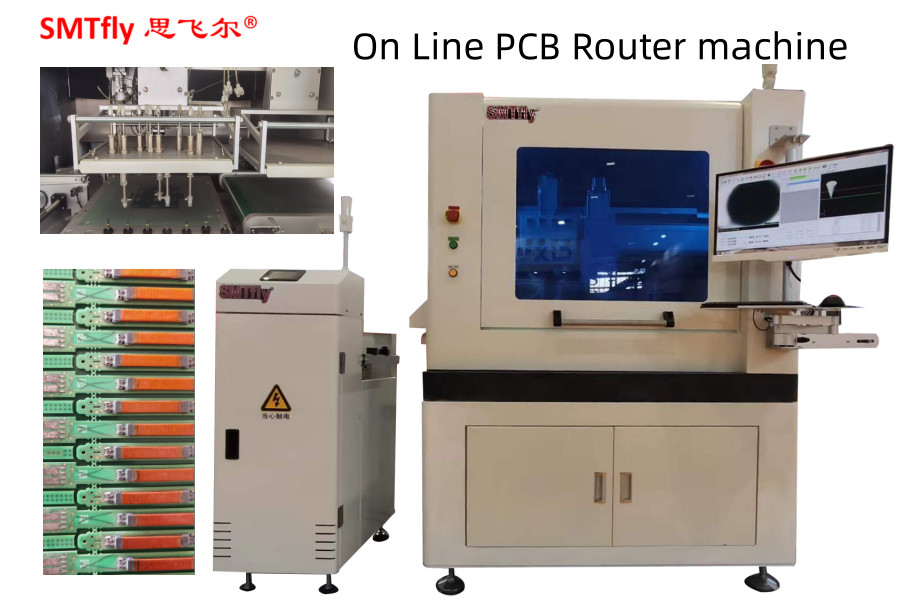

In line PCB Router Machine 0.5mm Thickness CNC Printed Circuit Board 0

PCB Depanel Router Fixture:

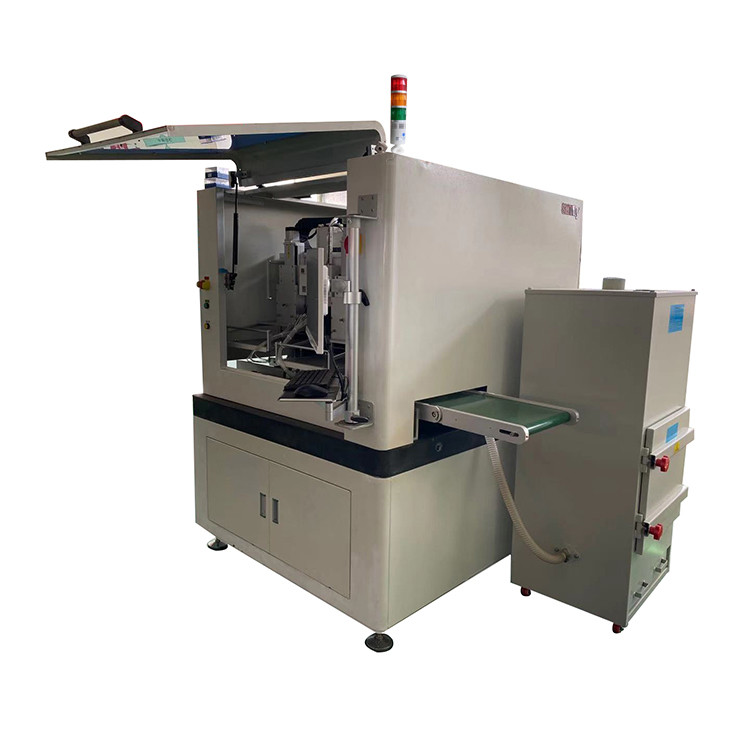

In line PCB Router Machine 0.5mm Thickness CNC Printed Circuit Board 1

More information welcome to contact us:

Email: sales@dgwill.com

Tag:

Contact Person :	Eric Cao
Tel :	86-13922521978
Fax :	86-769-82784046
