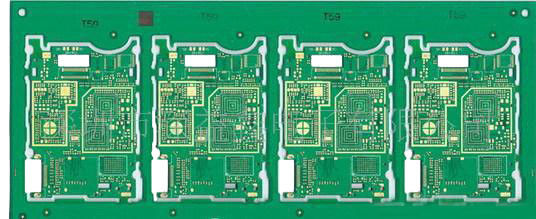

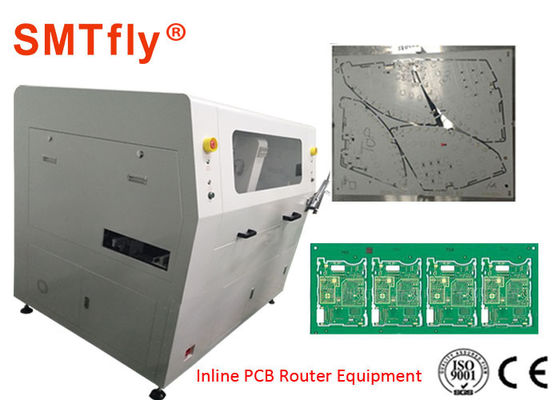

PCB Depaneler PCB Routing Machine with Windows 7 Operation System Quick and Efficient PCB Singulation
When considering the numerous methods available for PCB singulation, it is difficult to decide which might be the best. At SMTfly we propose that our PCB routers are the most efficient, and quickest way to singulate PCB's. For stress free depanelization we utilize a router bit which minimizes the stress on components, therefore keeping them intact and working proficiently. The router bit adjustment system will automatically shift up to 5 different depth levels, which will cut down on bit replacement. Router bit cutting speed has a maximum of 50mm per second, while the traveling speed is a maximum of 800mm per second. Our PCB routers also contain a high speed spindle which will sustain precision while speeding up the process. The frame is sure to hold up with precise ball screws employed on an X, Y, Z axis, and be speedy with a spindle motor that creates up to 60,000rpm spins.
Flexible panel designs are easy to deal with through the various cutting patterns available on the routers. A fixture-based dust vacuum removal system utilized from the bottom side assures that there will be no shift or warp during PCB singulation.
Easy to Use
Not only are our PCB routers efficient and fast, they are very easy to operate as well. PCB singulation can be started on our machines with the simple touch of an external button. Image processing software makes it effortless to program specific cutting paths with point and click technology. The CCD camera incorporated allows for automatic alignment compensation, making depanelization even more unproblematic. Designed for easy access and repairs, our machines are low maintenance as well.
Value for a Low Cost
The effectiveness of our routers can not be disputed. Quick, efficient, easy to use, and very low maintenance, it's not hard to see that our routers are a valuable asset for the low cost it comes at.
Specification
| Model | SMTfly-F01 |
| Standard working area | 320*320mm |
| Power | 220V, 4.2KW |
| Manipulator Repeatability | ±0.02mm |
| Resolution | ±0.01mm |
| Board Positioning | Dual workstation with nest fixture or pin fixture |
| Panel Location | Located by tooling holes or edges of PCB |
| Loading | Manual |
| Unloading | Manual |
| Panel Size | 320*320mm(standard) |
| Panel Thickness | 0.5-3.5mm |
| Spindle motor | 0.5kW Morning Star Spindle |
| Tool Change | Manual |
| Dust filtration system | 3KW Vacuum Cleaner |
| Vision system | High resolution CCD video camera |
| Programming | Vision assisted point to point manual teaching |
| Editing Function | Dry run vision assisted / test run mode |
| Machine weight | 500kgs |
| Machine dimension | 113*140*108cm |
Packaging
Why choose us
|
1.Engineers available to service machinery oversea. |
Engineers are available to be sent to freign countries to do machinery training and offer technical support. |
|
2.Mature technique & forerunner to process makes high quality machinery. |
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine Our R&D team continuously upgrade the existing machines to meet the market development trend. |
|
3.Effective customer service. pcb router machine |
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers. |
|
4.One year warranty for the machines except accessories. b router machine |
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge. |
|
Our mission: |
Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success |
|
Our Vision: |
PCB industry to become the world's leading solution providers PCB separator. pcb router machine |
