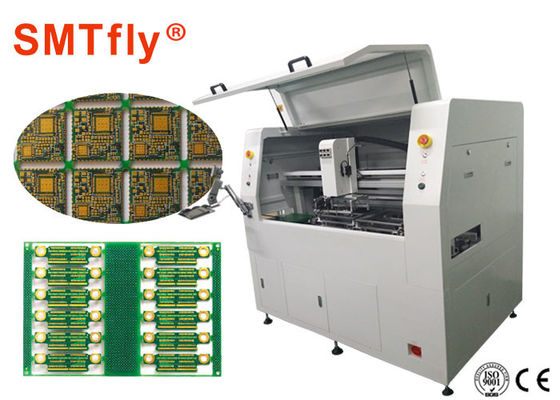

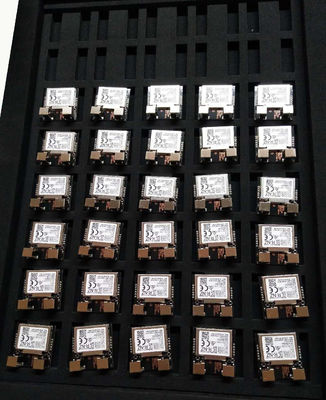

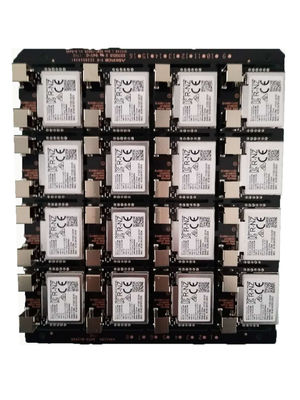

PCB Scoring Machine For 4 Axes Control with Smooth Cutting Edge

Two-slide PCB Separator for The Best Depaneling Solution with Smooth Cutting Edge

Features :

1. Two-slide PCB Separator

2. Low stress

3. Sharp cutting edge

4. Manul loading /unloading

5. High speed cutting by 4 axes control

6. Easy teaching with image processing

Description

2-way Sliding Exchanger

This work exchanger provides a simultaneously in-and-out working space to limit the idle time, which in turn reaches the utmost output value.

Route Duplication

The user only needs to set two referent points to duplicate a same route in saving programming time.

Routing Bit Sectioning

The user may set a designated distance, and have the routing bit shift-up or -down in order to make a new section of touting bit to cut boards for multiplying the life of the routing bit.

Friendly GUI

Windows XP system and Graphical User Interface (GUI) is adopted, which enables the user to learn and use the program easily. A 10 x zoom-in image is shown on screen for setting all points.

Specification

• Setting Fixture : 2 stations
• Working Area : X: 320mm, Y: 320mm, Z: 60mm
• Cutting Area : Max: X: 320mm, Y: 320mm　Min: X: 100mm, Y: 100mm Z: 15mm
• PCB Component Height : Top side: 15mm Bottom side: 45mm(with specific jig)
• PCB Thickness : 0.5 to 3.0 mm
• Router Bit Diameter : 0.8 ~ 2.0 mm(Option: Over 2.0mm)
• Precision of Cutting : ± 0.10 mm
• Positioning Accuracy : ± 0.01mm
• Positioning Repeatability : ± 0.02mm
• Number of Axis in use : 7 Axis (X, YL, YR, Z, Carry, P/P, Conveyor).
• Driving Speed (Max) : X, YL, YR : 1000mm/sec, Z: 750mm/sec
• Cutting Speed (Max) : X, Y, Z: 100mm/sec (It's according to the specification of Bit for the best speed setting )
• Spindle Motor : High speed variable frequency motor 150W (Max.50,000rpm)
• Bit Change : Manual
• Cutting Ability : Linear, Circular, U-curve, Arc, L-curve
• Motor of Axis : 7 Axes (150W AC Servo motors)
• Bit Shift Count : Max. 2
• Route Planning : Direct coordinate input or manual guiding with × 10 CCD camera
• Safety Area Sensor : n/a
• Bit Break Detection : Standard
• Program Storage : HDD
• Program Backup : USB
• Operating System : Windows 7
• Man-Machine Interface : Touchscreen Industrial Monitor + Keyboard + Mouse
• Conveyor Adjustment : Manual adjustment Max: Y: 350mm　Min: Y: 100mm
• Conveyor load capacity : Max: 2 Kg
• PCB Loading/Unloading : Automatic
• Power Supply : 3 Phase AC220V±3% 50Hz/ 60Hz, 3.5 kw
• Air : 0.5Mpa
• Dimensions : (W)2002mm x (D)1279mm x (H)1716mm + 578mm signal tower
• Weight : approx. 500 Kg
