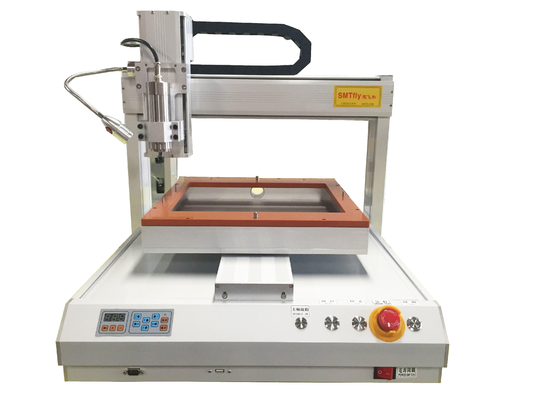

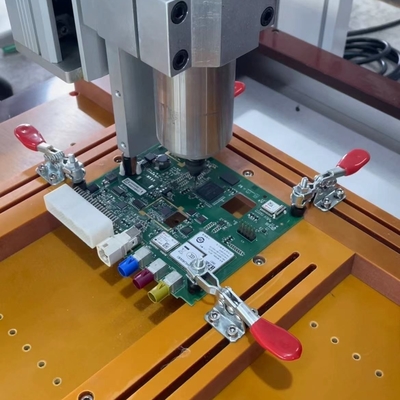

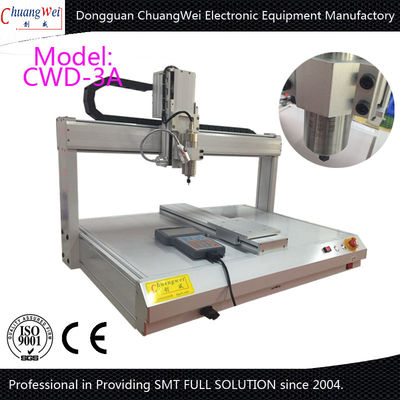

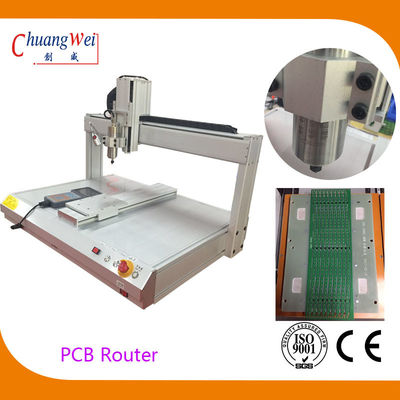

White PCB Depaneling PCB Router Machine with 500mm/s Cutting Speed
ChuangWei offers a wide choice of PCB routers including 2 desktop models that are available for 650*450mm panels. Universal fixtures & custom fixtures are available to meet customers' requirements. Only loosen 2 screws for a new fixture set-up, and no risk of an operator making the wrong set-up.
●Desktop single bench cutting machine, Speeds of up to 100mm/s,
positioning speed 500mm/s
●Cut continuouslwithout interrution durinloadinand y p g g
unloading
●High quality shaft system allows the system to quickly ramp,
reduce the period of time, Improve productivity, maintaining high
precision
●Use high-quality hardware to ensure high rigidity and high
performance All screws are protected from dust and dirt from entering
to improve the life and performance of the shaft
●Use high-quality hardware to ensure high rigidity and high performance
Motor drive system |
Servo / stepper motor |
Spindle speed |
50000r/s |
Cutting performance |
500mm/s |
Drive system repeatability |
±0.02mm |
Cutting speed Resolution |
±0.01mm |
Configuration |
X,Y,Z 3 axis Max 100mm/S(depends on PCB material and cutting quality) |
Repeatability |
<0.1mm |
PCB positioning fixture load/unload |
Manual |
PCB thickness |
0.4-4mm |
Working area |
650*450mm |
Spindle motor power |
0.5KW |
Spindle motor speed |
50000r/m |
Spindle motor cooling |
Air-cooled |
Machine dimension |
980*580*615mm |
Weight |
135KG |
Security settings |
emergency stop switch |
