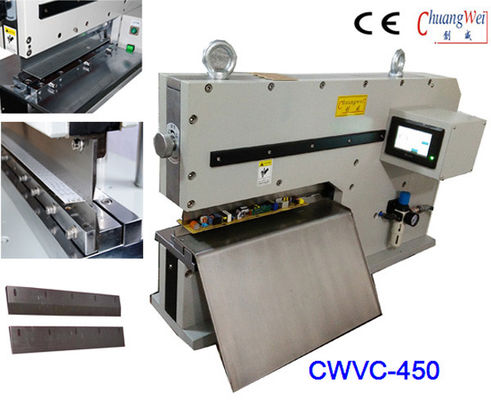

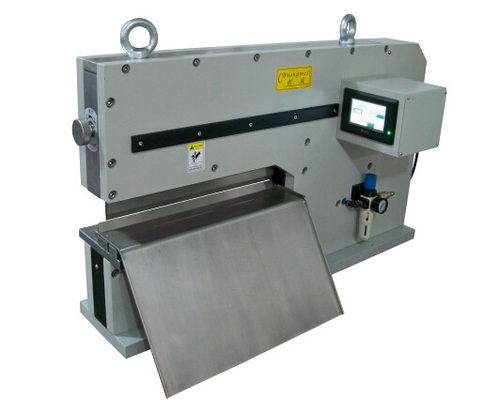

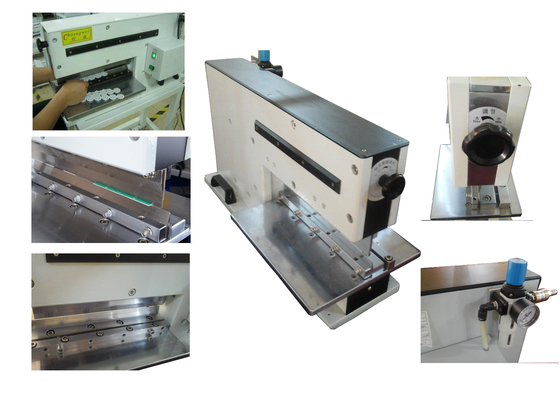

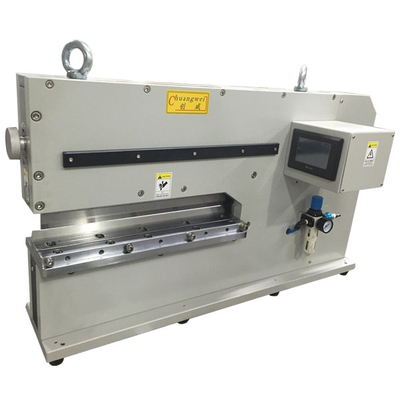

Peumatic PCB Depanelizer Machine Guillotine Cut-off Tools , Guillotine type Applications:
Cutting the aluminum base boards , FR4 , fiber glasses , pcba , etc.
please leave a message to the email: sales@smtfly.com
Features:
1 . Cutting with the double straight knives, it is especially suitable for the segmentation of precision SMD sheet and aluminum PCB .
2 . With guillotine operation, it applies to PCBs of all kinds of thickness, whose board schedule is less than 1-2mm, so there is no concerns about safety.
3 .The inner stress when cutting will be under 180ue, in case of a solder crack and the damage of precision components.
4 . The minimum width between the edge of the V-groove and the parts is 0.3mm, and the maximum height is 70mm.
5 . We provide free grinding of the blade after its abrasion.
Advantages:
1. The cutting rate is one segmentation for one second , controlled by pneumatic pedal switch .
2. The starting of the cutting set is for passive , so that the cutting tangent and position is under secure control . With little stress when cutting, there will no solder crack .
3. With cutting of nonroller (circular knife, straight knife ) type , there is no dust , no motor drive , and no carbon powder pollution .
4. With no-rubbing type cutting , there is no metal residue.
5. The blade can be used 600000/times without power supply , avoiding the loss and change of electrical products .
6. The machine uses 5-7kg air compressor without specific cutting place , and it is maintained by wiping its appearance with the anti-rust oil .
Specifications:
| Maximum length of board | 330 / 400 / 450 / 480mm |
| 330 / 400 / 450 / 480mm | 620mm X 230mm X 400mm |
| Thickness of board | 0.3-3.5mm |
| Working air pressure | 0.50-0.70MPA (dry air) |
| Voltage | 110/220VA |
| Machine weight | 165kg |
