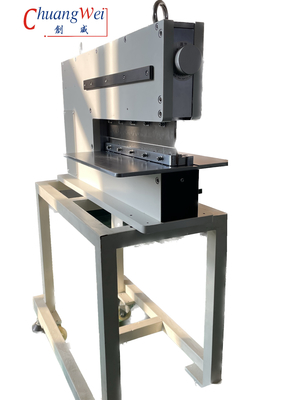

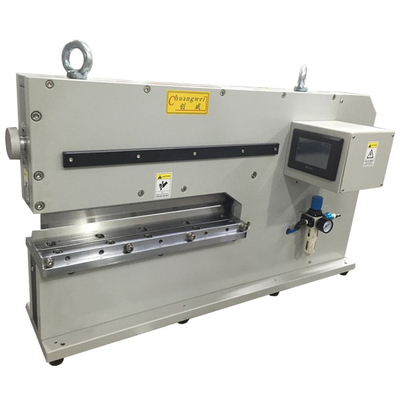

480mm Cutting Capacity Pre-Scored Pcb Separator With Large Lcd Display CWVC-480
Specification :
| Model | CWVC-480 |
| The Longest Minimize: | 480 mm |
| Size: | 980×450×380mm |
| Minimize thickness | 1.0-3.5 mm |
| Machine Weight : | 300 kg |
| Use | Cutting PCBA , FR4 .Metal board , Alum Board , Etc |

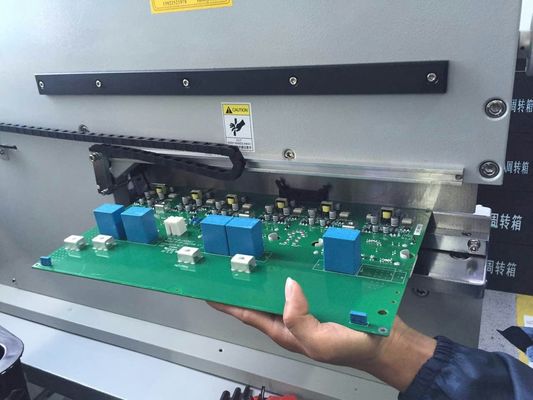

The machine was designed to depanel pre-scored panelboards carefully , without bending or tension stress .
Even sensitive SMD-Components like ceramic capacitors , will not be damaged by the depaneling process , or thin board even to 0.3mm cab be worked safely .
Due to the special design of the knives also boards with high components placed close to the edges can be depaneled safely . Based on a proven method of depaneling , wedge-shaped knives are used to cut the panels within the groove .
This enables the boards less than 1mm thickness to be separated safely and without creating stress . This machine is pneumatically driven using standard parts . It is noiseless operation with none of usual compressed air noises . Rigid design without vibration in operation

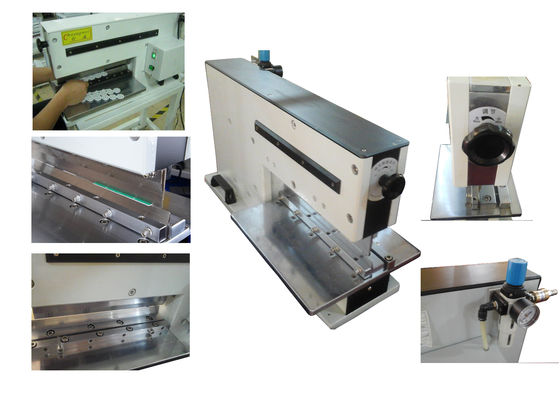

The PCB with sensitive SMD capacitor or thin board even to 0.3mm can be worked safely . Gap for insertion of the board can easily be adjusted by means of the adjusting knob in front of the machine . Gap for insertion of the board can easily be adjusted by means of the adjusting knob in front of the machine . Gap for insertion of the board can easily be adjusted by means of the adjusting knob in front of the machine .
Depaneling process without vibrations
Pneumatic control placed in a separate unit for easier maintenance .
Our service
|
1.Engineers available to service machinery oversea. |
Engineers are available to be sent to freign countries to do machinery training and offer technical support. |
|
2.Mature technique & forerunner to process makes high quality machinery. |
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine Our R&D team continuously upgrade the existing machines to meet the market development trend. |
|
3.Effective customer service. pcb router machine |
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers. |
|
4.One year warranty for the machines except accessories. b router machine |
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge. |
|
Our mission: |
Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success |
|
Our Vision: |
PCB industry to become the world's leading solution providers PCB separator. pcb router machine |
Advantages:
1. The cutting rate is one segmentation for one second , controlled by pneumatic pedal switch .
2. The starting of the cutting set is for passive, so that the cutting tangent and position is under secure control . With little stress when cutting , there will no solder crack .
3. With cutting of nonroller (circular knife , straight knife ) type , there is no dust , no motor drive , and no carbon powder pollution .
4. With no-rubbing type cutting , there is no metal residue .
5. The blade can be used 600000/times without power supply , avoiding the loss and change of electrical products .
6. The machine uses 5-7kg air compressor without specific cutting place , and it is maintained by wiping its appearance with the anti-rust oil .
CE certification
