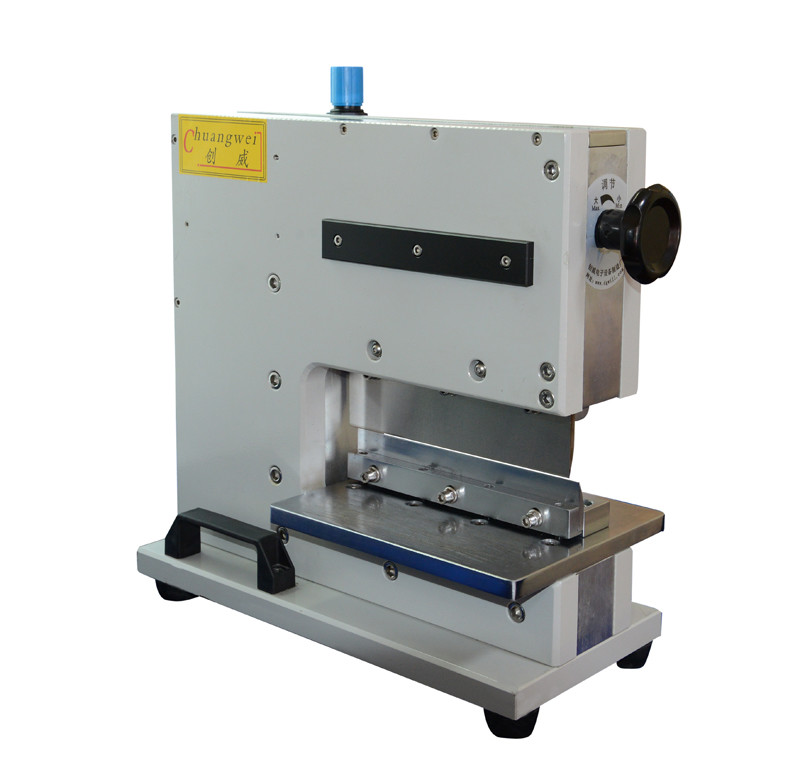

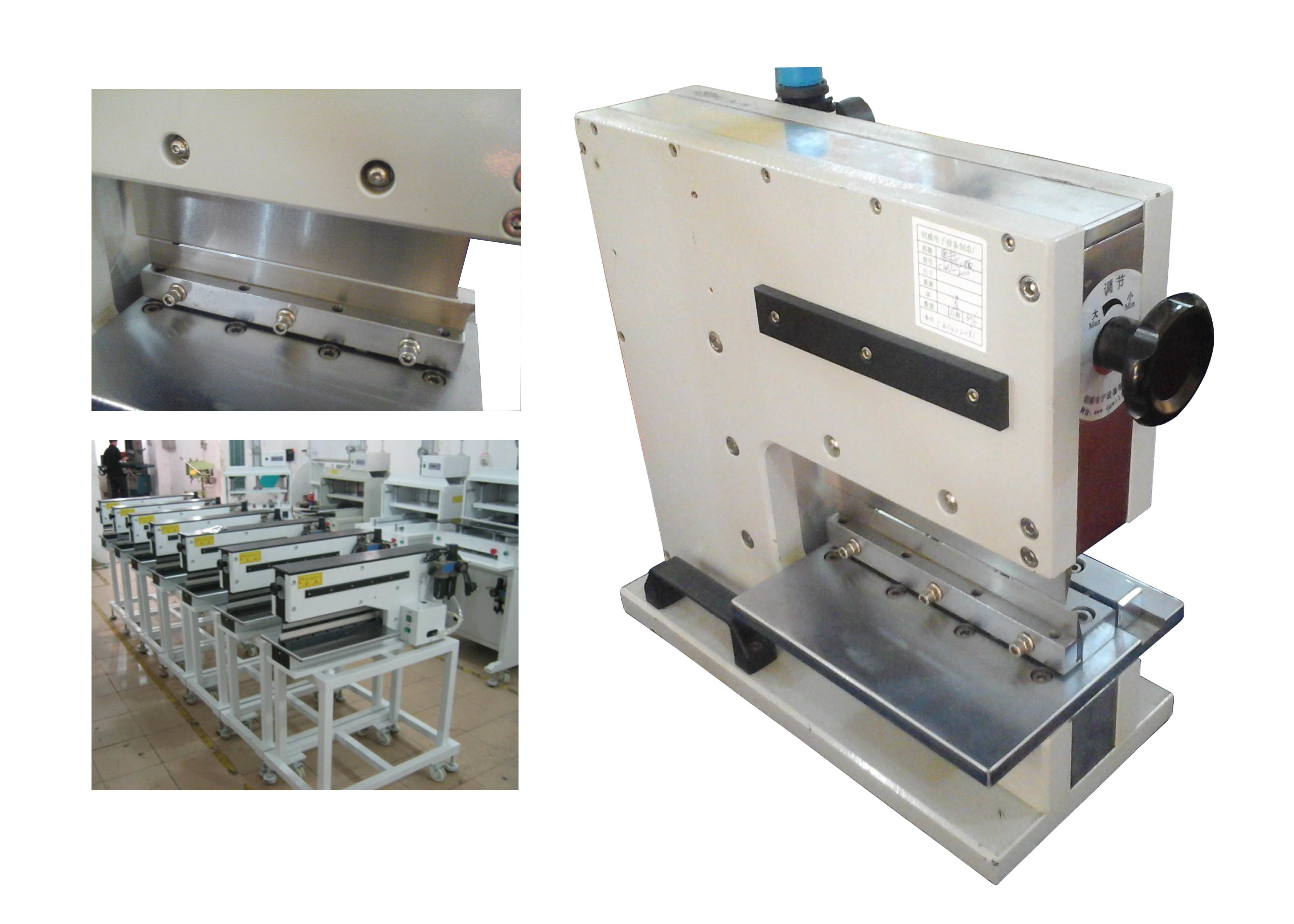

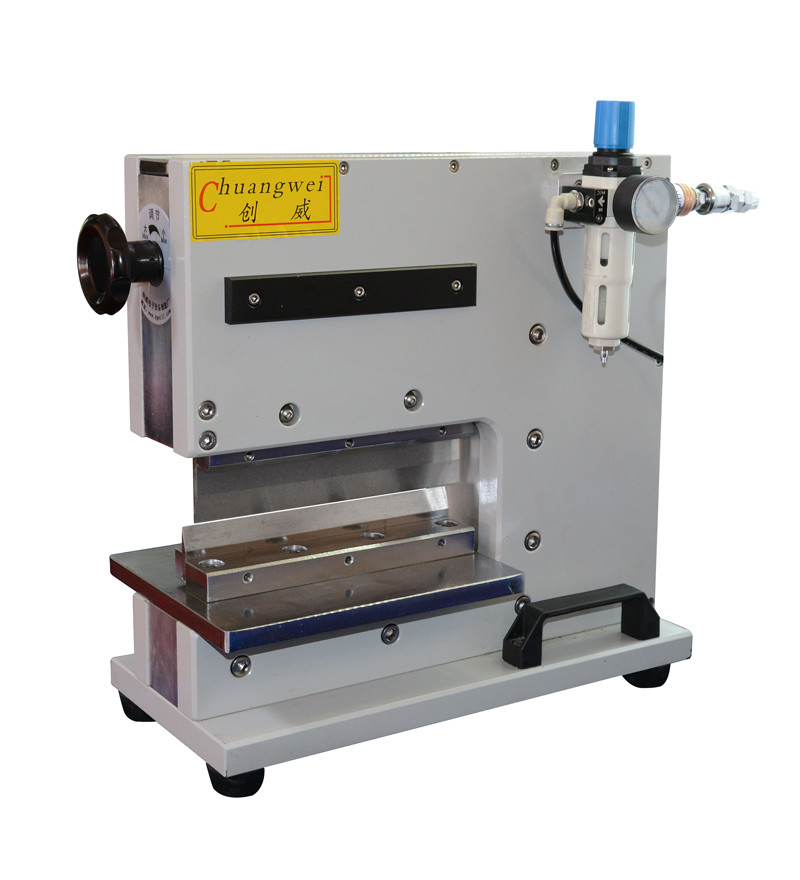

Pneumatic Type PCB Separator Cutting Short Alum Board with Two Linear Blades,PCB Depanelizer
The machine was designed to depanel pre-scored panelboards carefully, without bending or tension stress.
Even sensitive SMD-Components like ceramic capacitors, will not be damaged by the depaneling process, or thin board even to 0.3mm cab be worked
Features:
1 . Separates boards up to 2.0 mm thick ( with minimum 0.5 mm scoring depth )
2 . Can be used with aluminum , FR4 , CEM3 and other substrates , including substrates with metal inner layers
3 . Separates PCBs with components located up to 0.5 mm from the score line
4 . Safe for use with flexible and thin PCBs
5 . Smooth , quiet pneumatic-powered unit with foot-pedal activation
6 . Wedge-shaped linear blades contour to v-groove score lines and operate in a rocking motion
7 . Boards are separated without bending or breaking
8 . No safety risks to operator since there is never a gap greater than 4 mm between the upper and lower blades
9 . Adjust blades to PCB score line using rotary knob
Specification:
| cutting length | 200 mm |
| cutting thickness | 0.3-3.5 mm |
| Machine size | 450*200*460mm |
| Machine weight | 90 kg |
| Model | CWVC-200 |
