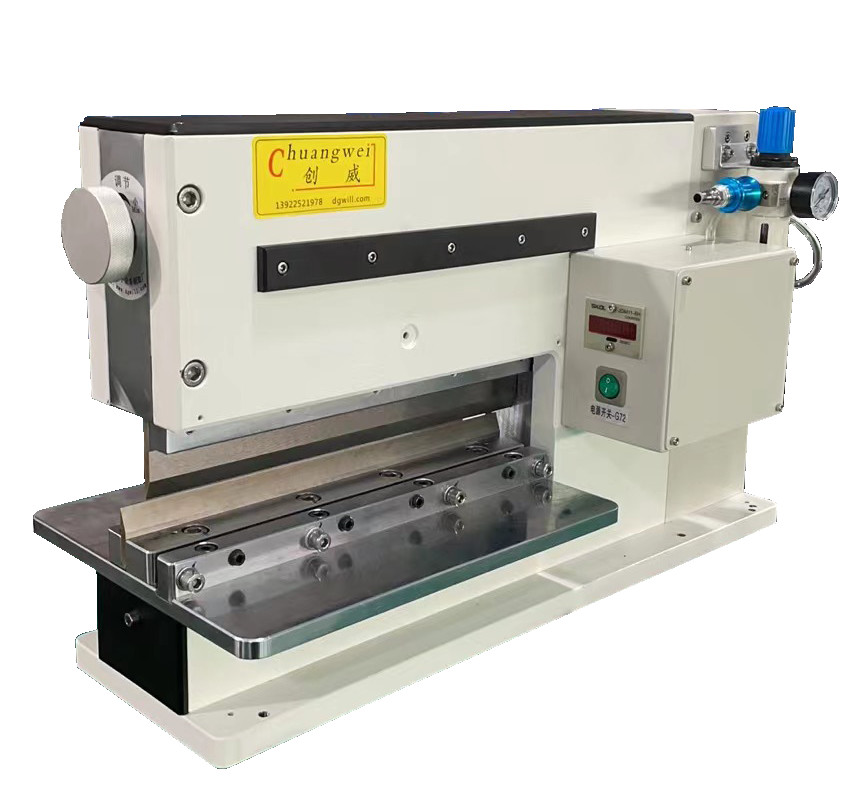

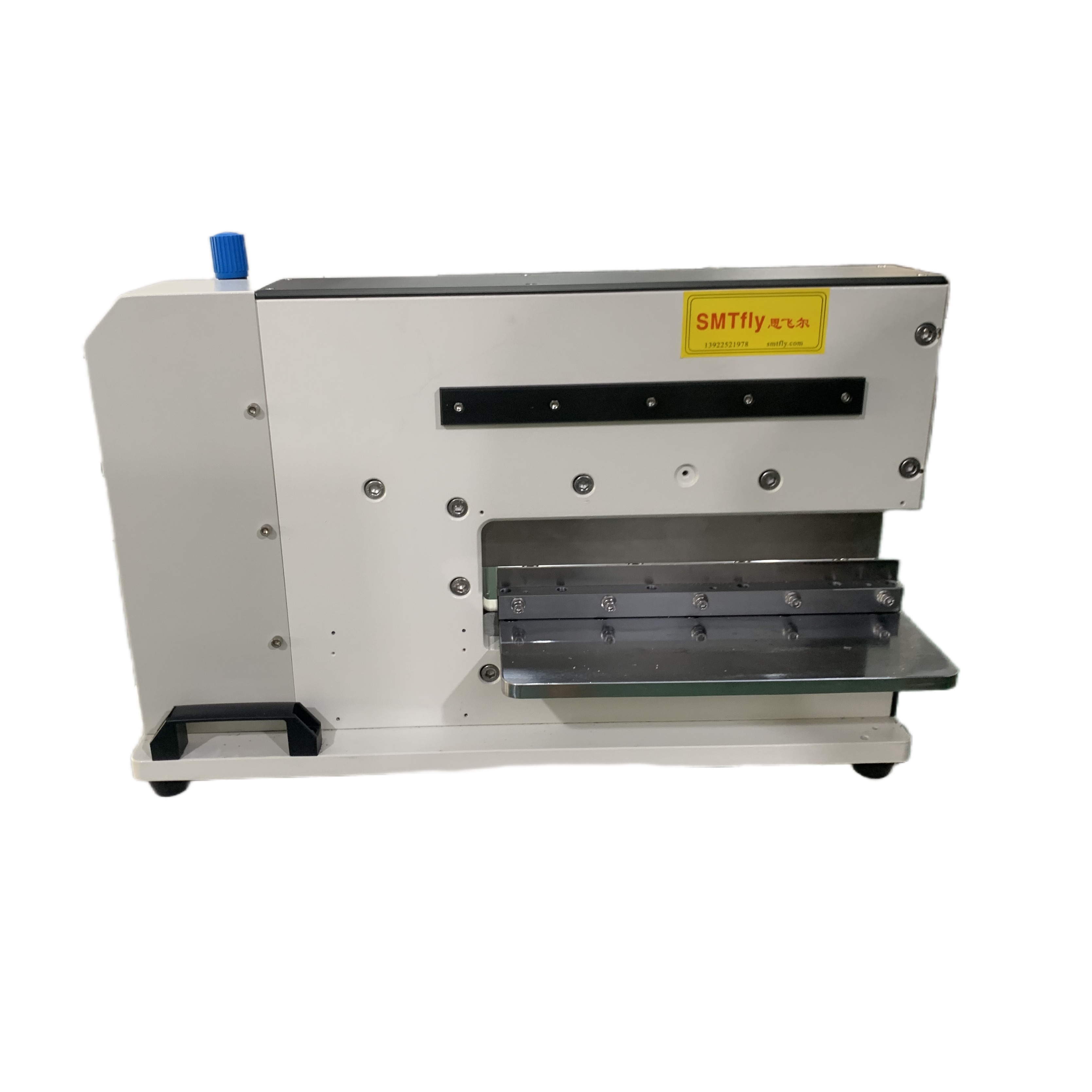

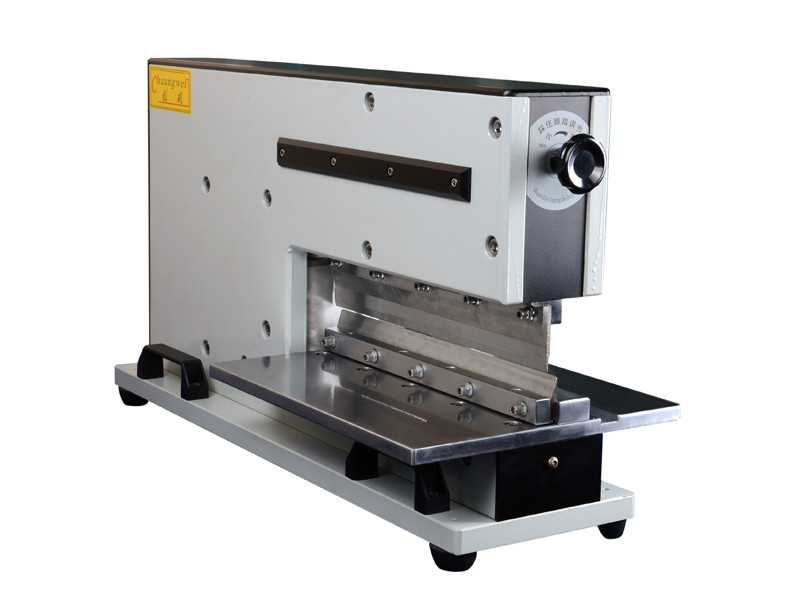

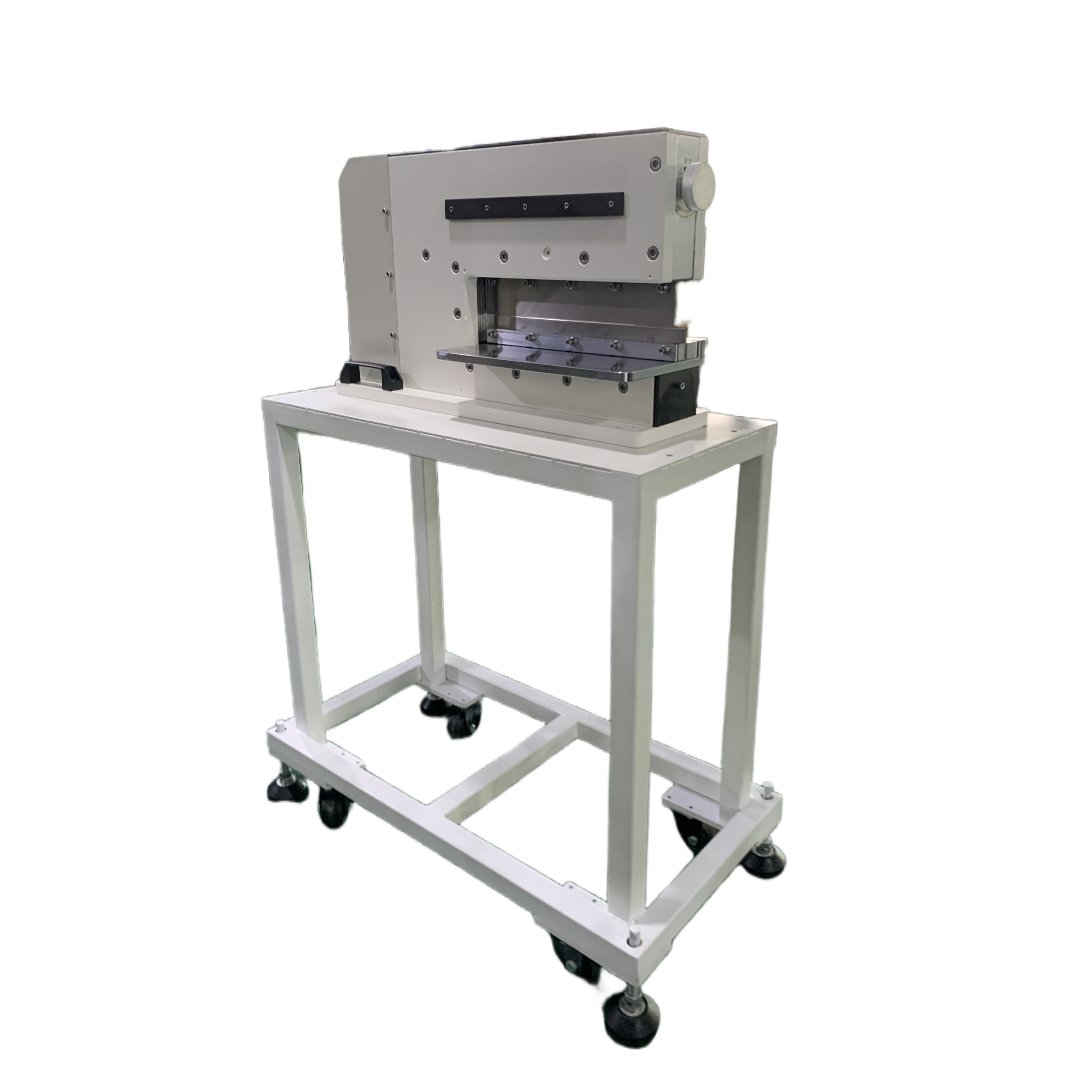

Best Selling Guillotine Type PCB Separator Machine Cutting Aluminum Board
1. Pneumatically driven and electric control , sample design . There have sensor device in the machine , cuttting board one time with lowest cut stresses . SM-4000 apply for separate precise SMD PCBA or thin plates .
2. The straight knife type separator machines were designed to separate pre- scored panel boards carefully , without bending or tension stress . Even sensitive SMD components like ceramic capacitors will not be damaged by the separate process , improve products quality .
3. Due to the special design of the blade , boards with high components placed close to the edges can be separated safely . Based on a proven method of separating, wedge shaped knives are used to cut the panels within the groove . This enables boards of less than 1 mm thickness to be separated safely and without creating stress.
Fetures:
1 , No vibration during the process to prevent damage to precise PCB
2 , Gap for insertion of the board can easily be adjusted by means of the adjusting knob in the top side of the machine , low friction design is applied .
3 , Lower knife height adjustable, the front and real portion can be adjusted separately . No thin plates are required after re-sharpening the knife .
4 , Operation and maintenance can be done also by unskilled personnel
Specifications :
| Model | CWVC-2L |
| Max separation length | 330mm |
| machine Size | 620*230*400mm |
| cutting thickness | 0.3-3.5mm |
| Machine weight | 165kg |
Our Service:
A. Pre-consultation:provides professional SMT solution for the full line;
B. Factory Warranty:One-year warranty factory service;
C. Installation:On-site installation and commissioning,to ensure smooth production;
D. Technical Training:provides professional training from level 1 to level 3;
E. Technical Support:provides 7 days * 24 hours technical support;
F. Software Upgrade:offer lifetime free software upgrades for all products.
