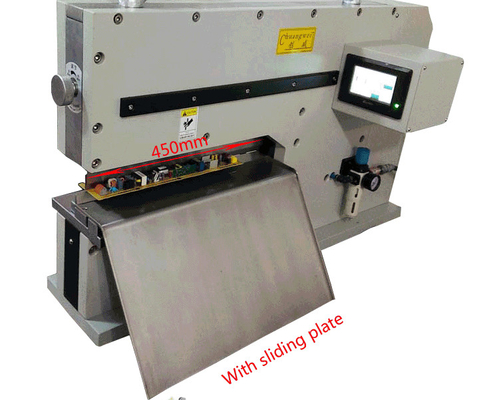

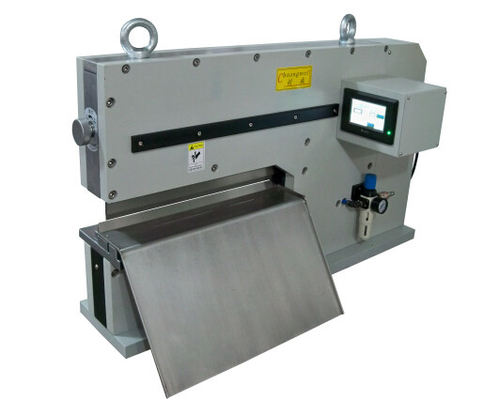

Pcb Separator For Metal Board With Components Counter Quick Detail :
1. Nice for separating v cut metal board,Aluminium PCB,LED strip,Copper PCB etc .
2. Separate rigid and thick board fluently .
3. Use pneumatic-driven and electromagnetic valve to operate .
4. Large LCD display with capacity counter function .
Features:
1. New style rigid machine structure design,separate any length rigid and thick metal board more safely and easily.
2. Separate long boards directly, without turning PCB direction.
3. Separating process without vibrations due to pneumatic drive unit.
4. Separating PCB without bending and tension stress.
5. PCB control operation is that operator stamps the foot pedal to separate PCB.
6. Highest components near the v groove of PCB can be up to 50mm.
7. Gap for insertion of PCB can be easy to adjust.
Specifications:
| Model | CWVC- 450J pcb separator |
| Linear Blades length | 450mm(Can custom made) |
| Material of blades | high-speed steel |
| Max.PCB separation length | unlimited |
| PCB separating thickness | 0.3 - 3.5mm |
| Voltage and Power | 110V / 220V -- 10W |
| Working air pressure | 0.5 - 0.7Mpa |
| PCB separator machine size | 900 * 760 * 750 mm |
| PCB separator machine weight | 475 kg |
Company information:
Chuangwei Electronic Equipment Manufactory Limited started to development,manufacture,sale,service for PCB separator machine in1999, until now,we have produced different kind PCB separator machine type for manual,motor-driven,pneumatic-driven,mold and die punching,milling cutter router etc.So you can depend on your company's condition and choose the most suitable one. Also We can manufacture PCB separator machine base your actual requires. Our PCB separator machine mainly applies to separate various shape,length and thickness Printed Circuit Board(PCB) which include Rigid PCB,Flexible PCB(FPC) and Rigid-flex PCB etc.For example electronic and digital products FR4 PCB,FR6 PCB ,Aluminium PCB, Copper PCB, LED strips,LED tubes PCB,Solar energy PCB and different FPC etc.
Any interest please contact us freely.
Chuangwei PCB separator machine
