1.0-3.5mm Cutting Thickness and 0-400mm/s Separation Speed PCB Depanelizer

1Set
MOQ
Negotiable
Price
1.0-3.5mm Cutting Thickness and 0-400mm/s Separation Speed PCB Depanelizer
Features Gallery Product Description Request A Quote
Features
Specifications
Shipping Way: EXW / FOB
Separation Length: Unlimited
Separation Thickness: 1.0-3.5mm
Material: High Speed Steel
Guarrante: Free For One Year
Establish Year: 1999
High Light:

0-400mm/s PCB Depanelizer

,

3.5mm Cutting Thickness PCB Depanelizer

Basic Infomation
Place of Origin: China
Brand Name: chuangwei v-cut pcb depaneling
Certification: CE and GMC
Model Number: CWVC-1SJ
Payment & Shipping Terms
Packaging Details: plywooden case
Delivery Time: within three days after receive the payment
Payment Terms: T/T , Western Union , cash , paypal , credit card
Supply Ability: 1000 sets/ year
Product Description



Pre-scored PCB Separator V-cut Pcb Depaneling For Led Strip CuttingSpecification:



Model

 CWVC-1SJ

separation Length (mm)

330

separation Speed (mm/s)

0~400

Cutting Thickness (mm)

1.0~3.5

Power Supply (V)

110/220

PCB separator machine Size (mm)

420*280*400

PCB separator machine Weight (Kg)

25

Blade Hardness (HB)

540~567

Blade Hardness (HRC)

60~63

Blade working life for metal (Year)

0.5

Blade working life for PCB (Year)

1

Guarantee (Year)

free for one year

Delivery (Day)

within three days after receive the payment

Min. Order (Set)

1

Ability (Set)

1000 sets/ year

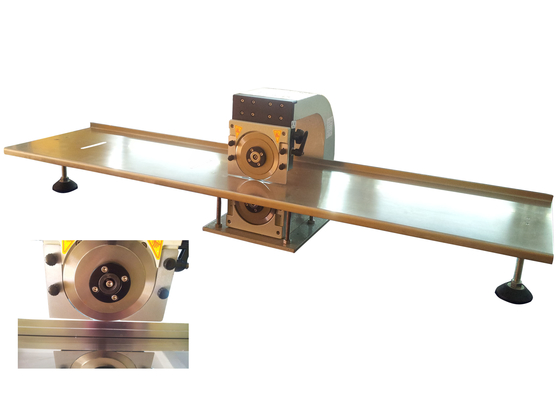

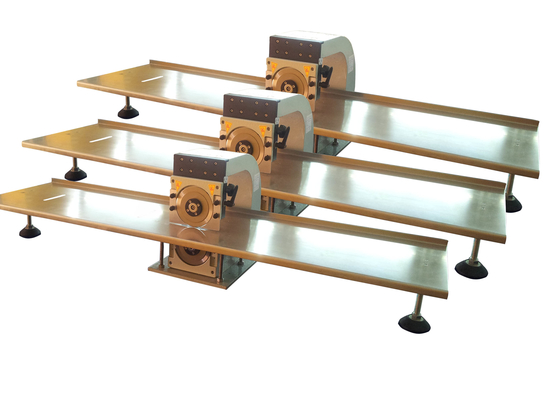

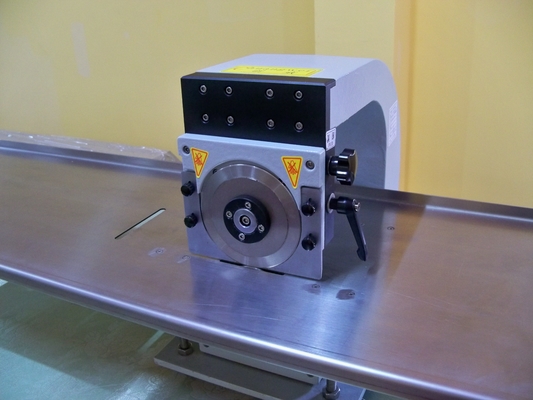

1.0-3.5mm Cutting Thickness and 0-400mm/s Separation Speed PCB Depanelizer 0



Detailed Product Description:


1 . For electronics, cell phones , computers , PCB , FPC ( flexible printed circuit board )

2 . Mold make of SKH-11 Steel , Blade is SKH-9 ( From Japan ) , Rigorous Job !

  pcb depaneling pcb depaneling pcb depaneling pcb depaneling pcb depaneling pcb depaneling pcb depaneling

Technical characteristics:


1 .  Structural precision, the load evenly , to eliminate internal stress

 2 . Safe , easy to operateyyy

 3 . For electronics , cell phones , computers , PCB , FPC  ( flexible printed circuit board )



Feature:

  1. All PC boards with a V-cut are suitable for this machine.
  2. The machine is light and occupies little space. It is very easy to operate and maintain.
  3. Cutting by machine can reduce stress and prevent the welding point from cracking.
  4. The distance between the upper and lower cutters can be adjusted with a minimum of 0.03mm, which can solve the problem of the depth of the V-cut.
  5. We can produce special machines for PC boards of special specs.
  6. Thicknesses to be cut: 0.6-2.6MM
  7. Height limit for components above the base plate: 30MM
  8. Height limit for components under the base plate: 20MM
  9. Max width to be folded: 290MM; unlimited length to be folded.

Why choose us



1.Engineers available to service machinery oversea.

Engineers are available to be sent to freign countries to do machinery training and offer technical support.


2.Mature technique & forerunner to process makes high quality machinery.


As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine


Our R&D team continuously upgrade the existing machines to meet the market development trend.


3.Effective customer service. pcb router machine


All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.


4.One year warranty for the machines except accessories. b router machine


Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.


Our mission:


Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success


Our Vision:


PCB industry to become the world's leading solution providers PCB separator. pcb router machine
