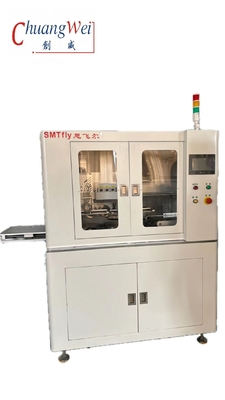

Name: Intelligent One Direction Depaneling with Horizontal and Vertical Options for Inline PCB Separator Machine
Brand: SMTfly
SKU: SMTfly-5
Price: 1 USD
Availability: InStock
Rating: 4.9 (104 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

PCB Width: 300mm(could Be Customized)

Driven Mode: Stepping / Servo Motor(optional)

V-cut Angel: >40°

Cutting Speed: 300-500/s

Blade Material: High Speed Steel

Air Pressure: 0.5-0.8Mpa

Voltage: 220/110V

Packaging Weight: 300kgs

High Light:

Horizontal option Inline PCB Separator Machine

One Direction Inline PCB Separator Machine

Vertical option Inline PCB Separator Machine

Basic Infomation

Place of Origin: China

Brand Name: SMTfly

Certification: CE

Model Number: SMTfly-5

Payment & Shipping Terms

Packaging Details: wooden case

Delivery Time: 8-15 days after payment

Supply Ability: 30sets/month

Gallery

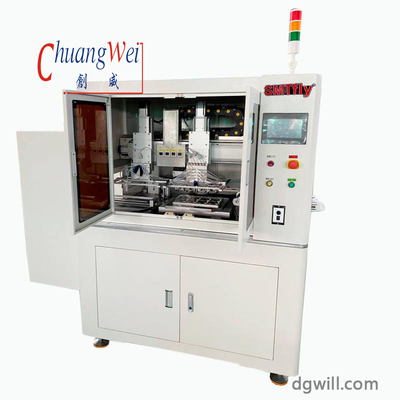

Intelligent One Direction Depaneling with Horizontal and Vertical Options for Inline PCB Separator Machine

Product Description

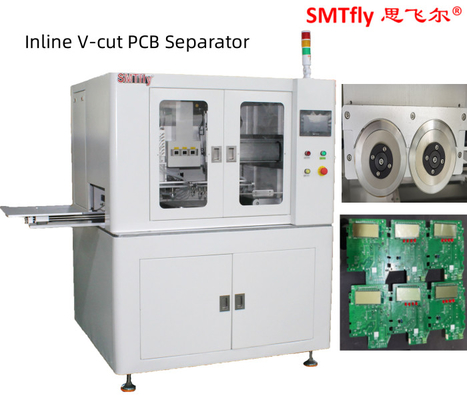

Fully Automatic Inline V-Cut Pcb Separator Machine Description:

PCB Separator Machine Fully Automatic Inline 300mm Could Be Customized

This is a double direction depaneling with horizontal and vertical boards;
To realize inline depaneling for shape panels at one time;
High automation, connecting PCB loader and unloader, can be achieved without humans, save labor;
Touch screen operation, enabling quick product changing, PLC data storage capacity is 100 programs;
One direction of depaneling is also workable, one could set horizontal and vertical depaneling by touch screen, more intelligent;
Dust cleaner is optional.

Inline PCB Depaneling Machine Fully Automatic V Cut Depaneling Machine Parameter:

Blade dimension	Linear Blade: 356×43.5×6mm
PCB width	300mm(could be customized)
Driven mode	Stepping / Servo motor(optional)
V-cut angel	>40°
Cutting speed	300-500/s
Blade material	High-speed steel
Air pressure	0.5-0.8Mpa
Voltage	220/110V
Dimension	1250(1560)mm×800mm×1295mm
Packaging weight	300kgs

Inline PCB Depaneling Machine Fully Automatic V Cut Depaneling Machine Features:

※ Workable for "#" shape depaneling.

※ Blade set can be quickly changed.

※ Could connect PCB loader and PCB unloader to realize fully automated production to

save labor.

※ Unique new blade design, lifetime should be increased by 1.5-2 times.

※ Safety: Sensor is used to ensure safe production.

※ Simple operation, workers can operate it after training.

※ Horizontal and vertical depaneling is optional.
