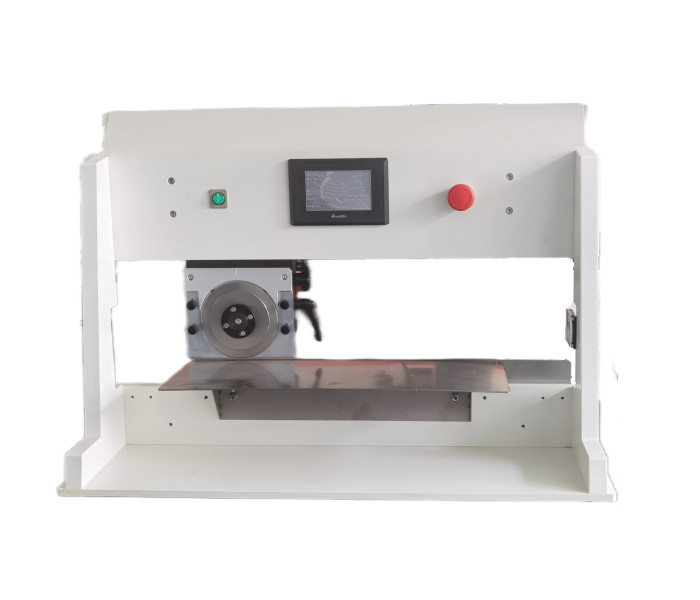

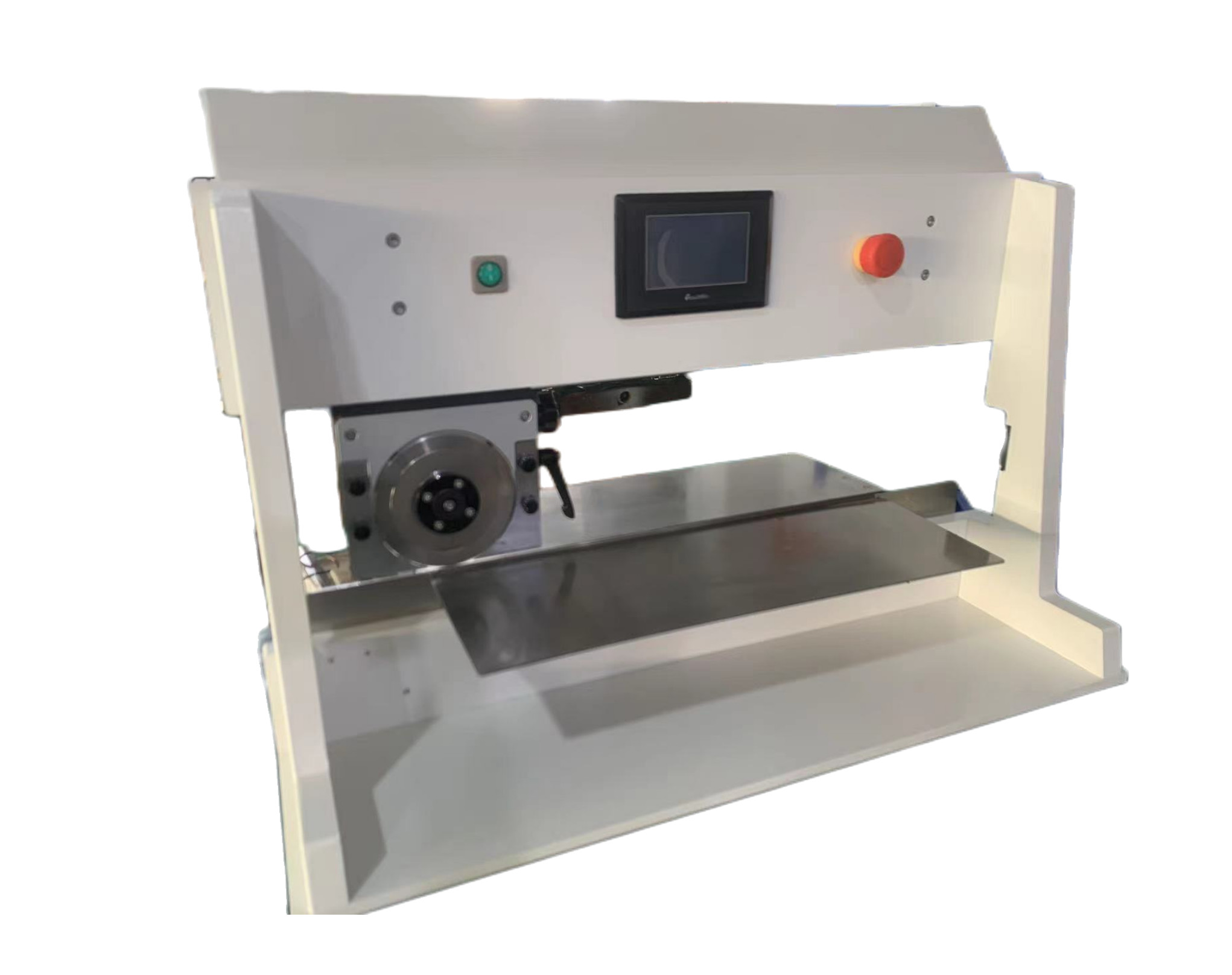

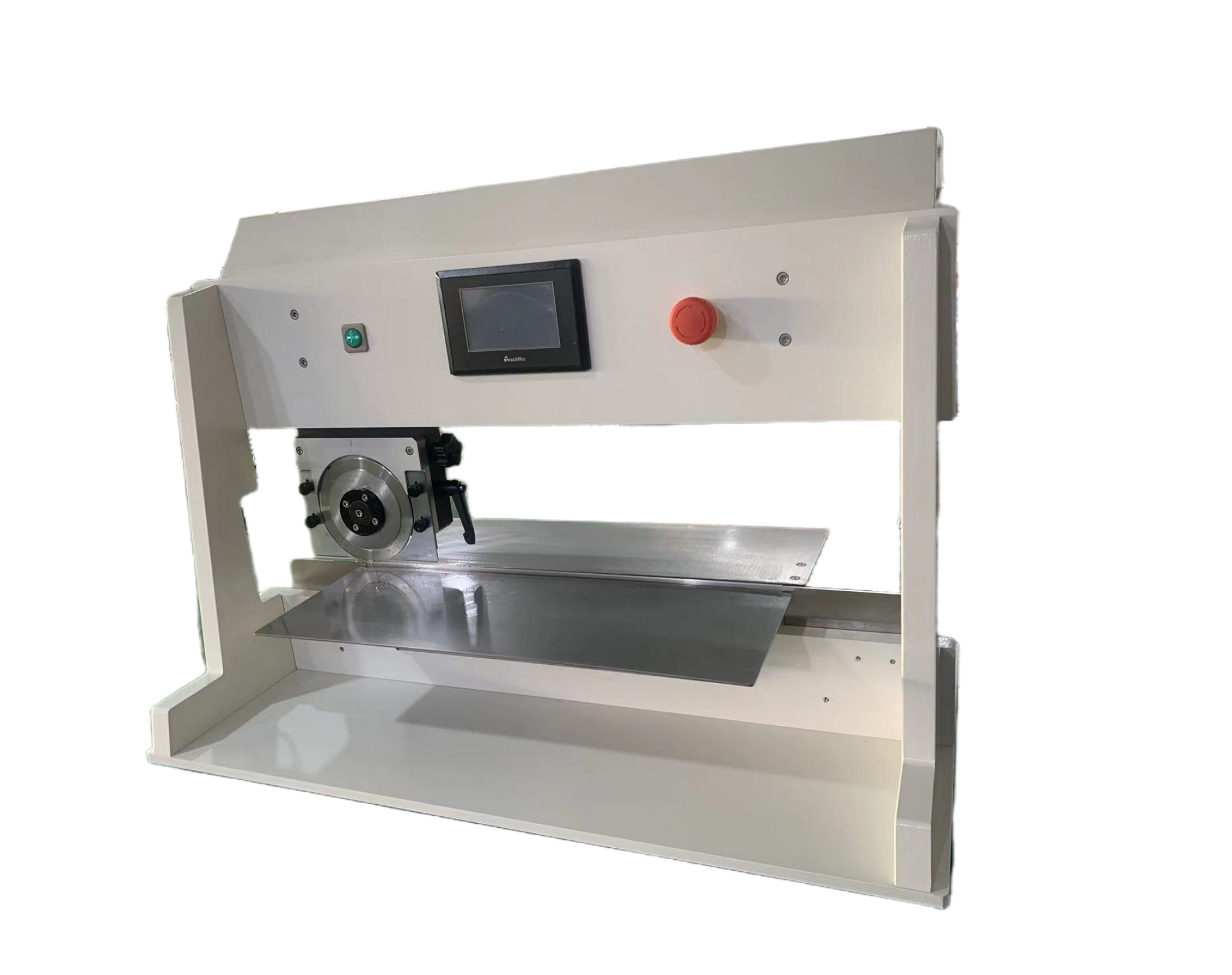

Motorized PCB Depanelizer PCB Separator for PCB Depaneling with Round Blade
Features :
1 . Separate pre-scored PCB assembly without stress on either PCB or component
2. One touch programming of cut length with digital display
3. Separating speed is adjusted by a rotary knob
4 . Handle Intermittent scoring or cut-outs
5 . Board with projected component can be cut precisely
6 . Large stainless steel platform on both side of cutting lade prevents board wobble and table height and angle are adjustable
7. Optional PCB conveyor belt to remove finished board
8 . Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out
9 . three eletric eye
Describe :
Fast, Accurate , Economical PCB Separation for Panels up to 460mm Long
The SMTfly-2A precision depaneler combines a topside circular cutter with a below-board linear knife for smooth , burr-free separation of PCBs along the scoring groove . The design of the SMTfly-2A eliminates stress on the board and the components during the separation process , preventing post-breakout-related board , component and solder joint defects even when components are located as close as 1 mm to the scoring line .
Specification :
| Cutting length | 460 MM |
| Separation speed | 100-500mm /s |
| Pcb Separator Machine Size | 880mm X 460mm X 560mm |
| Pcb Separator Machine Weight | 185 kg |
why choose us
1. Engineers available to service machinery oversea
Engineers are available to be sent to freign countries to do machinery training and offer technical support.
2. Mature technique & forerunner to process makes high quality machinery
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines.
Our R&D team continuously upgrade the existing machines to meet the market development trend.
3.Effective customer service
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and with departments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.
4.One year warranty for the machines except accessories
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients.
We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
◇ 5 day delivery
◇ 24 hours fast response
◇ Largest manufactory in South China
◇ 100% responsible for quality
◇ 18 years experience
◇ Free sharpening for blades within 3 months
◇ Controlled drawings make strict confidentiality for clients
