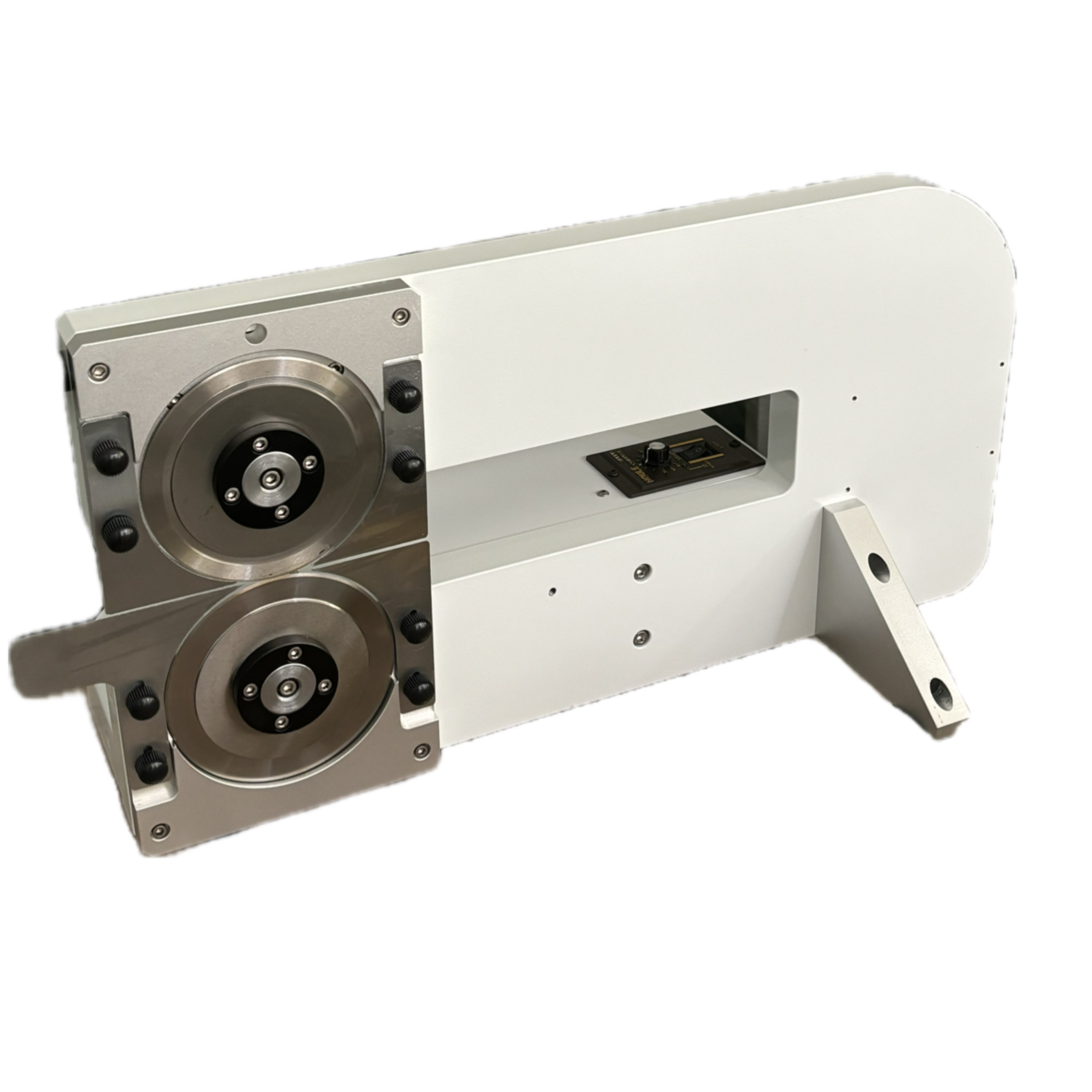

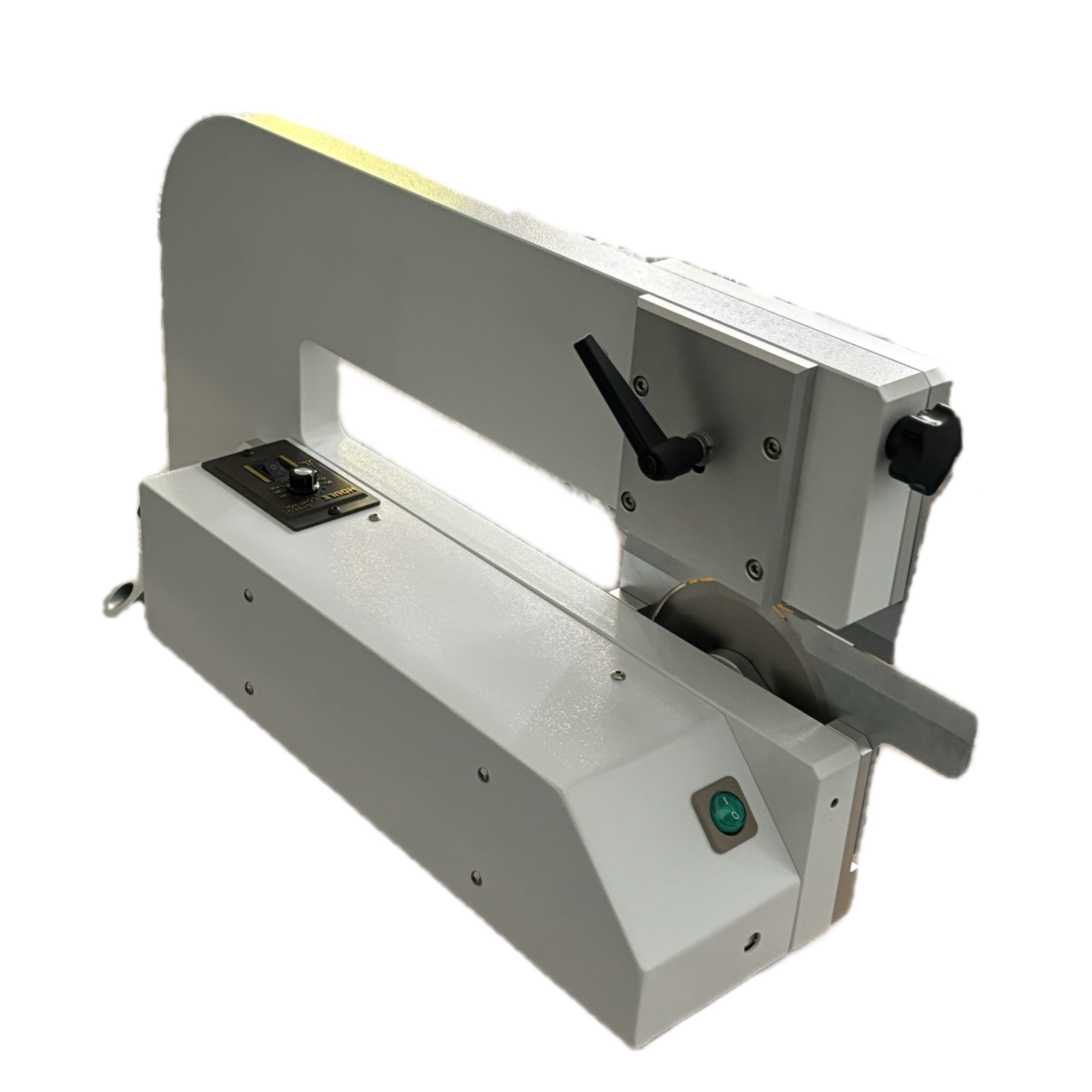

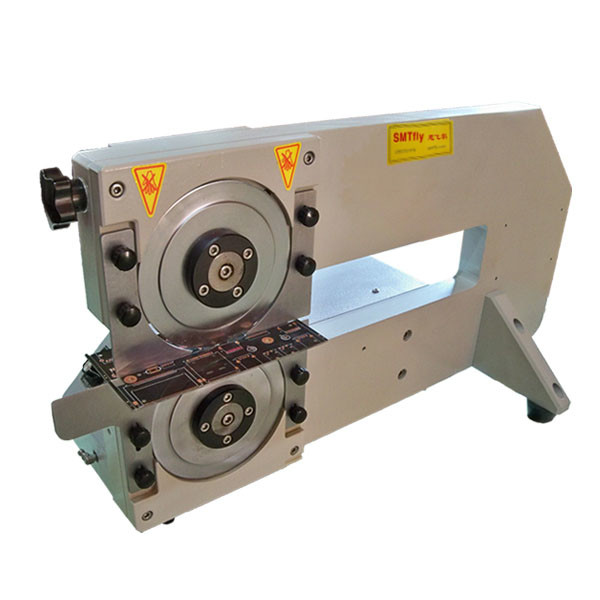

Factory Made PCB Cutting Machine For Aluminum Board, PCB Separator, CWVC-1
1.Easy operating modes
2.Easy setting, edge guiding
3.Cutters re-grinded
4.Avoid micro-cracks
Specification:
|
Model |
CWVC-1 |
|
PCB Cutting Length (mm) |
330 |
|
Cutting Speed (mm/s) |
0~400 |
|
Cutting Thickness (mm) |
1.0~3.5 |
|
Power Supply (V) |
110/220 |
|
Size (mm) |
420*280*400 |
|
Weight (Kg) |
20/40 |
|
Blade Hardness (HB) |
540~567 |
|
Blade Hardness (HRC) |
60~63 |
|
Blade working life for metal (Year) |
0.5 |
|
Blade working life for PCB (Year) |
1 |
|
Guarantee (Year) |
1 |
|
Delivery (Day) |
1 |
|
Min. Order (Set) |
1 |
|
Ability (Set) |
1000 |
Detailed Product Description:
1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board),LED.
2. Mold make of SKH-11 Steel, Blade is SKH-9(From Japan), rigorous Job!!!! Dedicated
to high strength cutting, and excellent toughness, able to cut metal board !!!!!!
Technical characteristics:
1. Structural precision, the load evenly, to eliminate internal stress
2. Safe, easy to operate
Feature:
1.Minimize the shearing stress to avoid micro-cracks of the solder joints.
2.Guiding device of the "V-CUT" of the PCB.
3.Ball bearing slideways for easy setting of the PCB edge guides.
4.Ball bearing slideways for easy setting of the height of the tabletop.
5.Easy operating modes: Manual by handwheel, semi-automatic by pressing the start button or fully-automatic by continuous running.
6.Cutters can be re-grinded
7.The shape of the cutter can be customer made
Our Advantage :
1.CWVC-1 Pcb depanelizer original manufacturers, price concessions
2.Promise day technical support services
3.Limit the handling of complaints, half an hour back to customers
4.Depanel Experts, the provision of professional PCB sub-programme
5.Reliable machine maker,we get Experts--15,each one got over 6 years experience,equipment quality will be satisfying.
SKH-9:
HB621 HRC63
Dedicated to manufacture the high strength cutting blades. Steel not only high strength and excellent toughness, but also good wear resistance. Comparing to the other material that's much more economical and higher practicality, so it is very wide-range using.
SKH-51 tungsten steel:
HB621 HRC63
Dedicated to manufacture turning tools, drill. It maintain high hardness at room temperature, however if up to 200 °C hardness sharp decline, above 500 °C lose metal cutting ability totally.
Titanium Ti:
HB540 HRC55
Dedicated to manufacture aviation sector, aircraft engines, rockets, missiles, supersonic aircraft structural components. Still maintain a certain strength, high toughness under high temperature. Corrosion resistance is extremely strong, and still ensure the stability of the overall performance of ultra-high temperature.
