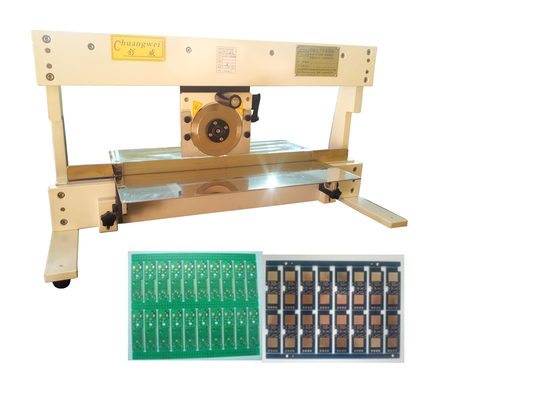

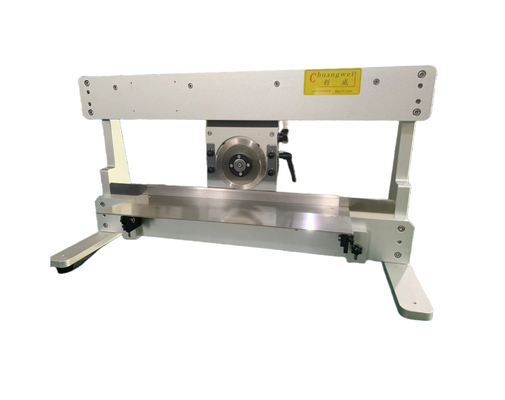

Manual PCB Depanel Separation for 460mm Length PCB and LED Panel
Specification :
|
Model |
SMTfly-1M |
|
Max. pcb cutting Length (mm) |
460/700/1000/1500 |
|
pcb cutting Speed (mm/s) |
manual |
|
Separation Thickness (mm) |
0.6~3.5 |
|
pcb cutting machine Size (mm) |
400*780*480 |
|
pcb separator Weight (Kg) |
55 |
|
Blade Hardness (HB) |
540~567 |
|
Blade Hardness (HRC) |
60~63 |
|
Blade working life for metal (Year) |
0.5 |
|
Blade working life for PCB (Year) |
1 |
|
Guarantee (Year) |
1 |
|
Delivery (Day) |
within 5 days |
|
Min. Order (Set) |
1 |
|
Ability (Set) |
1000 sets/year |
Detailed Product Description :
1 . For electronics , cell phones , computers , PCB , FPC ( flexible printed circuit board ) , LED .
2 . Mold make of SKH-11 Steel,Blade is SKH-9 ( From Japan ) , Rigorous Job !
Technical characteristics :
1 . Structural precision , the load evenly , to eliminate internal stress
2 . Safe , easy to operate
3 . For electronics , cell phones , computers , PCB , FPC ( flexible printed circuit board )
Features :

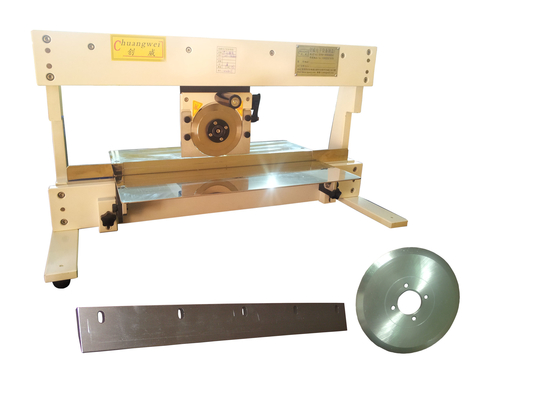

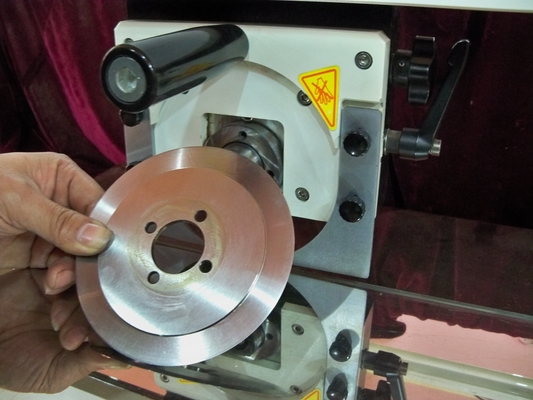

SMTfly-1M separates both small and large pre-scored PCBs . The table and the rest can be continuously adjusted to the most suitable working position . The slit between the linear blade and the rest can be adjusted to ensure that the side strips fall through and are sorted out . The PCB is placed with its pre-scored groove onto the linear blade and the circular blade is then drawn by hand across the PCB . The distance between the upper guide and the linear blade is adjustable to ensure that the PCB is only separated in the pre-scored groove . The pre-scored grooves can be interrupted by any number of cutouts . If components project above the groove , the linear blade needs to be omited. In such a case , please contact us .
Please note :
round knives will often be sufficient for separating uncomplicated panels or cutting off margin waste . However , for high-grade boards with components right up to the dividing line, better quality can be achieved if the separation is carried out simultaneously with linear knives along the whole length of the board ( e.g . CWVC-3 CWVC-2L CWVC-450 CWVC-480 ).
why us
Engineers available to service machinery oversea.
Engineers are available to be sent to freign countries to do machinery training and offer technical support
Mature technique & forerunner to process makes high quality machinery.
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb routerOur R&D team continuously upgrade the existing machines to meet the market development trend.
One year warranty for the machines except accessories.
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge
Effective customer service.
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers
Our mission Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
