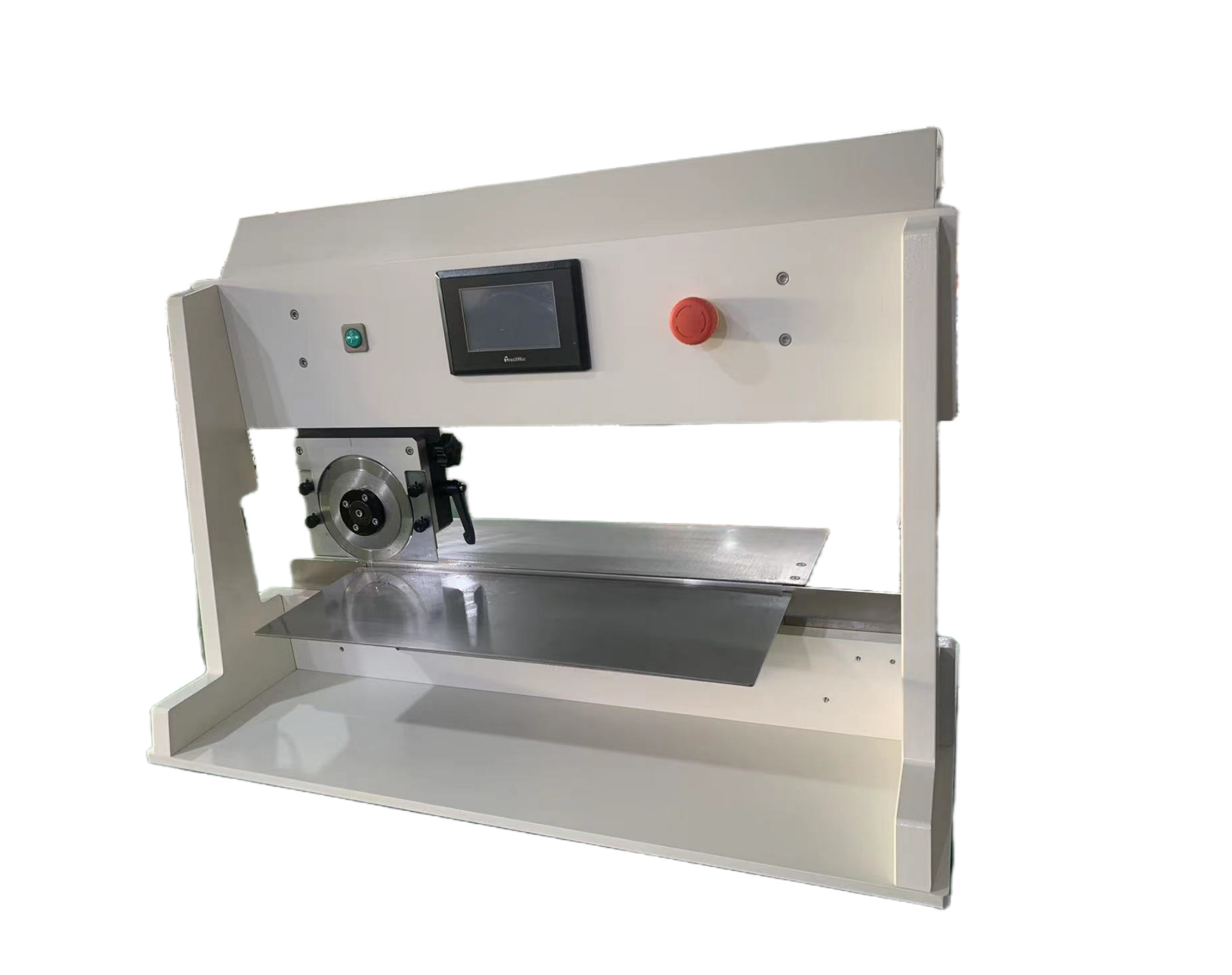

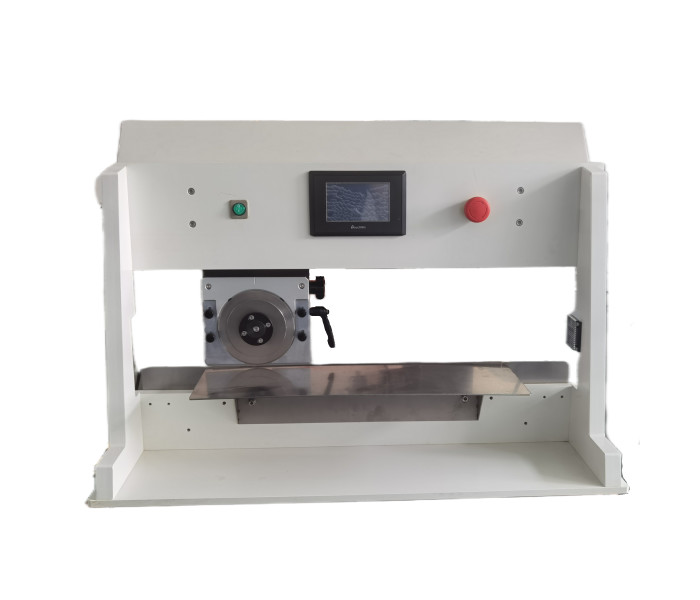

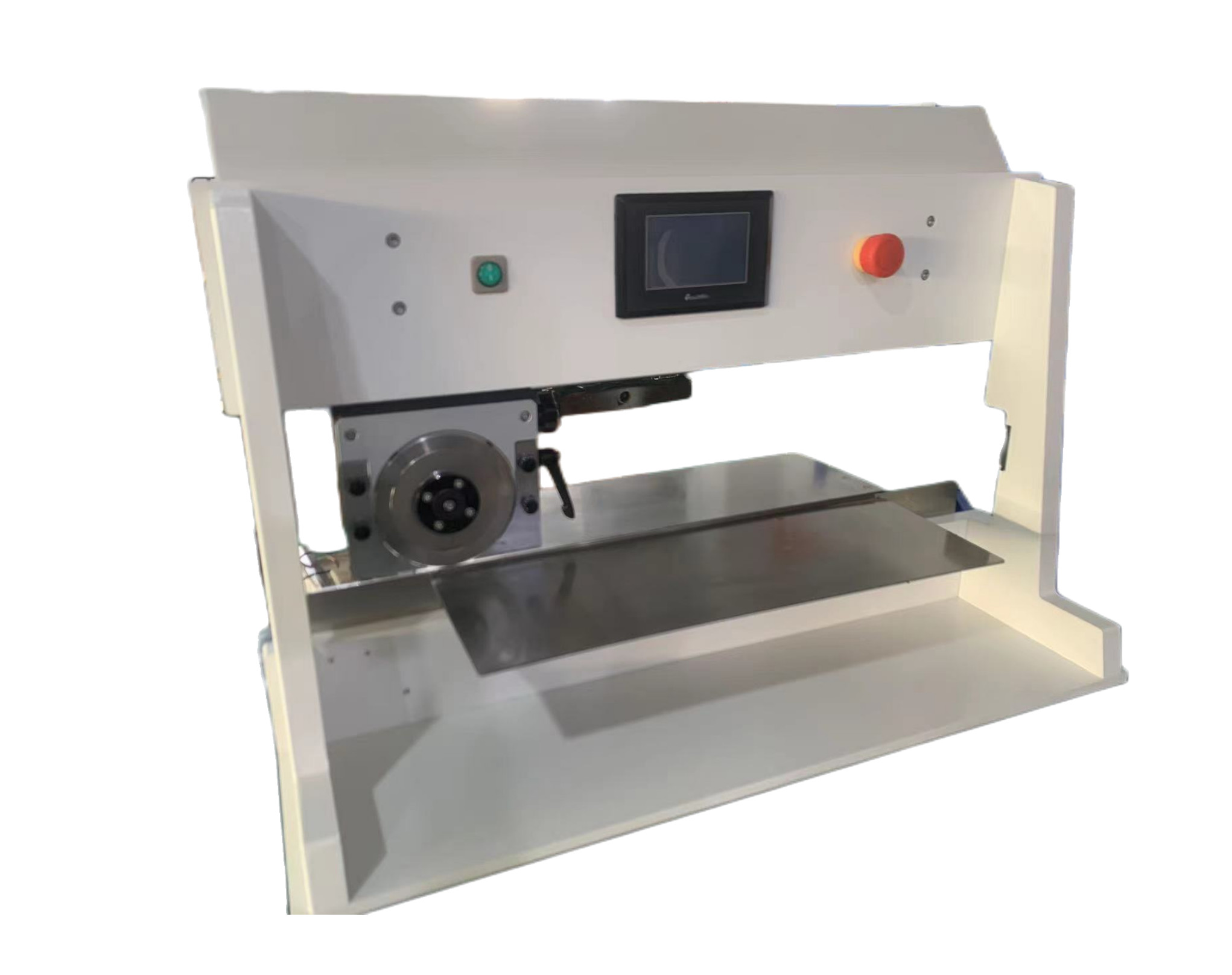

Unloading PCB Separator Machine with LCD Display,PCB Separator
| Model | YS-805B |
| Voltage | 220 V / 110V |
| Power | 250W |
| Max cutting length | 630mm |
| Board thickness | from 0.2 to 3.2mm |
| V-cut thickness | from 0.2 to 2mm |
| Weight | 70KG |
| Size | L940xW550xH460mm |
| Speed | 300mm/s or 500mm/s |
| Warranty | 3 years |
1. Desktop single bench cutting machine, Speeds of up to 100mm/s,
positioning speed 500mm/s;
2. Cut continuouslwithout interrution durinloadinand y p g g
unloading;
3. High quality shaft system allows the system to quickly ramp,
reduce the period of time, Improve productivity, maintaining high
precision;
4. Available board thickness: 0-3.2mm . V-groove thickness:0-2mm;
5. Pre-set the cutting start and end point to well control the cutting length;
6. The blades are sharp and indurable. And they can be sharpened between 7 and 10 times;
7. Minimize the shearing stress to avoid micro-cracks of the solder joints;
Packaging Details: Wooden case
Port : Shenzhen
Lead Time : 1-2 days after getting your payment
After the completion of the machine, the fuselage shall be protected and wrapped with plastic film to avoid damage caused by collision of goods during export transportation.
We will measure the size of the machine customized by the customer, then customize a wooden box, so that the machine and the size of the wooden box are just right.
After the customization of wooden boxes, we use wooden boxes for export, wooden boxes are strong, suitable for export machinery and other heavy objects, to protect them.
It can cut v-cut pcb board to units. Suitable for pcb, aluminum pcb, fiber panel.
Available PCB thickness: from 0.2mm to 3.2 mm
Available V-cut thickness: from 0.2mm to 2.0mm
Maximum board length: Any length pcb is available, we have different models machine according to your pcb length.
ChuangWei Electronic Equipment Manufactory
For 16 years we have been desiging different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.
Up to now ChuangWei have became one of the biggest PCB separator production base in China.
why us
Engineers available to service machinery oversea.
Engineers are available to be sent to freign countries to do machinery training and offer technical support
Mature technique & forerunner to process makes high quality machinery.
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb routerOur R&D team continuously upgrade the existing machines to meet the market development trend.
One year warranty for the machines except accessories.
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge
Effective customer service.
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers
Our mission Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
