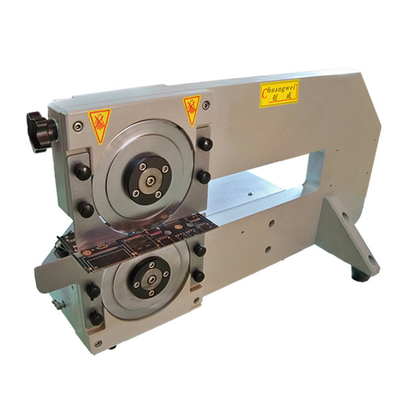

330mm Pcb Cutter Depanel Cutting Pre-scored Printed Circle Boards
SMTfly-1 separates small amounts and prototype series of PCBs fast and economically. The circular blades and guides made out of special steel ensure a long durability. The compact and stable aluminium frame requires only a minimum of space. The PCB is shoved manually between the circular blades and is thereby separated.
Features :
1. The machine is used to separate "v" groove base board , compared to the traditional hand-breaking score board , not only greatly improve production efficiency and product quality have a better guarantee.
2. Simple operation, fast speed , ensuring base board electronic components are not damaged by the movement.
3. Straight knife slip speed can manual control , V groove guide device adjustable height , more quickly adapt to different thickness of the base board .
4. Reduce the internal stress generated by the PCB Separator to avoid cracking of tin .
5. Round knife can multiple times turn mill and reuse
Package: plywood case (free)
Specification :
| Pcb Separator machine Size : | 420mm x 280mm x 400 mm |
| The Longest Minimize : | 330mm |
| Minimize Speed : | 0-40mm/s |
| cutting thickness : | 1.0-3.5mm |
| Pcb Separator Machine Weight : | 70Kg |
please note:
round knives will often be sufficient for separating uncomplicated panels or cutting off margin waste. However, for high-grade boards with components right up to the dividing line, better quality can be achieved if the separation is carried out simultaneously with linear knives along the whole length of the board
why us
Engineers available to service machinery oversea.
Engineers are available to be sent to freign countries to do machinery training and offer technical support
Mature technique & forerunner to process makes high quality machinery.
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb routerOur R&D team continuously upgrade the existing machines to meet the market development trend.
One year warranty for the machines except accessories.
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge
