PCB Separator Machine With Clean And Burr-Free Separation With Hand-Operated
CE Appreoved Pcb Depanelizer Operated By Hands

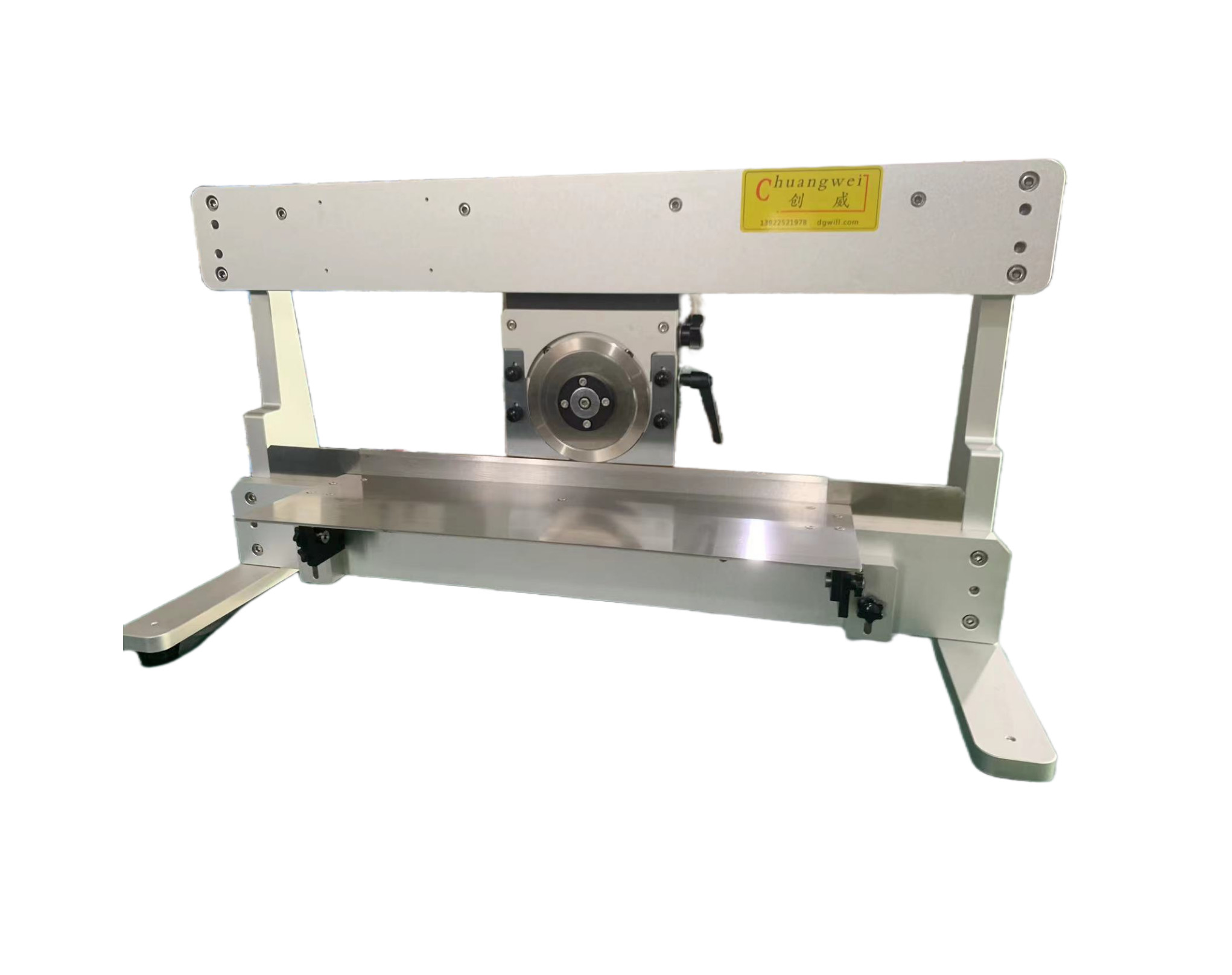

CWV-1M separates both small and large pre-scored PCBs .
The table and the rest can be continuously adjusted to the most suitable working position .
The slit between the linear blade and the rest can be adjusted to ensure that the side strips fall through and are sorted out.

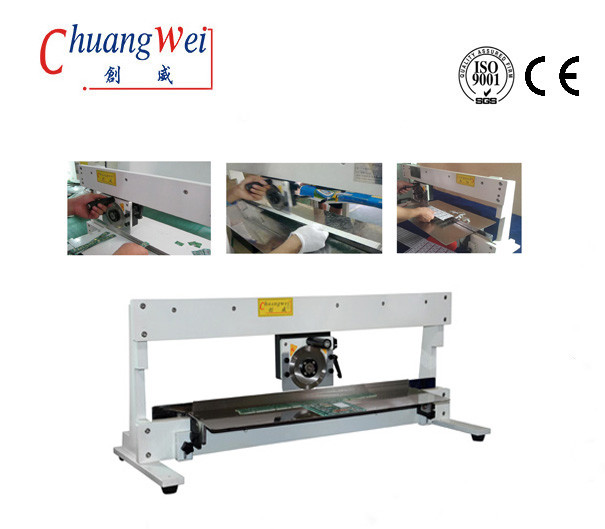

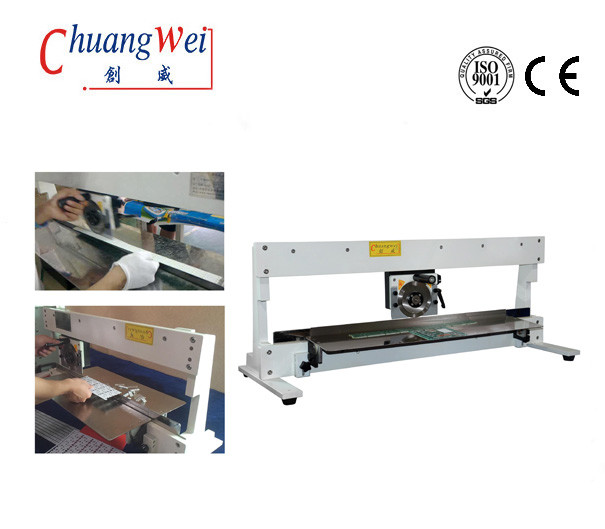

The PCB is placed with its pre-scored groove onto the linear blade and the circular blade is then drawn by hand across the PCB .
The distance between the upper guide and the linear blade is adjustable to ensure that the PCB is only separated in the pre-scored groove .
The pre-scored grooves can be interrupted by any number of cutouts .
If components project above the groove , the linear blade needs to be omited .
In such a case , please contact us .
CWV-1M PCB Depaneler Features :

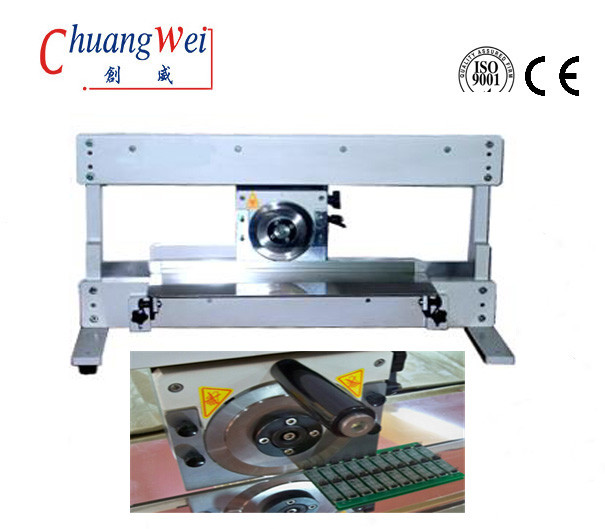

Circular blade cuts against linear blade to ensure clean , burr-free processing without board stress Available with max .
cut length of 460 mm ( 18.1" ) or 600 mm ( 24" )
Depanels PCBs with components up to 1 mm from the score line
Quick-lock blade for easy board thickness setup
Large processing table, which can be angled to allow separated PCBs to fall away from blade
Hardened tooled steel long-life blades
Shatterproof Plexiglas safety shield for circular blade
Specifications :
|
Model: |
CWV-1M720 |
|
Size: |
1027x400x436mm |
|
The Separate Size: |
720mm |
|
Minimize Speed: |
Manual |
|
Minimize Thickness: |
0.6-3.5mm |
|
Machine Weight: |
45kg |
|
Model: |
CWV-1M460 |
|
Size: |
787x400x436 mm |
|
The Separate Size: |
460mm |
|
Minimize Speed: |
Manual |
|
Minimize Thickness: |
0.6-3.5mm |
|
Machine Weight: |
30Kg |
Competitive Advantage :
1. CWV-1M Pcb depanelizer original manufacturers, price concessions
2. Day technical support services
3. Limit the handling of complaints, half an hour back to customers
4. Depanel Experts, the provision of professional PCB sub-programme
Please note :
round knives will often be sufficient for separating uncomplicated panels or cutting off margin waste.
However , for high-grade boards with components right up to the dividing line, better quality can be achieved if the separation is carried out simultaneously with linear knives along the whole length of the board (e.g. CWVC-3 CWVC-2L CWVC-450 CWVC-480).
