Manual PCB Separator Machine With Circular And Linear Blade High Speed Steel

 Manual Pcb Depanel With One Circular And One Linear Blade

PCB Separator Machine With Circular And Linear Blade High Speed Steel

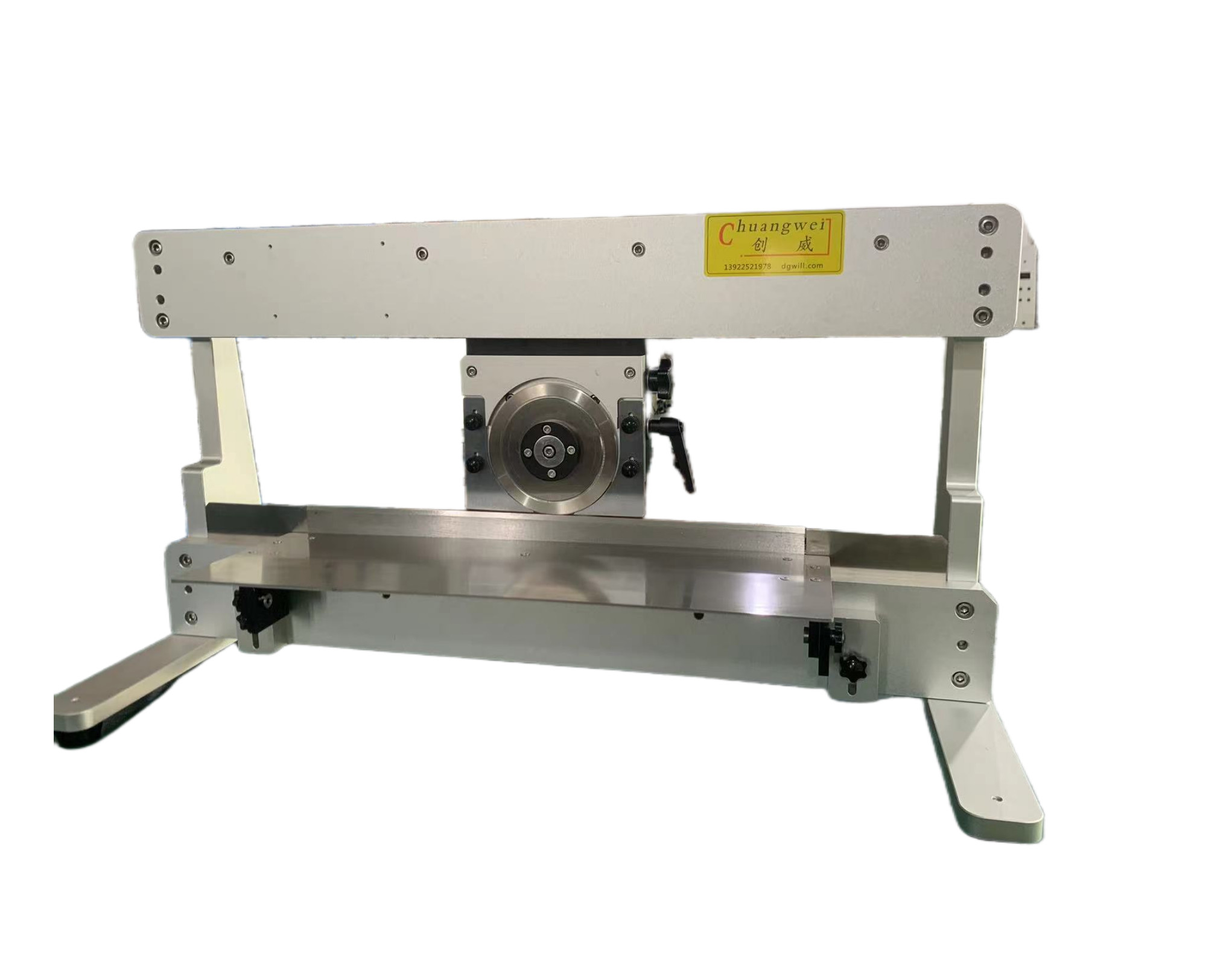

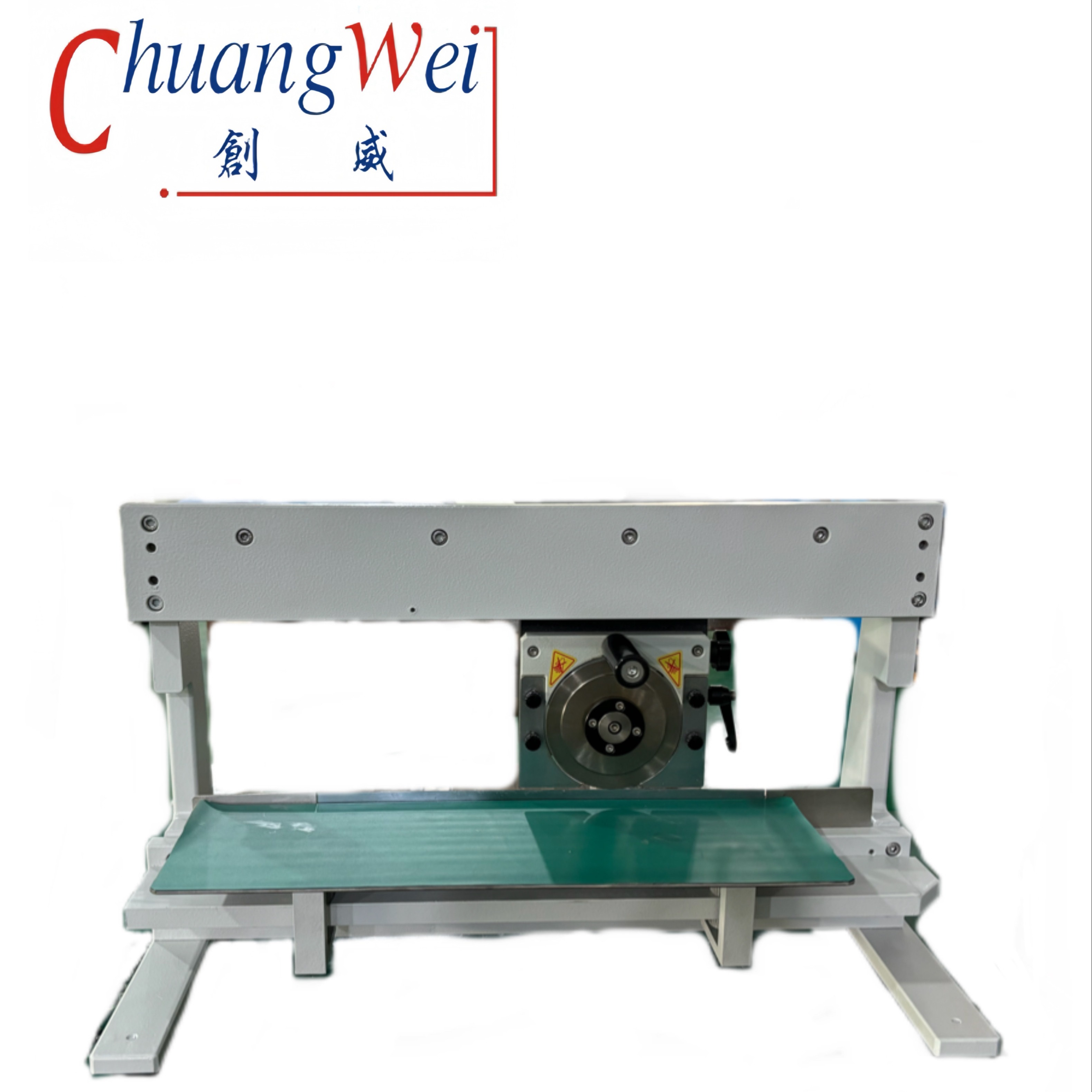

1. CWV-1M  Fast,  Accurate, Economical PCB Separation for Panels up to 24" Long

2. The CWV-1M precision depaneler combines a topside circular cutter with a below-board linear knife for smooth, burr-free separation of PCBs along the scoring groove.

3. The design of the CWV-1M eliminates stress on the board and the components during the separation process, preventing post-breakout-related board, component, and solder joint defects even when components are located as close as 1 mm to the scoring line.

4. CWV-1M can be used with panels that are v-scored in the X direction or X & Y directions and PCB thicknesses from 0.8 mm to 3.0 mm. The large processing table can be angled to permit processed boards to fall away.

5. This low-maintenance PCB separator requires no power or air for $0 utility costs and the ability to use the machine anywhere in the facility. Sturdy, heavy-duty design.  A shatterproof Plexiglas safety shield protects the operator from the cutting blade.

CWV-1M PCB Depaneler Features :

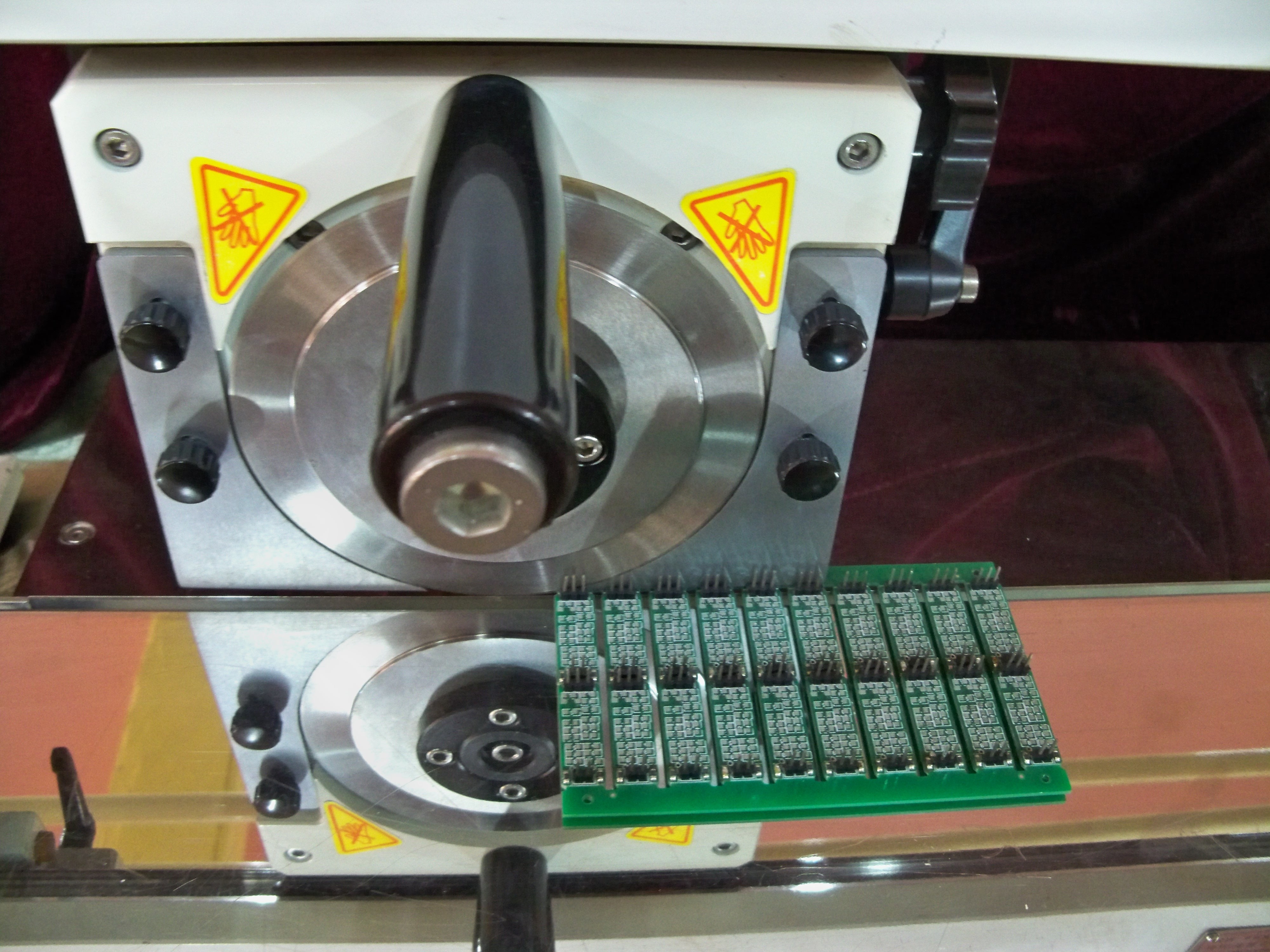

• The circular blade cuts against the linear blade to ensure clean,  burr-free processing without board stress
• Available with max. cut length of 460 mm (18.1") or 600 mm (24")
• Depanels PCBs with components up to 1 mm from the scoreline
• Quick-lock blade for easy board thickness setup
• Large processing table, which can be angled to allow separated PCBs to fall away from the blade
• Hardened tooled steel long-life blades
• Shatterproof Plexiglas safety shield for circular blade

Specifications :

Competitive Advantage:

1. CWV-1M Pcb depanelizer original manufacturers, price concessions

2. Day technical support services

3. Limit the handling of complaints, half an hour back to customers

4. Depanel Experts, the provision of professional PCB sub-program

Our Service:

A. Pre-consultation: provides professional SMT solutions for the full line;

B. Factory Warranty: One-year warranty factory service;

C. Installation: On-site installation and commissioning, to ensure smooth production;

D. Technical Training: provides professional training from level 1 to level 3;

E. Technical Support: provides 7 days * 24 hours technical support;

F. Software Upgrade: offer lifetime free software upgrades for all products.
