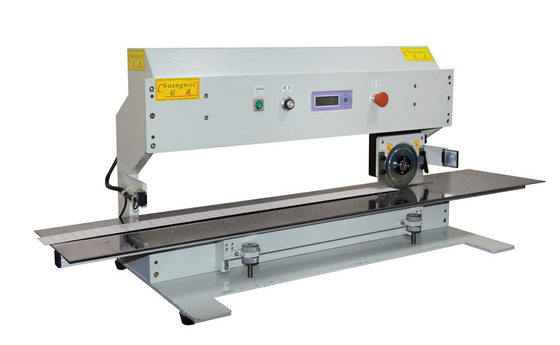

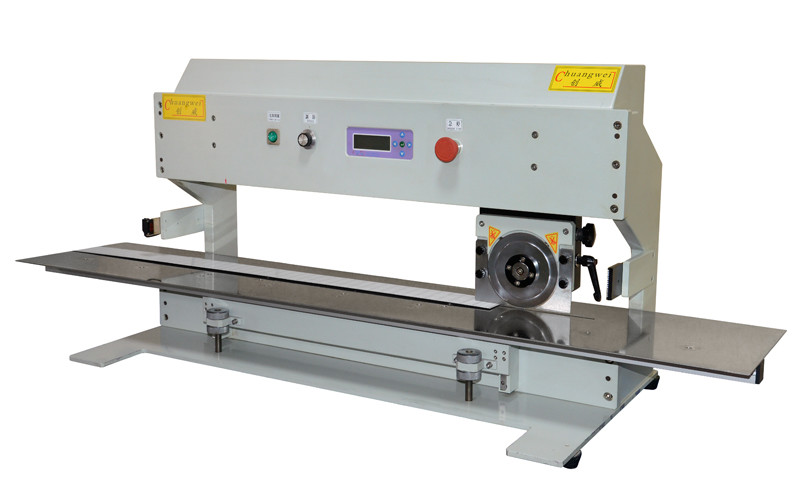

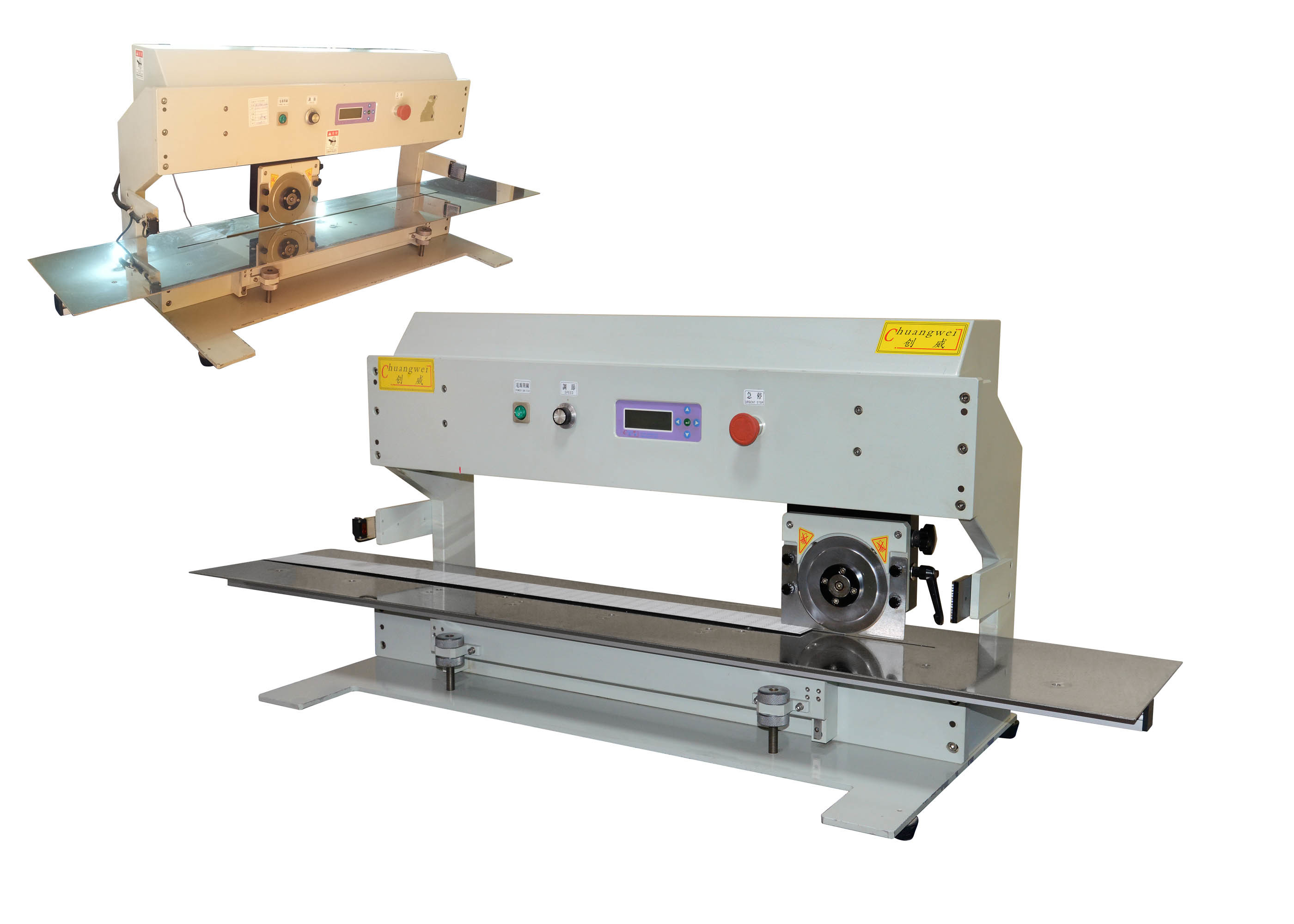

PCB separator
1.Operator foolproof
2.Infrared protection
3.Calibration Blade Set
4.High efficiency
Detailed Product Description:
1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)
2. Mold make of SKD-11 Steel,Blade is SKD-9(From Japan),Rigorous Job!
Specification:
|
Model |
CWV-1A |
|
PCB Cutting Length (mm) |
600 |
|
Cutting Speed (mm/s) |
100/200/300/500 |
|
Cutting Thickness (mm) |
0.6~3.5 |
|
Power Supply (V) |
110/220 |
|
Size (mm) |
770*510*450 |
|
Weight (Kg) |
55 |
|
Blade Hardness (HB) |
540~567 |
|
Blade Hardness (HRC) |
60~63 |
|
Blade working life for metal (Year) |
0.5 |
|
Blade working life for PCB (Year) |
1 |
|
Guarantee (Year) |
1 |
|
Delivery (Day) |
1 |
|
Min. Order (Set) |
1 |
|
Ability (Set) |
1000 |
Technical characteristics:
1. Structural precision, the load evenly, to eliminate internal stress
2. Safe, easy to operate
3. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)
Feature:
1.Separate pre-scored PCB assembly without stress on either PCB or component.
2.One touch programming of cut length with digital display.
3.Separating speed is adjusted by a rotary knob.
4.Handle Intermittent scoring or cut-outs.
5.Board with projected component can be cut precisely.
6.Large stainless steel platform on both side of cutting lade prevents board wobble and table height and angle are adjustable.
7.Optional PCB conveyor belt to remove finished board.
8.Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out.
9.three eletric eye,1.2m platform.
Our Advantage :
1. Pcb depanelizer original manufacturers, price concessions
2.Promise day technical support services
3.Limit the handling of complaints, half an hour back to customers
4.Depanel Experts, the provision of professional PCB sub-programme
5.Reliable machine maker,we get Experts--15,each one got over 6 years experience,equipment quality will be satisfying.
