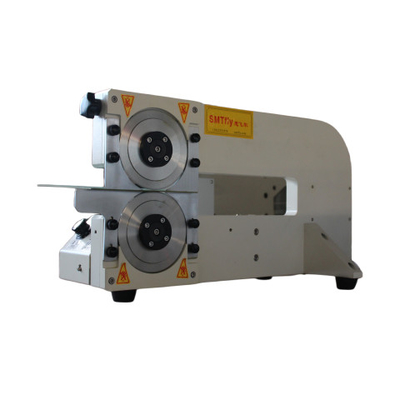

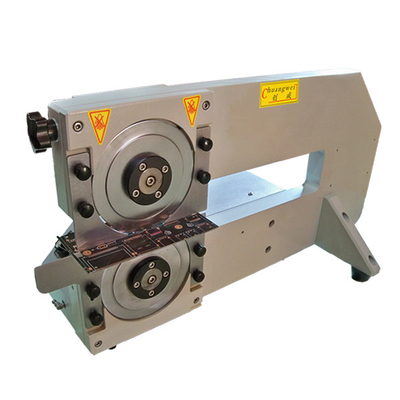

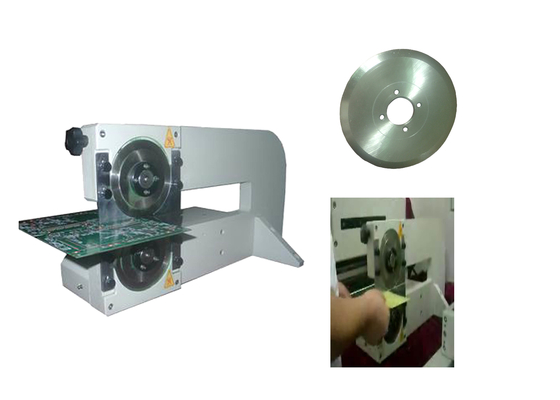

PCB V-Cutting Machine Motorized V-groove PCB Depaneler with Circular Blades
PCB Separator Mahine Motorized V-Groove PCB Depaneler With Circular Blades
Specifications
V-cut PCB separator machine
1. The price is very economical
2. Safety use and easy operation
3. Blade can be re-grinded to use
4. Desktop style
5. Convienent carrying
6. Durable blades are made of Japanese steel
V-cut PCB separator machine
1. The price is very economical
2. Safety use and easy operation
3. Blade can be re-grinded to use
4. Compact,fast,economical separator for PCBs with pre-scored groove
V-cut PCB separator machine specifications:
| Model | SMTfly-1 |
| Max. PCB separating length | 330mm |
| PCB separating thickness | 1.0-3.5mm |
| PCB separating speed | 0~400mm/sec |
| Voltage and Power | 110/220V 60W |
| PCB separator machine size | 620X 270 X 320mm |
| PCB separator machine weight | 40Kg |
V-cut PCB separator machine features:
1. The lower circular blade is driven by a motor,separates lots of PCBs without
fatigue of the operator.
2. The PCB is fed between the circular blades where it is seized, transported and
separated.
3. PCB separating speed can be adjusted by a knob.
4. Upper and lower circular blades can be re-used after regrinding.
5. Clearance between the blades is adjustable to ensure that the PCB is only fed
through the machine in the pre-scored groove.
6. The distance between v groove and components is allowed to be 0.5mm.
Our Service:
A. Pre-consultation:provides professional SMT solution for the full line;
B. Factory Warranty:One-year warranty factory service;
C. Installation:On-site installation and commissioning,to ensure smooth production;
D. Technical Training:provides professional training from level 1 to level 3;
E. Technical Support:provides 7 days * 24 hours technical support;
F. Software Upgrade:offer lifetime free software upgrades for all products.
