PCB Separator Machine Quick And Easy Operation With Precise Alignment And Cutting

1 Set
MOQ
Negotiable
Price
PCB Separator Machine Quick And Easy Operation With Precise Alignment And Cutting
Features Gallery Product Description Request A Quote
Features
Specifications
Max. Pcb Separation Length: 330mm
Name: PCB Depanelizer
MOQ: 1 Set
Payment Term: T/T , Paypal , Credit Card
Delievery Time: 3-5 Days After Receive The Payment
Shipping Way: According To Customers Requirement
Basic Infomation
Place of Origin: China
Brand Name: Chuangwei PCB depanelizer
Certification: CE GlobalMarket
Model Number: CWVC-1 PCB depanelizer
Payment & Shipping Terms
Packaging Details: Plywooden Case will be the first consideration
Delivery Time: within 3 days after receive the payment
Payment Terms: T/T, Western Union, L/C , cash
Supply Ability: 1000 Sets/Year
Product Description

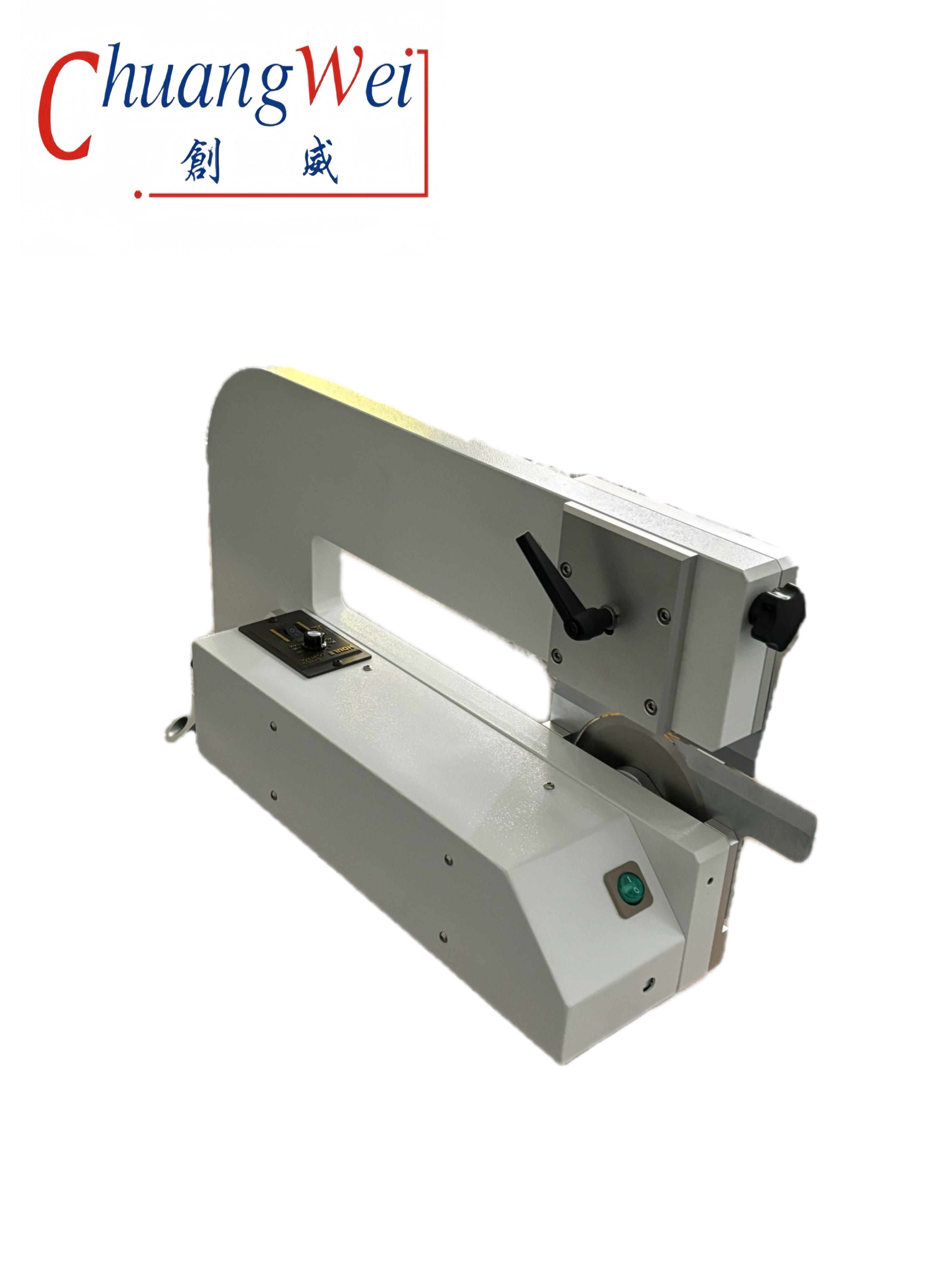

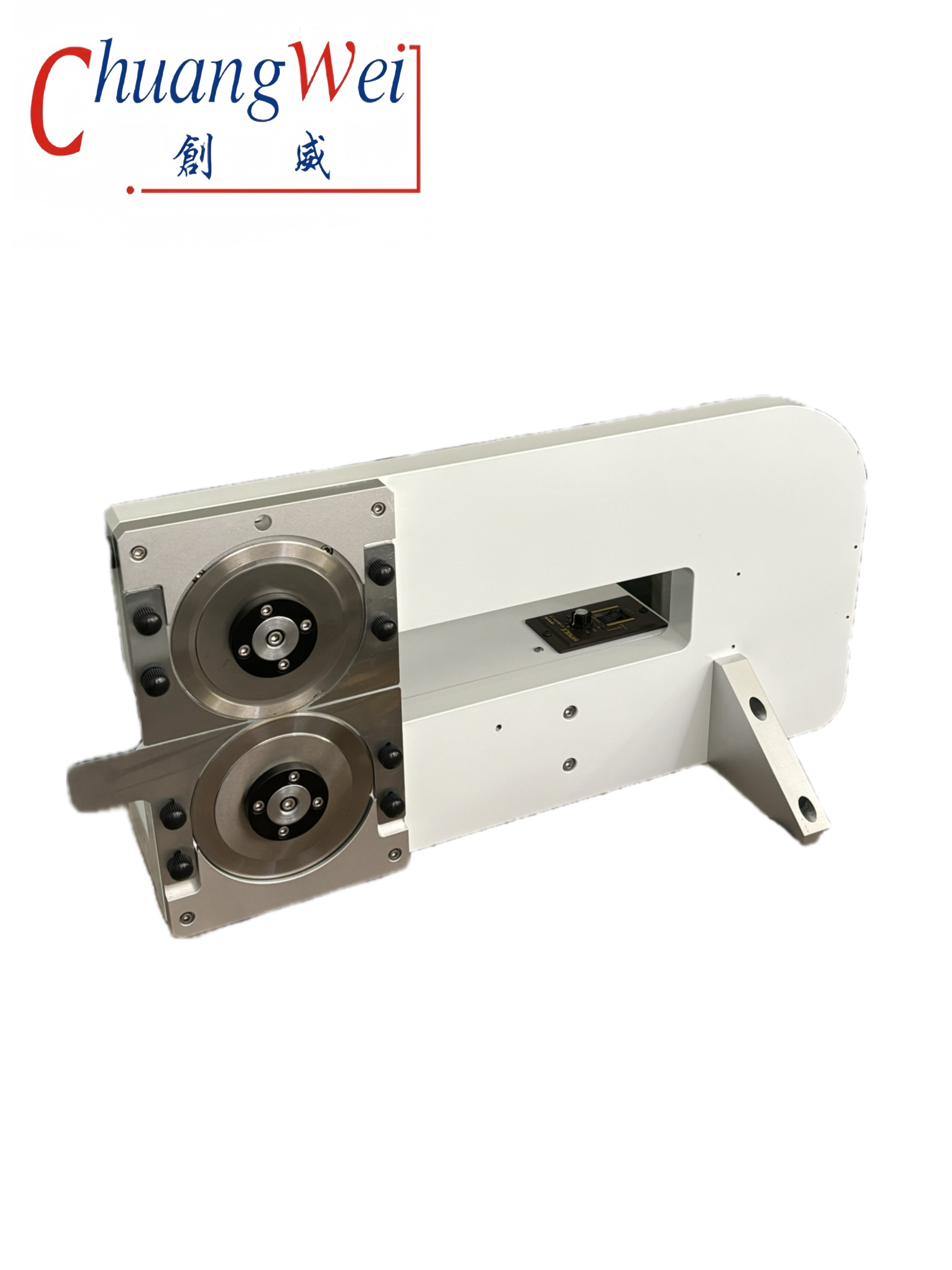

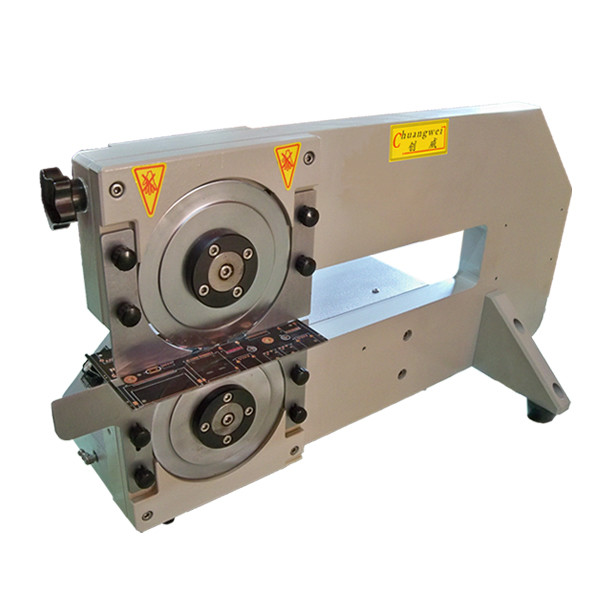

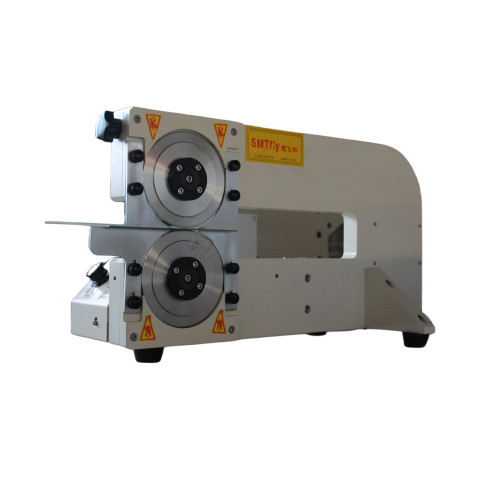

Hand Push PCB  Depanelizer In SMT Assembly Line



Give your products a cost-effective quality improvement bump with affordable CWVC-1 PCB depaneler
Affordable, dependable CWVC-1 PCB depaneler keeps pace with low through mid-volume production, providing reliable, burr-free separation with no stress to the boards or nearby components.
Operation is quick and easy. Simply align the scoring line with the extended lower guide. Lock the upper blade to the exact thickness of the PCB. The lower blade transports and cuts the board while the upper "coasting" blade acts as a guide to maintain proper alignment with the pre-scored groove.
CWVC-1 improves product quality over hand-separation of panels by eliminating the stress caused by "snapping" the boards apart. This stress often causes microcracks in solder joints and/or delamination of boards, both of which can lead to critical failures in testing or in the field.







Features :



1. Minimize the shearing stress to avoid micro-cracks of the solder jointsc.
2. Guiding device of the "V-CUT" of the PCBc.
3. Ball bearing slideways for easy setting of the PCB edge guides .
4. Ball bearing slideways for easy setting of the height of the tabletop .
5. Easy operating modes : Manual by handwheel, semi-automatic by pressing the start button or fully-automatic by continuous running .
6. Cutters can be re-grinded
7. The shape of the cutter can be customer made





Package : plywooden case (free)





Specification :



Pcb Separator machine Size : 420mm x 280mm x 400 mm
The Longest Minimize :  330mm
Minimize Speed :    0-40mm/s
cutting thickness :    1.0-3.5mm
Pcb Separator Machine Weight : 70Kg





Our Advantages :



1 . CWVC-1 Pcb separator original manufacturers, price concessions

2 . Promise day technical support services

3 . Limit the handling of complaints, half an hour back to customers

4 . Experts , the provision of professional PCB sub-programme

5 . Reliable machine maker,we get Experts--15,each one got over 6 years experience,equipment quality will be satisfying .
