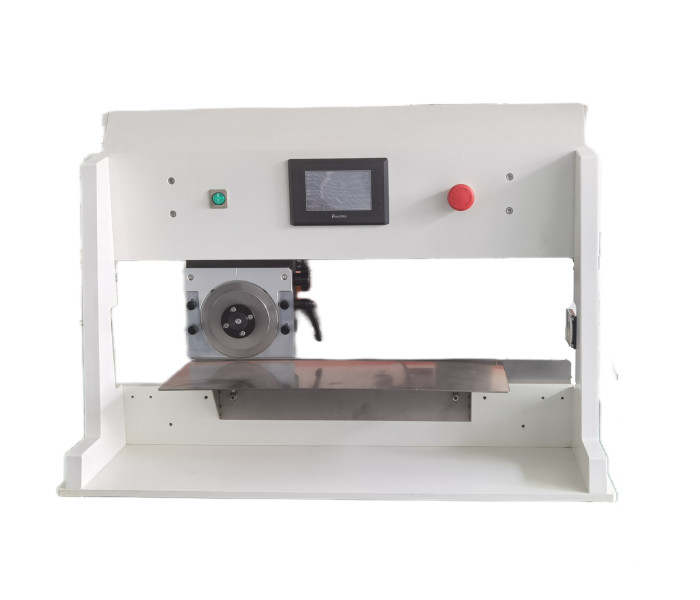

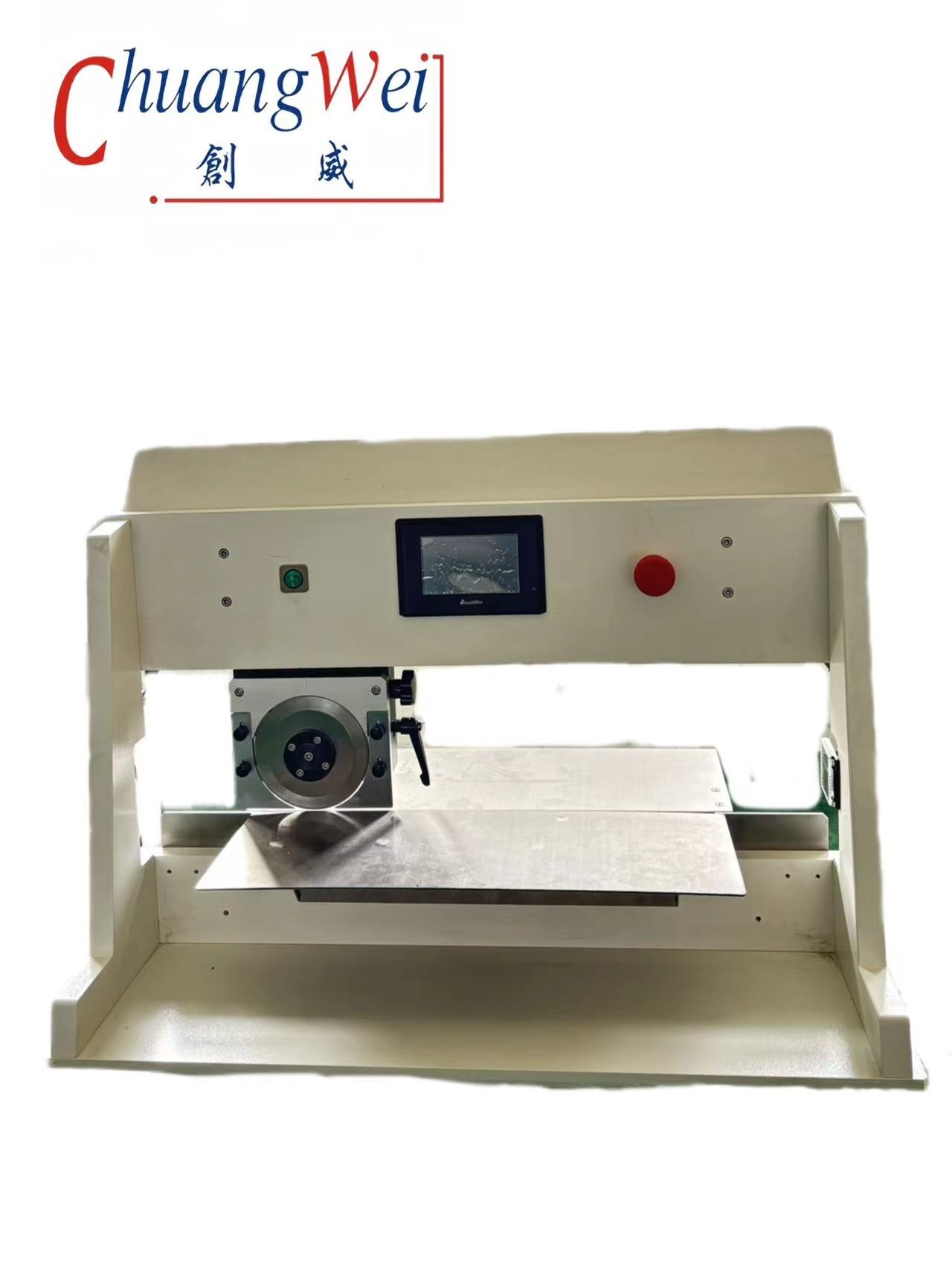

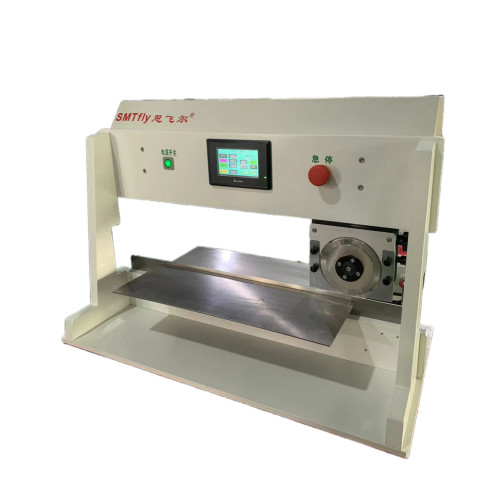

Mini Fully Automatic PCB Depaneling LCD Display With Sensor Equipment
Specification:
| Model | CWV-1A |
| Max. PCB cutting length | 460 or 600 mm(on request custom made) |
| PCB cutting thickness | 0.6-3.5 mm |
| PCB cutting speed | 100,200,300,500 mm/sec |
| Blade motion | upper circular blade moving automatically |
| Blade motive power operating mode | motor-driven |
| Power supply | 110/220v |
| PCB cutting machine size | 770*510*450mm |
| PCB cutting machine weight | 55kg |
Feature:
1. Optional PCB conveyor belt to remove finished board
2. One-touch programming of cut length with digital display
3. Separating speed is adjusted by a rotary knob
4. Handle Intermittent scoring or cut-outs
5, Board with projected components can be cut precisely
6. Separate pre-scored PCB assembly without stress on either PCB or component
7. Large stainless steel platform on both sides of the cutting blade prevents board wobble and table height and angle are adjustable
8. Clearance between circular and linear blades is adjustable to fit different groove depth and compensates for blade wear out
Competitive advantage:
1. LCD: you can adjust the blade moving trip according to your PCB length.
2. Safety sensor: Installed electronic safe sensor to protect our hands from depaneling when you put your hands near the blades, the machine stops working even though the operator steps on the pedal switch.
3. It has 4 speed positions.
4. Counter function. it can remind you of the blade-cutting times.
